8. Navigating in the apartments of "Floor 1" (in this case where the iPerTAlk Server V1 has been
inserted), following the example above, on the "Settings" tab, enable "iPerTalk" and insert the
number to call (iPerTalk ID) (e.g. 90101, 90102, 90103, etc.). By enabling the iPerTAlk parameter,
the apartment is considered as an extension in the iPerTAlk system. Depending on how the system
is structured, it may be necessary to configure a number of apartments equal to the number of
extensions to be called from the IPerCom system. All apartments configured as iPerTAlk extensions
will be displayed in the Ipercom device directory.
9. Proceed with the configuration of the door units and other IPerCom devices.
9.2 Configuration and installation sequence for integration of the iPerTAlk system into the
IPerCom system without the switch Ref. 1375/701
The following configuration steps must be followed for proper operation.
9.2.1 IPerCom system configuration
Configure the IPerCom system without connecting the iPerTAlk server.
1. Create an IPerCom configuration 2.2.0 or higher, as described in the following system manual.
2. Select the "System" tab and set the network configuration to "Manual" and then set the following
parameters:
a. Lower limit IP address: 10.10.127.2
b. Upper limit IP address: 10.10.127.254
c. Subnet Mask: 255.255.255.0
d. Default Gateway: 10.10.127.1
e. DNS 8.8.8.8
3. On the "Topology" tab create the topological tree of the system and identify a topological node for
iPerTAlk. Example: Site->Block 1->Stair 1->Floor 1.
492

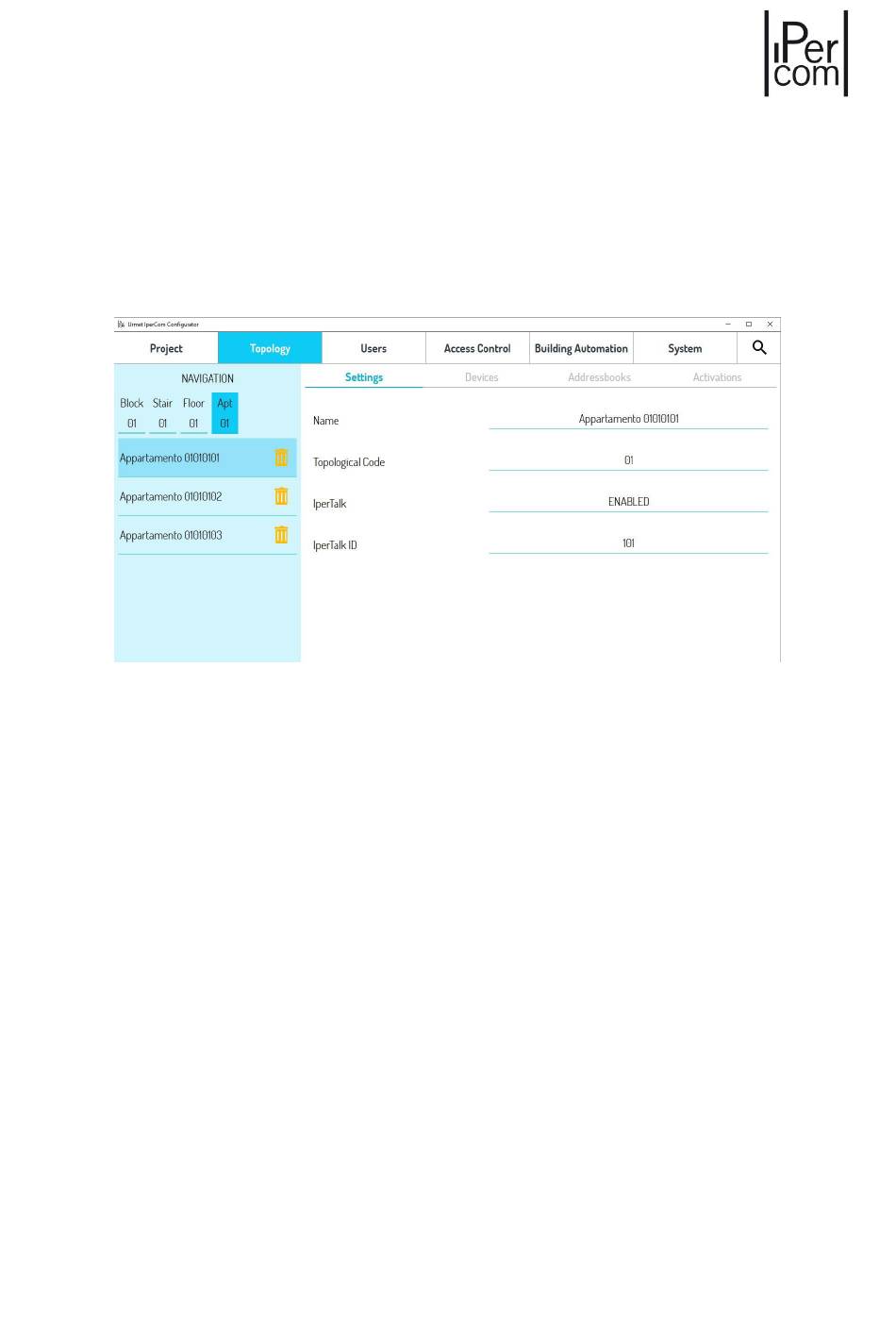

Figure 651: iPerTAlk ID configuration
MT124-032M
