urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 246

To create a new activation, press the "Add" button.
The same screen as for the creation of activations with event on Entry panel 1060/71-74-75-78 opens,
where it is possible to set all the parameters necessary to create the activation rule:
The "'Event" drop-down menu allows selecting the event to be associated to one or more Relay Actuator
outputs. The possible events on Entry panel 1060/21 are:
•
"Outgoing Call", i.e. call from the Entry Panel;
•
"Auto-on", i.e. connection from the video door phone to the camera of the Entry Panel;
• "User Recognition", i.e. passing a proximity key or door opener code associated with a user
(resident or non-resident);
•
"Door opening", i.e. opening the pedestrian door of the Entry panel,
•
"Gate opening", i.e. opening the gate/driveway of the Entry panel,
as shown in the relevant screen:
246

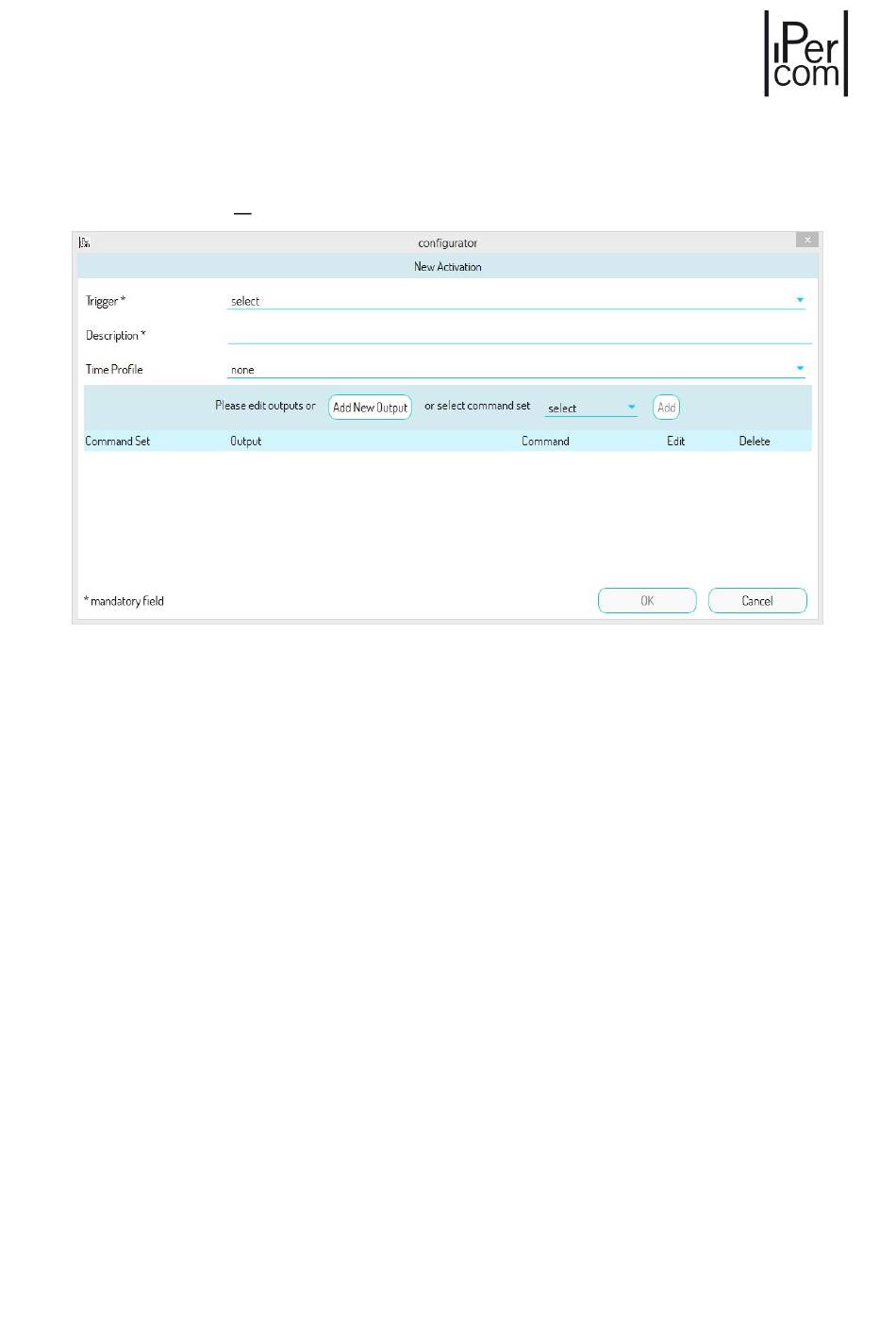

Figure 300: screen for creating an event activation
MT124-032M
