urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 507

10.6 Factory reset of the Modular Entry Panel with 1060/48
The factory reset of the Modular Entry Panel with 1060/48 can be done via the Outdoor Audio and Video IP
Station 1060/48 or via the Display Module 1168/1 (below):

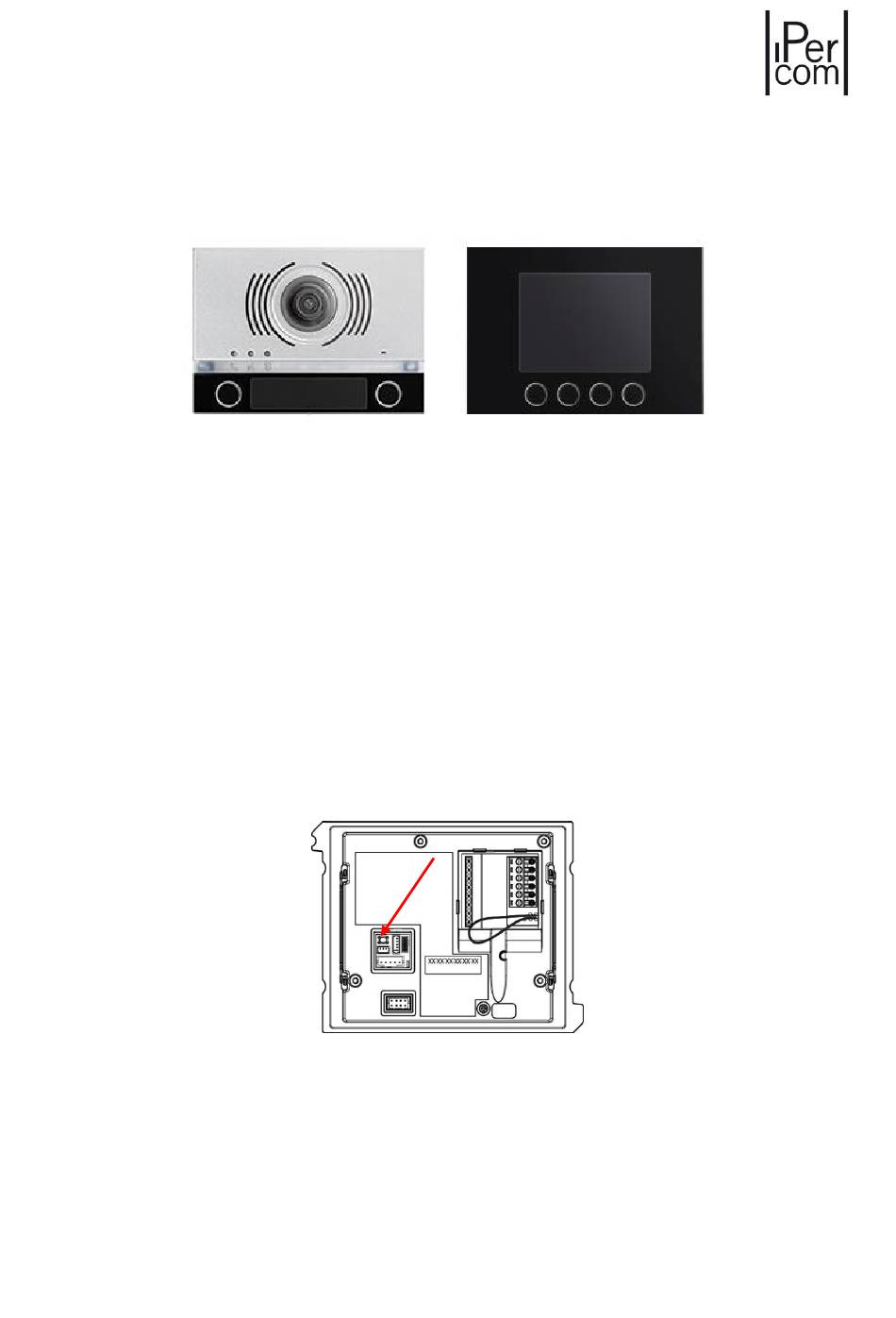

Figure 675: Audio Video IP outdoor station (on the left) and Display Module (on the right)
10.6.1 Factory reset via the Outdoor Audio and Video IP Station 1060/48
There are 3 ways to perform a factory reset and they are listed below.
Mode 1: factory reset with reset button (Modular Entry Panel with 1060/48 ON)
Press the "RESET" button placed on the back of the Outdoor Audio and Video IP Station 1060/48 5 times
within 10 seconds (indicated in the figure with the red arrow). Each time the button is pressed feedback
tone is sent: the button must be pressed again immediately after the feedback tone. If the procedure has
been carried out correctly, the orange LEDs on the front panel will flash quickly for 6 times. After about 1
minute, the white LEDs illuminating name tags and buttons start flashing: this means that the factory reset
operation has been carried out correctly.
Figure 676: rear view of Outdoor Audio and Video IP Station 1060/48
Mode 2: factory reset with call button (Modular Entry Panel with 1060/48 OFF)
Press the call button on the right (indicated in the figure with the red circle) of the Outdoor Audio and Video
IP Station 1060/48, turn on the device by continuing to hold down the relevant button until the orange
LEDs begin to flash 6 times. You can now release the call button. After about 1 minute, the white LEDs
MT124-032M 507
