7.1.2.2 Adding a Lift Interface 1060/37 on a stair node
Add a Lift Interface 1060/37 to control the lift control panels in order to enable the ascent only to the
defined floors according to the apartment called. The interfacing to the lift control units is typically made by
changing the status of one or more inputs of these control panels through control relays.
The IPerCom system allows you to choose (via the "Mode" drop-down menu) among 3 modes of use for the
lift interface:
•
"Lift interface",
•
"Lift interface-RS485",
•
"Relay Actuator Mode".
7.1.2.2.1 Lift interface mode
The Lift Interface type allows you to associate relays to floors or apartments in the unit, it is possible to
associate a relay to each floor (for example it is possible to associate a relay to each floor).
It is necessary to define the operating mode of the Lift Interface:
•
"Floor",
•
"Apartment".
The setting is made for each individual stair, as shown in the following figure. The first mode allows you to
associate the interface commands according to the floor of the apartment: in this case several apartments
on the same floor will share the same relay activation layout. The second mode allows you to associate a
different configuration of commands for every single apartment in the unit: it is useful if there are several
apartments on the same floor, each with its own dedicated lift.
MT124-032M

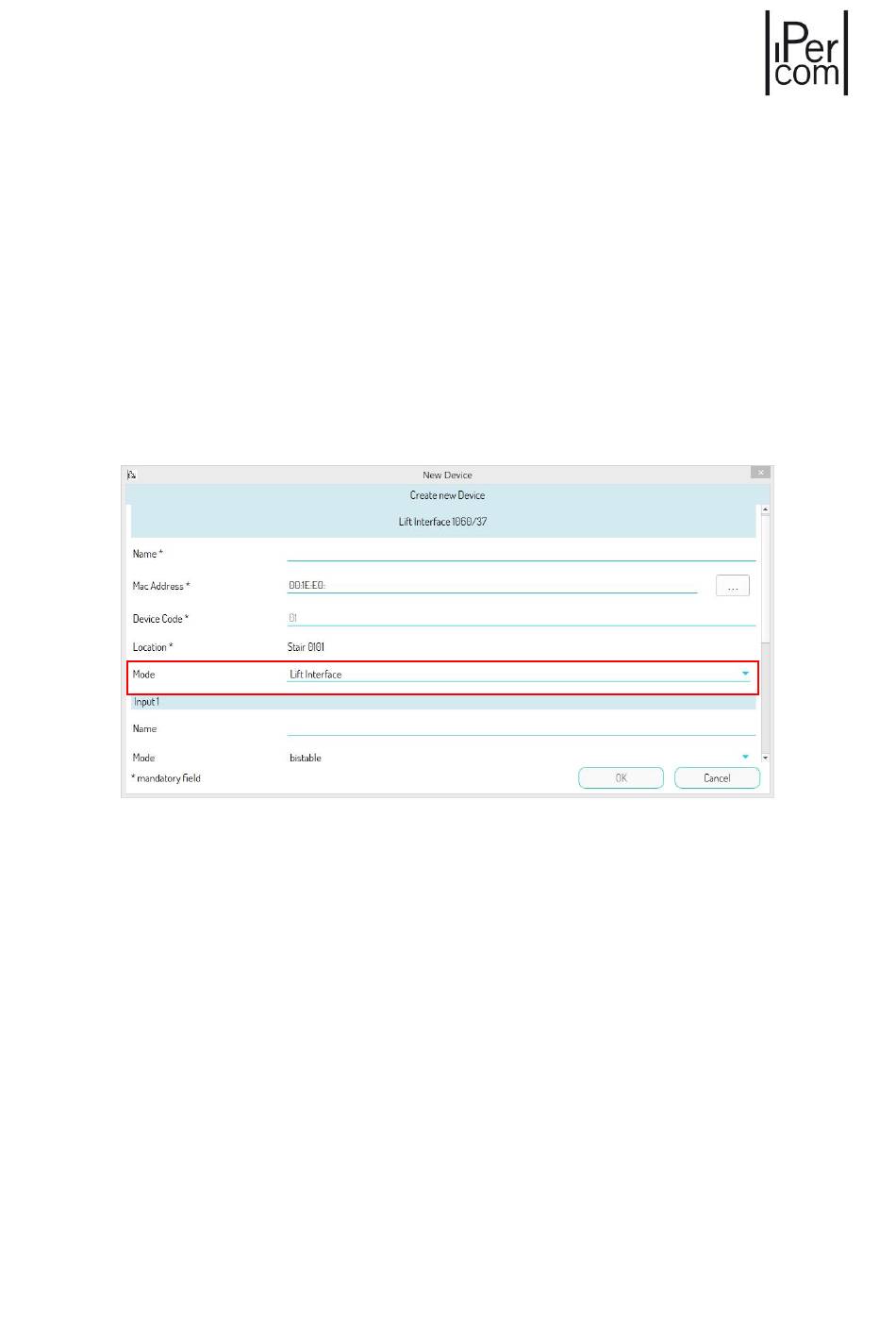

Figure 235: Lift Interface configuration - Selection of use mode
