urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 508

illuminating name tags and buttons start flashing: this means that the factory reset operation has been
carried out correctly.

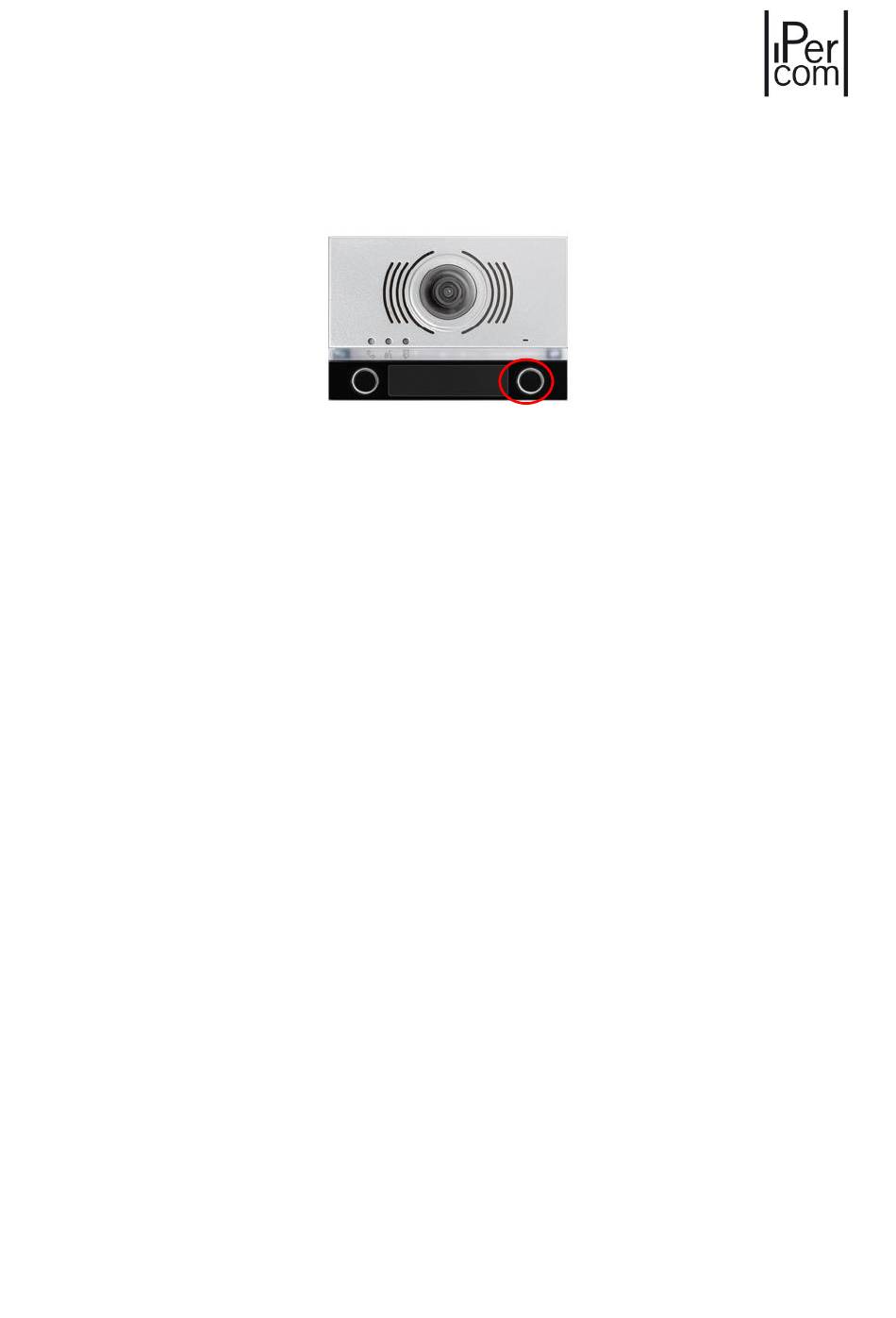

Figure 677: front view of Outdoor Audio and Video IP Station 1060/48
Mode 3: factory reset with call button and entrance hall button (Modular Entry Panel with 1060/48 ON)
Press the call button on the right of the Outdoor Audio and Video IP Station 1060/48 (the same as in the
previous mode) and at the same time the entrance hall button (for about 20s) until the orange LEDs start
flashing 6 times. You can now release the call button and the entrance hall button. After about 1 minute,
the white LEDs illuminating name tags and buttons start flashing: this means that the factory reset
operation has been carried out correctly.
10.6.2 Factory reset via the Display Module 1168/1
There are 2 ways to perform a factory reset and they are listed below.
Mode 1: press the X-9 buttons (Modular Entry Panel with 1060/48 ON)
Quickly press the X-9 buttons in sequence using the Numeric Keypad Module 1168/46. The Display Module
1168/1 shows a screen page where it is necessary to enter the Urmet or system administrator password
(depending on whether the system is unlocked or locked). Once the correct password has been entered,
confirm by pressing the soft-touch button at the green check mark. At this point, press the soft-touch
button in correspondence of the trash icon and confirm always with the green check mark: the orange LEDs
of the Outdoor Audio and Video IP Station 1060/48 start flashing 6 times. The Display Module 1168/1 will
show the Factory Reset indication at the beginning of the procedure and after about 1 minute the Not
Configured indication (at the end of the procedure). At the end of the procedure, the white LEDs
illuminating the name tags and buttons of Outdoor Audio and Video IP Station 1060/48 start flashing.
