Audio video external unit IP Ref. 1060/48

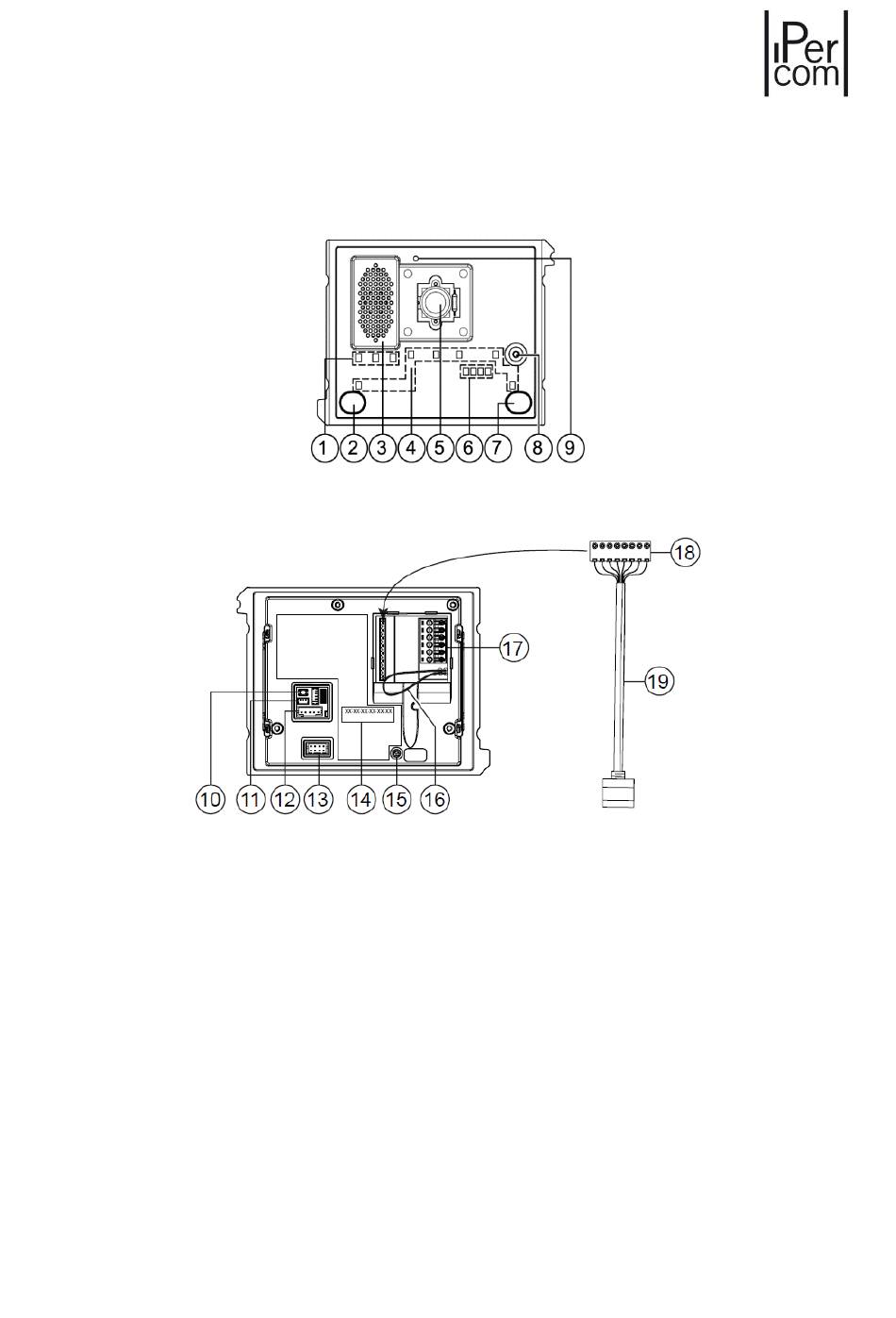

Structure
1. DDA LED
2. "USER 0" calling button
3. Speaker
4. Name tag and button light LED
5. Camera
6. Camera lighting LED
7. "USER 1" calling button
8. Microphone
9. Dusk sensor for automatically switching on the name tag lighting
10. Reboot/reset to default settings button (RESET)
11. Connector for hearing aid coil (ILA) Ref. 1168/48
12. USB connector for connecting to display module 1168/1
13. Module connection wire connector (OUT)
14. Label with MAC ADDRESS of the device
15. Trimmer for adjusting speaker volume (RV1)
16. Jumper provided to connect the door state sensor
