Where Settings You Need Are Defined in Radvision MCU-30 Software

© Polycom, Inc.
The screens below provide examples of where to locate the information you need to set
up Radvision MCUs in Polycom ReadiManager LX100. These sample screens are
taken from the Radvision MCU-30 software. If you have a different Radvision MCU, the
screens may be different.
IP Address Defined for Radvision MCU-30
As shown in the figure below, the Addressing tab of the MCU-30 Board screen contains
the IP address you need to enter in the MCU equipment record in Polycom
ReadiManager LX100.

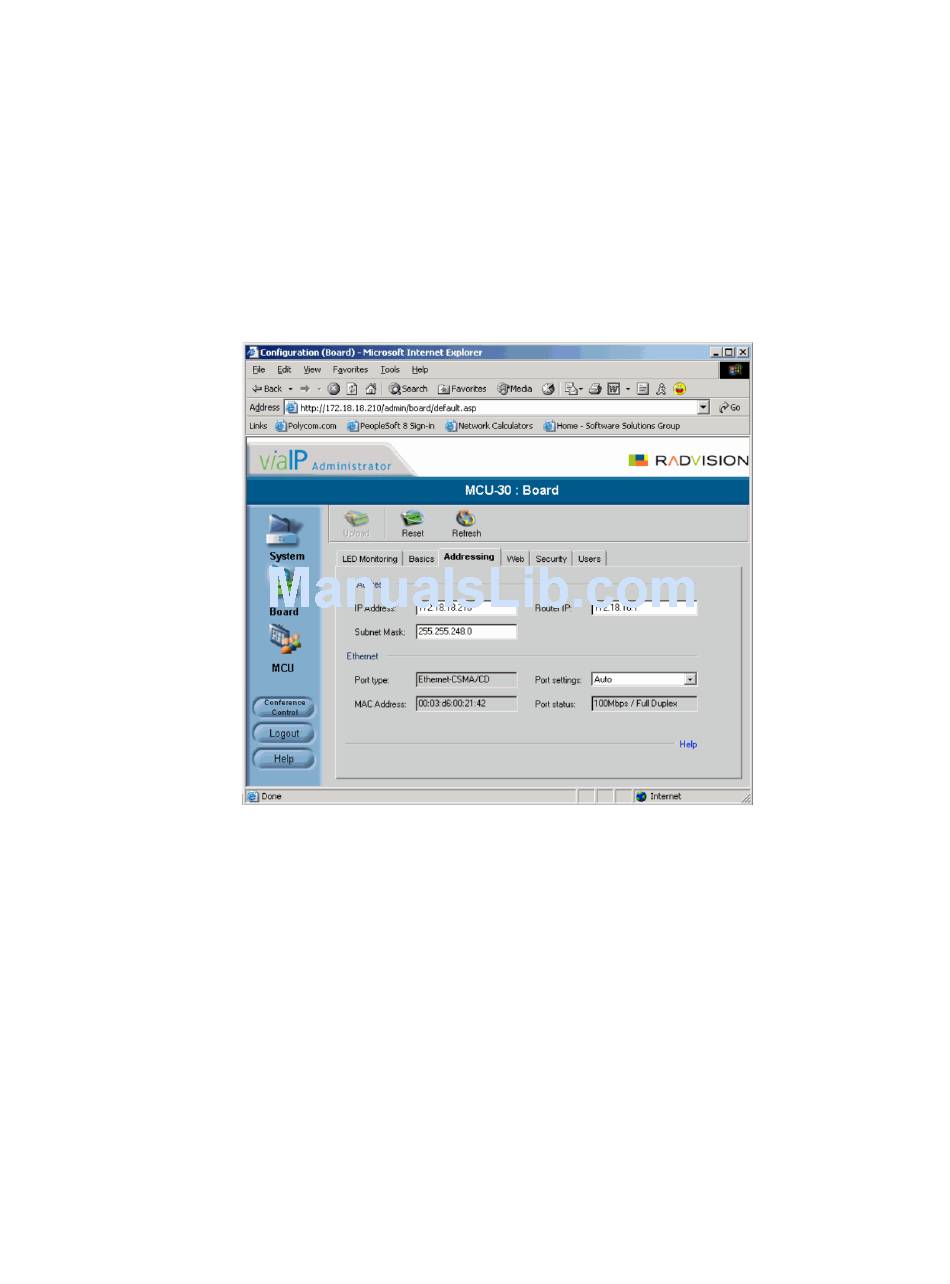

Figure 5-7. Radvision MCU-30 Board screen with IP address
List of Prefixes for Radvision MCU-30
As shown in the figure below, the Services tab of the MCU-30: MCU screen lists the
services defined for this MCU. For each service you want to make available, create an
H.323 service record in Polycom ReadiManager LX100. This Services list summarizes
much of the information you will need, such as Prefix and Description (Service Name).
To see additional detail, drill-down into individual services by double-clicking on an item
in the list. Figure 5-8 shows the result of double-clicking on a service.
