Polycom ReadiManagerLX100 Administrator's Manual page 94

Polycom ReadiManager LX100 Scheduling Administrator's Guide
86

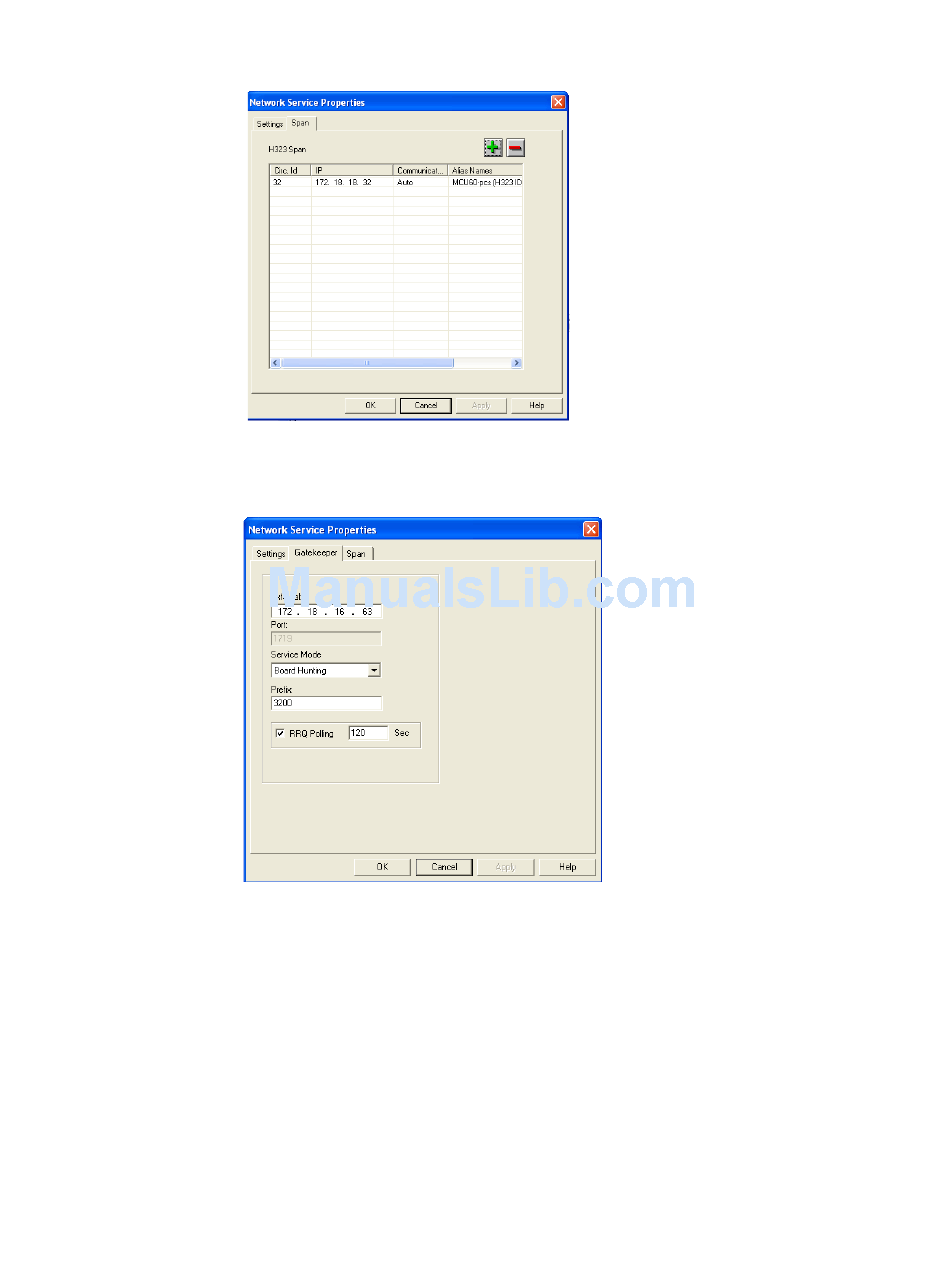

Figure 5-3. Span tab of the Network Service Properties dialog box in MGC Manager
The Gatekeeper tab becomes available when you check the External Gatekeeper box
on the Settings tab.
Figure 5-4. Network Services Properties dialog box in MGC Manager
H.320 (ISDN) settings in MGC Manager
The next two figures show where you can look up details about H.320 (ISDN) services
in MGC Manager. As shown in the figure below, expand the specific MGC you are
working with, and then expand MCU Configuration, Network Services, and ISDN.
To see the details for each ISDN connection, right-click on it and choose Properties.
The tabs in the Properties dialog box include the information you need to define in the
Setting Up Services
