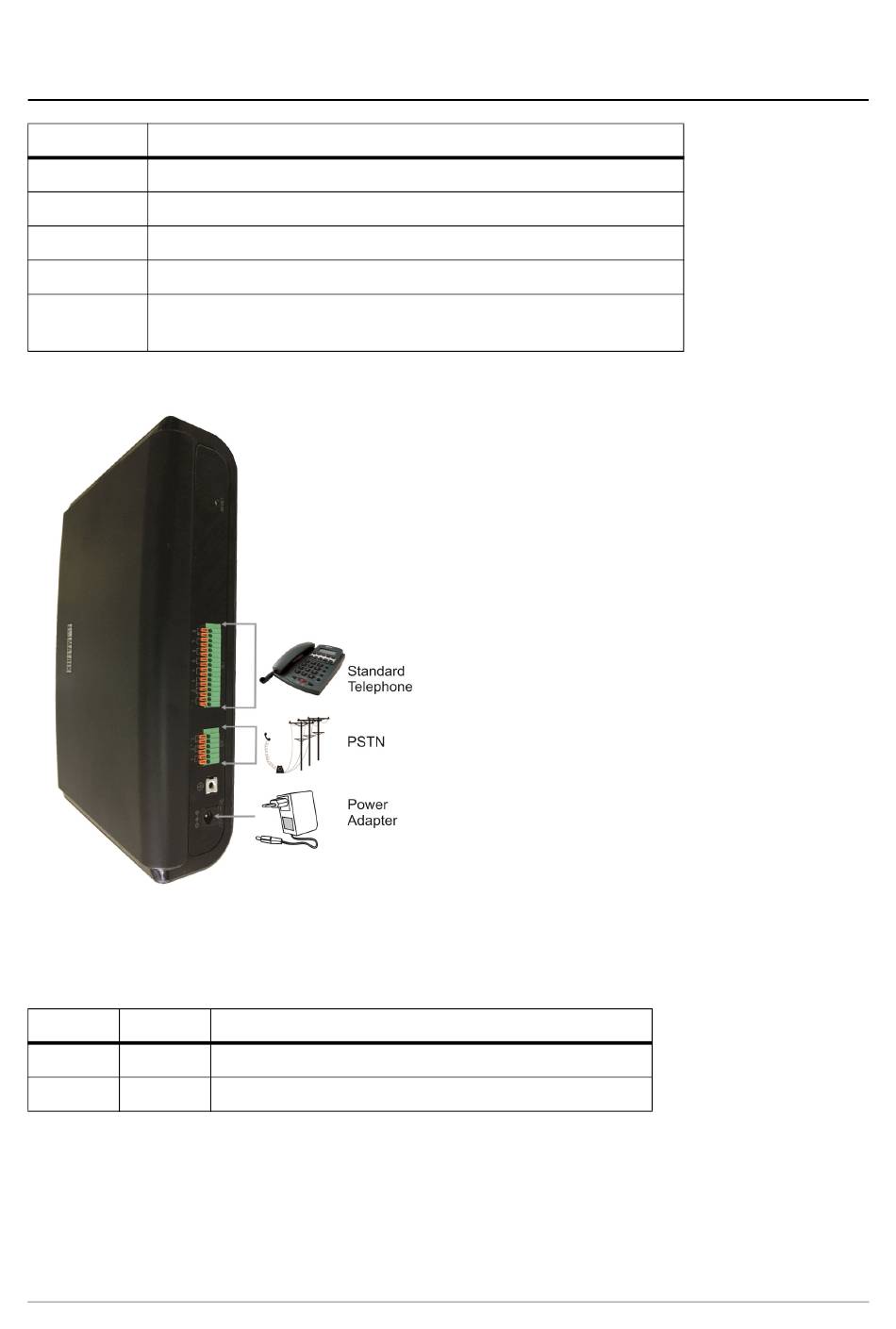

Ports and Connectors

Port Description
PowerPort To connect the external power adapter of 12V@2A.
Earth To connect the telecom earth to the system.
CO To connect the CO trunk lines from PSTN.
SLT To connect station SLT phones, FAX machines.
To reset the SE and the SA Password to their respective default
RESET
values.
LEDs
LED Color
PWR Green
STS Green
Matrix VISIONPRO System Manual
Description
To indicate system power ON/OFF condition.
To indicate the system status during various conditions.
