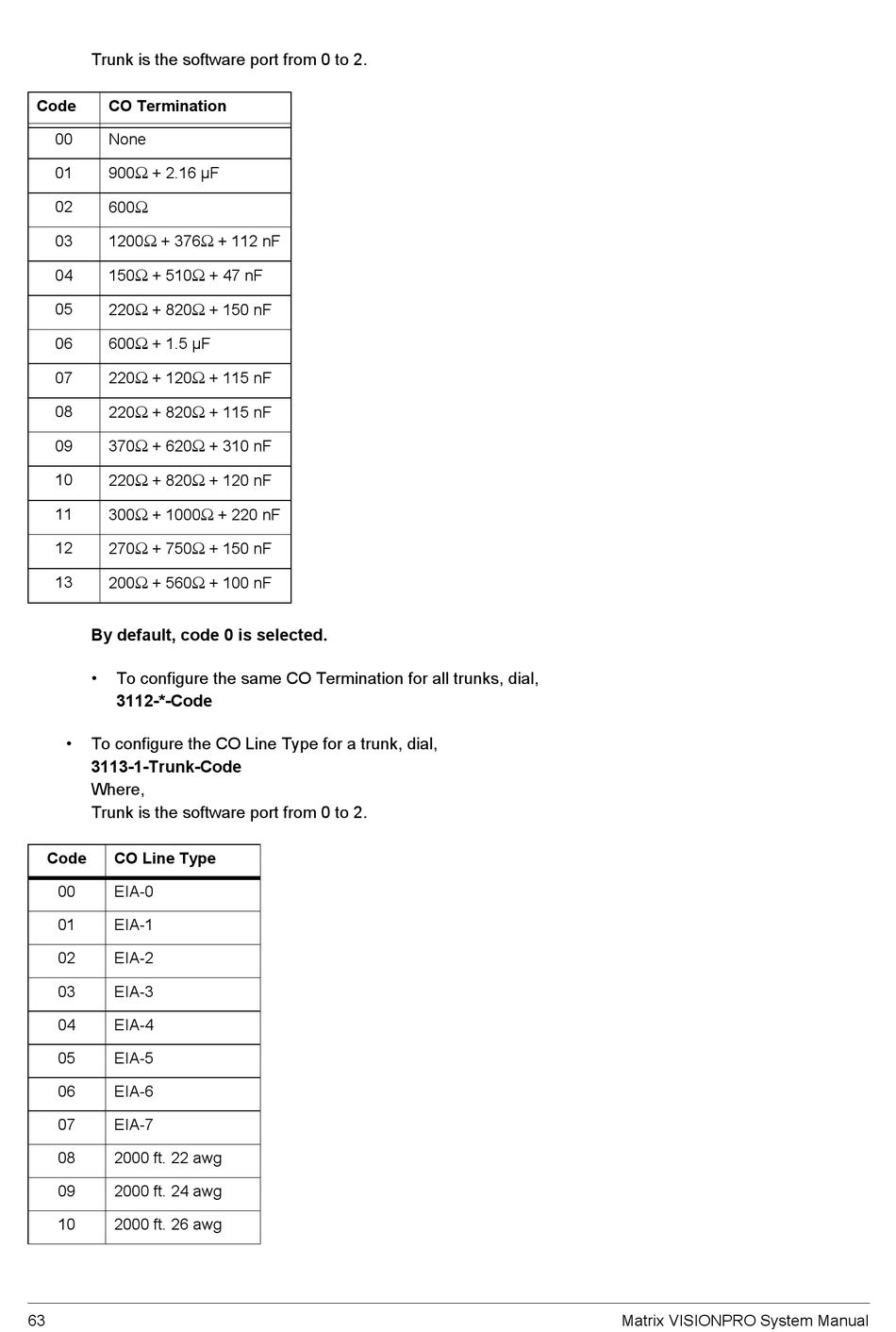

Trunk is the software port from 0 to 2.
Code CO Termination
00 None

01
900 + 2.16 µF

02 600

03 1200 + 376
 
04 150 + 510
 
05 220 + 820

06 600 + 1.5 µF
 
07 220 + 120
 
08 220 + 820
 
09 370 + 620
 
10 220 + 820

11
300 + 1000
 
12
270 + 750
 
13
200 + 560
By default, code 0 is selected.
• To configure the same CO Termination for all trunks, dial,
3112-*-Code
• To configure the CO Line Type for a trunk, dial,
3113-1-Trunk-Code
Where,
Trunk is the software port from 0 to 2.
Code CO Line Type
00 EIA-0
01 EIA-1
02 EIA-2
03 EIA-3
04 EIA-4
05 EIA-5
06 EIA-6
07 EIA-7
08 2000 ft. 22 awg
09 2000 ft. 24 awg
10 2000 ft. 26 awg
63

+ 112 nF
+ 47 nF
+ 150 nF
+ 115 nF
+ 115 nF
+ 310 nF
+ 120 nF

+ 220 nF
+ 150 nF
+ 100 nF
