Goodrive300-01A series VFD for air compressor Commissioning instruction
Step 4 On the system configuration interface, click Debug Mode, and the interface is displayed, as
shown in Figure 4-9.

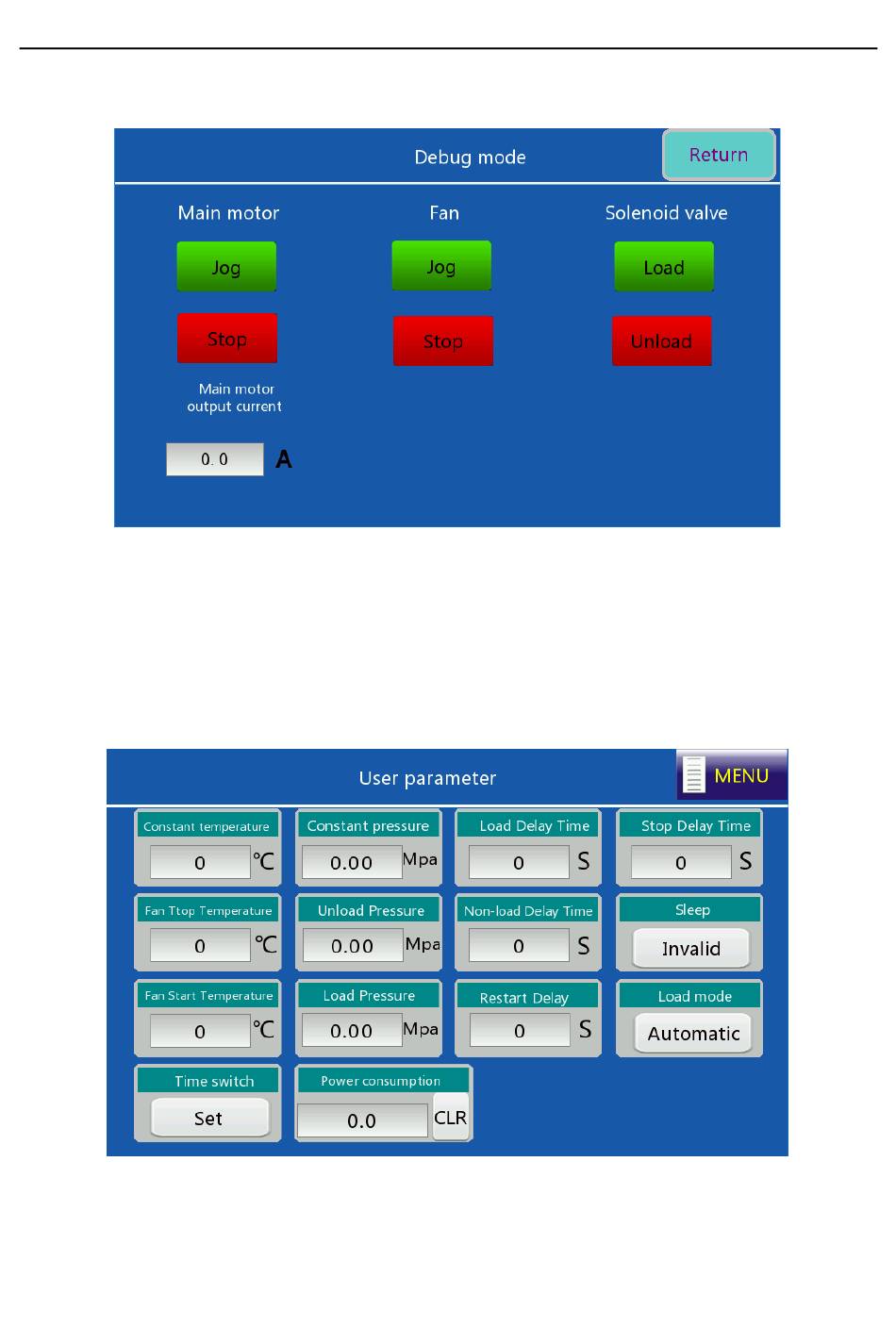

Figure 4-9 Debug mode interface
Click Jog for the main motor to determine the motor rotation direction; click Load or Unload to test
the action of solenoid valve. Click Return to enter system configuration, then, click Menu to return to
the menu interface.
Note: If the motor rotates reversely, adjust the wiring sequence of the motor cable.
6. Choose User parameter in the menu, and the interface is displayed, as shown in Figure 4-10.
Figure 4-10 User parameter interface
