Goodrive300-01A series VFD for air compressor External optional accessories
B.3.5 Installation dimensions and description
B.3.5.1 Touch screen installation dimensions

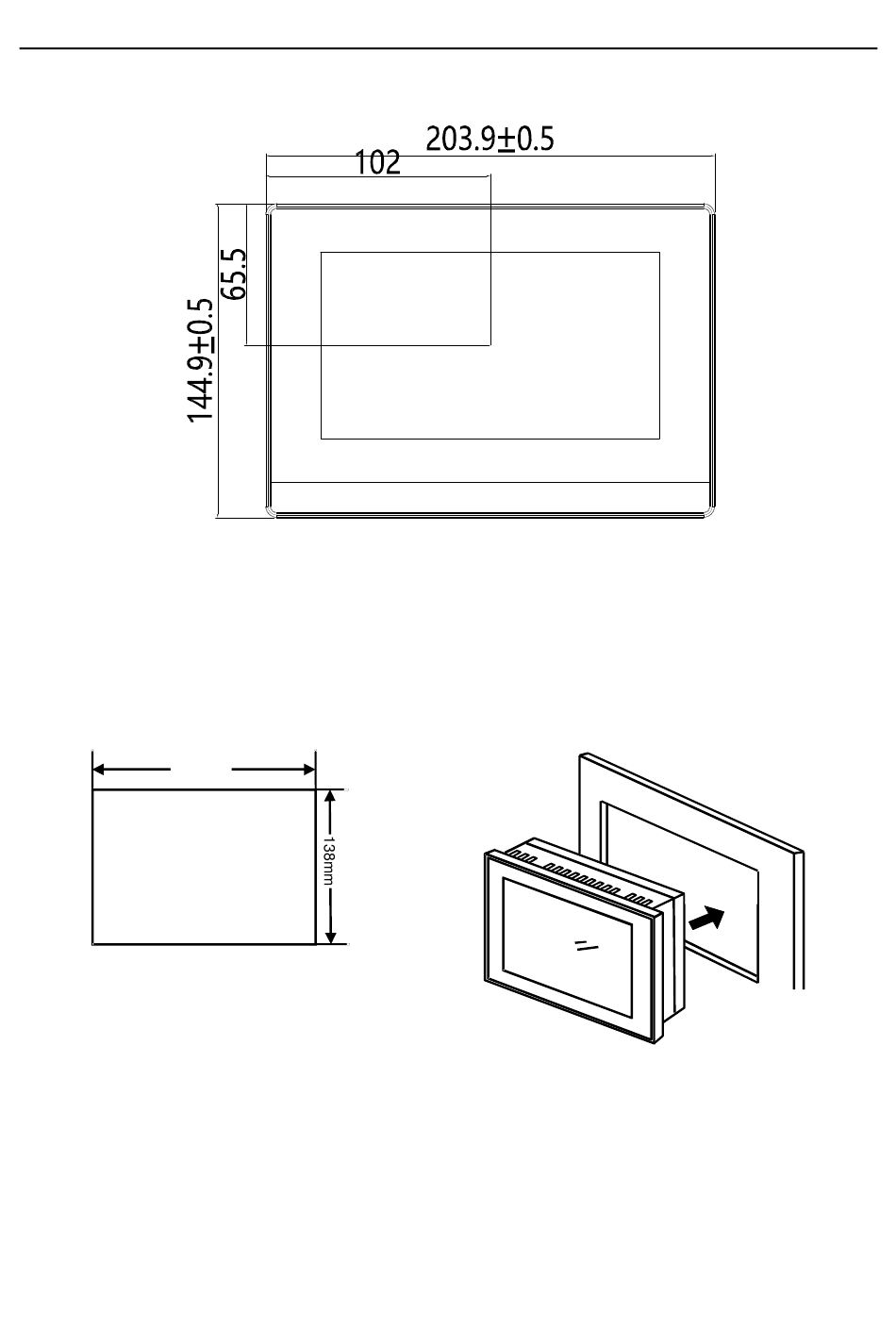

Figure B-64 Touch screen installation dimensions (unit: mm)
B.3.5.2 Cut-out installation description
When you want to build the touch screen into the operation panel of the control cabinet, use the cross
screwdriver and metal installation snap-fit. The installation procedure is as follows:
Step 1 Cut a rectangular installation groove on the operation panel of the control cabinet according to
the cut-out dimensions, and then insert the touch screen from the front of the operation panel.
192mm
Operation panel
Operation
panel
Touch
screen
Cut-out
dimensions
Step 2 Insert the metal snap-fits into the back, top and bottom mounting jacks of the touch screen,
insert the fastening screws (attached), and then tighten the screws with the cross screwdriver.
