Goodrive300-01A series VFD for air compressor
A.5 Wall installation dimensions of 520V–690V VFDs
For VFDs of AC 3PH 520V (-15%)–690V (+10%)

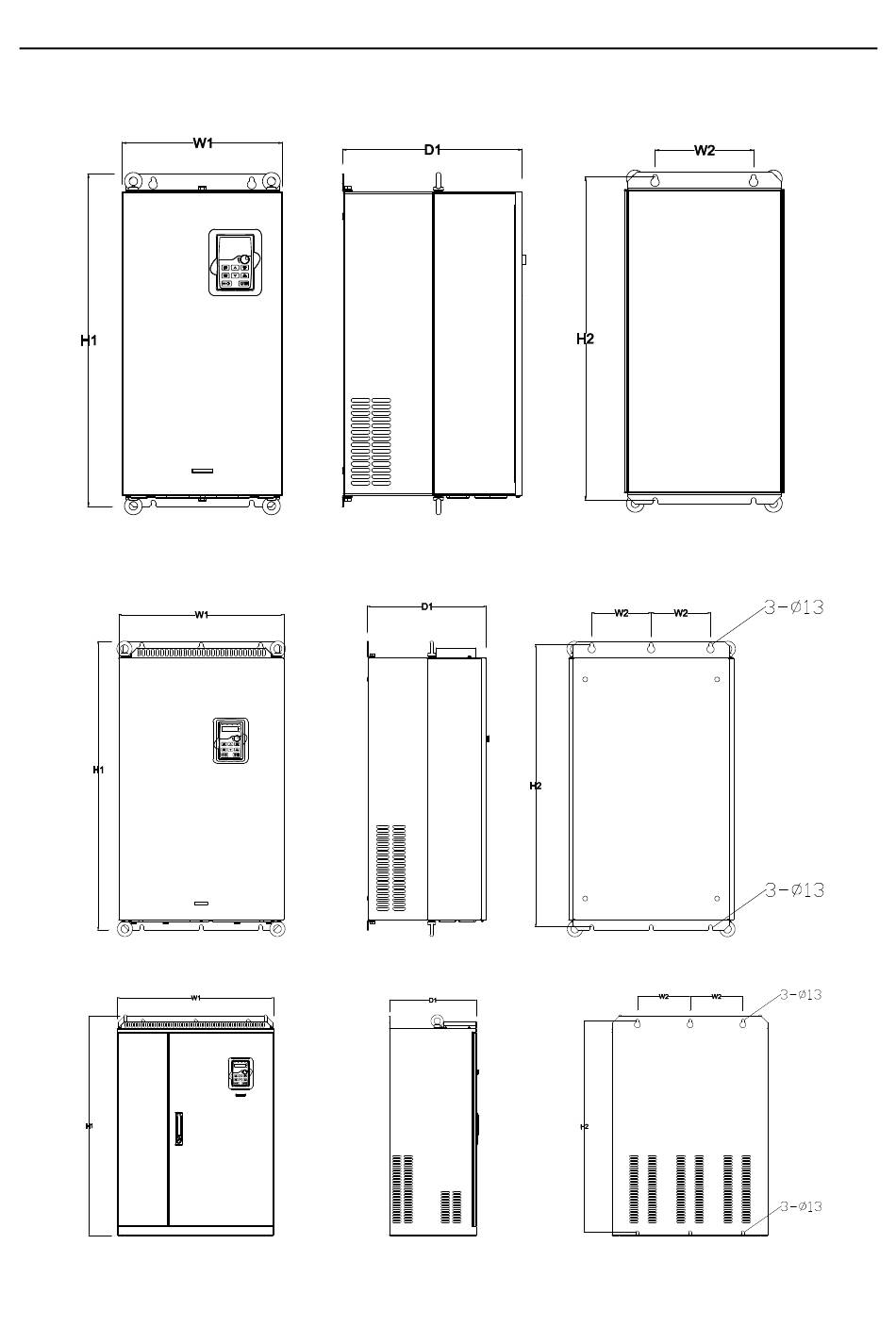

Figure A-13 Wall installation diagram for 660V 22kW–132kW VFD models
Figure A-14 Wall installation diagram for 660V 160kW–220kW VFD models
Figure A-15 Wall installation diagram for 660V 250kW–350kW VFD models
-117-
Product dimensions
