Goodrive300-01A series VFD for air compressor
External optional accessories

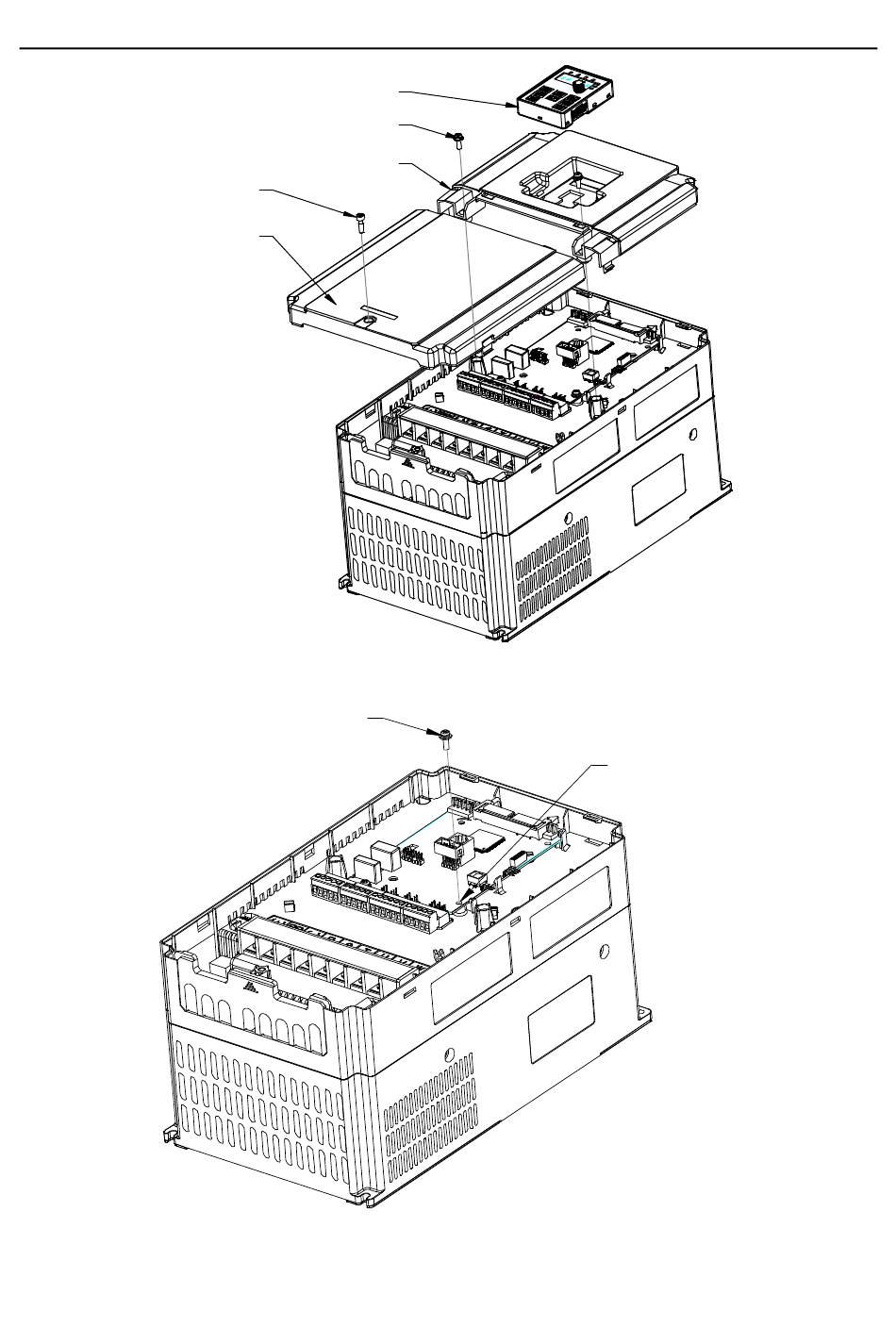

Keypad
Upper cover
screw
Upper cover
Lower cover
screw
Lower cover
2. Remove one fastening screw (and grounding wires) on the control board.
Control board
screws
Grounding wires
3. Install three hexagonal studs to support the multi-functional expansion card. The installation torque
is 12± 10%kgf.cm.
