B.2.5.2 Air compressor fault interface
This interface displays air compressor exception information, including the air filter, oil filter, and
separator blockage, maintenance need, and auxiliary pressure or temperature pre-alarm or alarm.
B.2.5.3 Real-time alarm interface
This interface displays all fault records including fault time in real time since the keypad is started. If
the keypad is re-powered on, the real-time alarm records are cleared but these records have been
saved in the history alarm records before the power-off.
When there are many real-time alarm records, you can use the Up and Down keys to shift.
In the working environment interface, the
alarms, but alarm information can be cleared only in this interface.
When you need to clear real-time alarm records, you can press
user password to clear the records.
03.17 16:02:35
Air Compressor fault
000. Oil filter jam signal fault
001. External Signal 1 fault
002. Pressure Prealarm
003. Pressure Signal fault
004. Maintenance timeout
...
Return

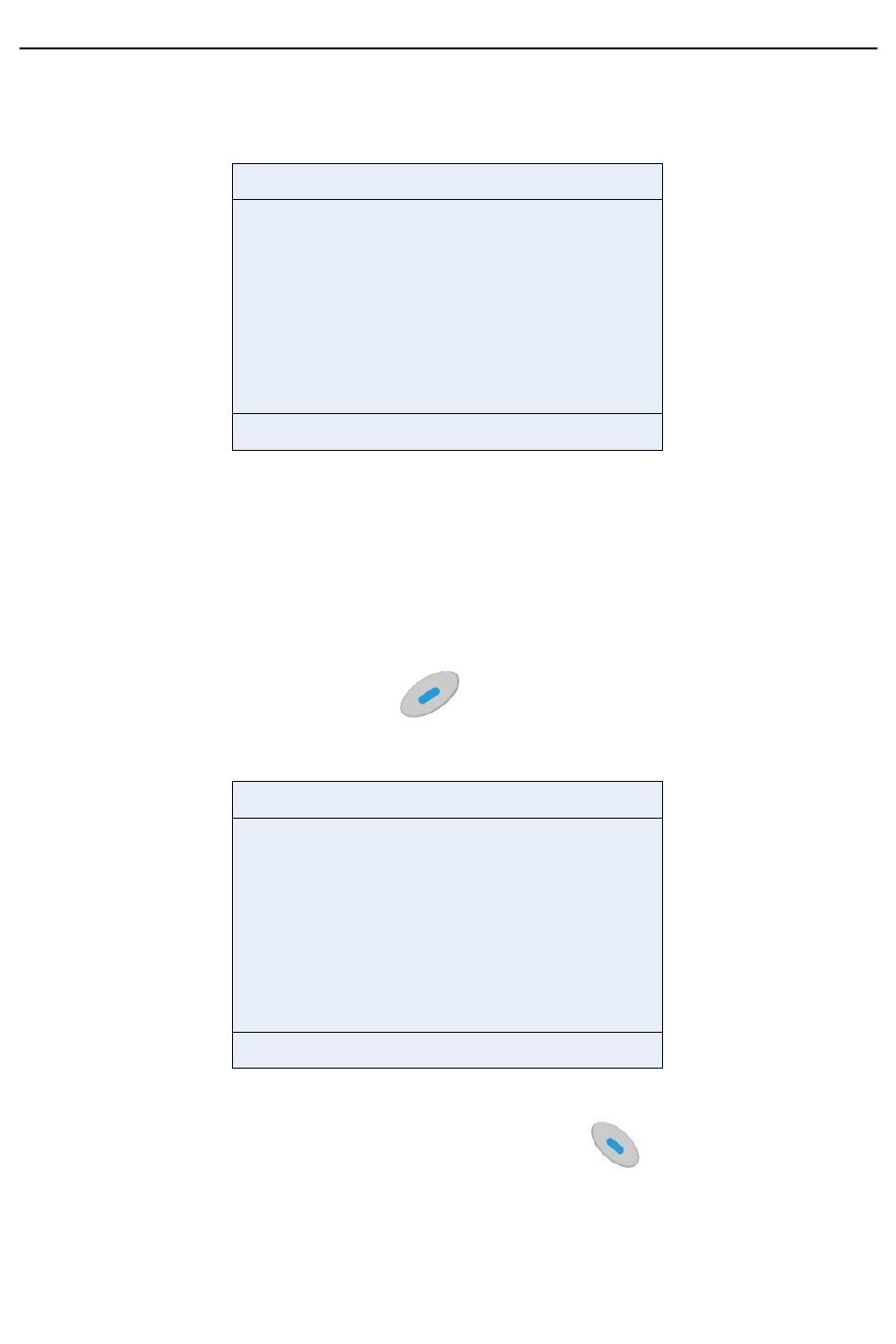

Figure B-45 Air compressor fault interface
03.17 16:02:35
Real-time alarm
000. 03-17 16:00:05 xxx fault
001. 03-17 15:49:30 xxx fault
002. 03-17 15:08:20 xxx fault
...
Return
Figure B-46 Real-time alarm interface
