Goodrive300-01A series VFD for air compressor
R
S
T

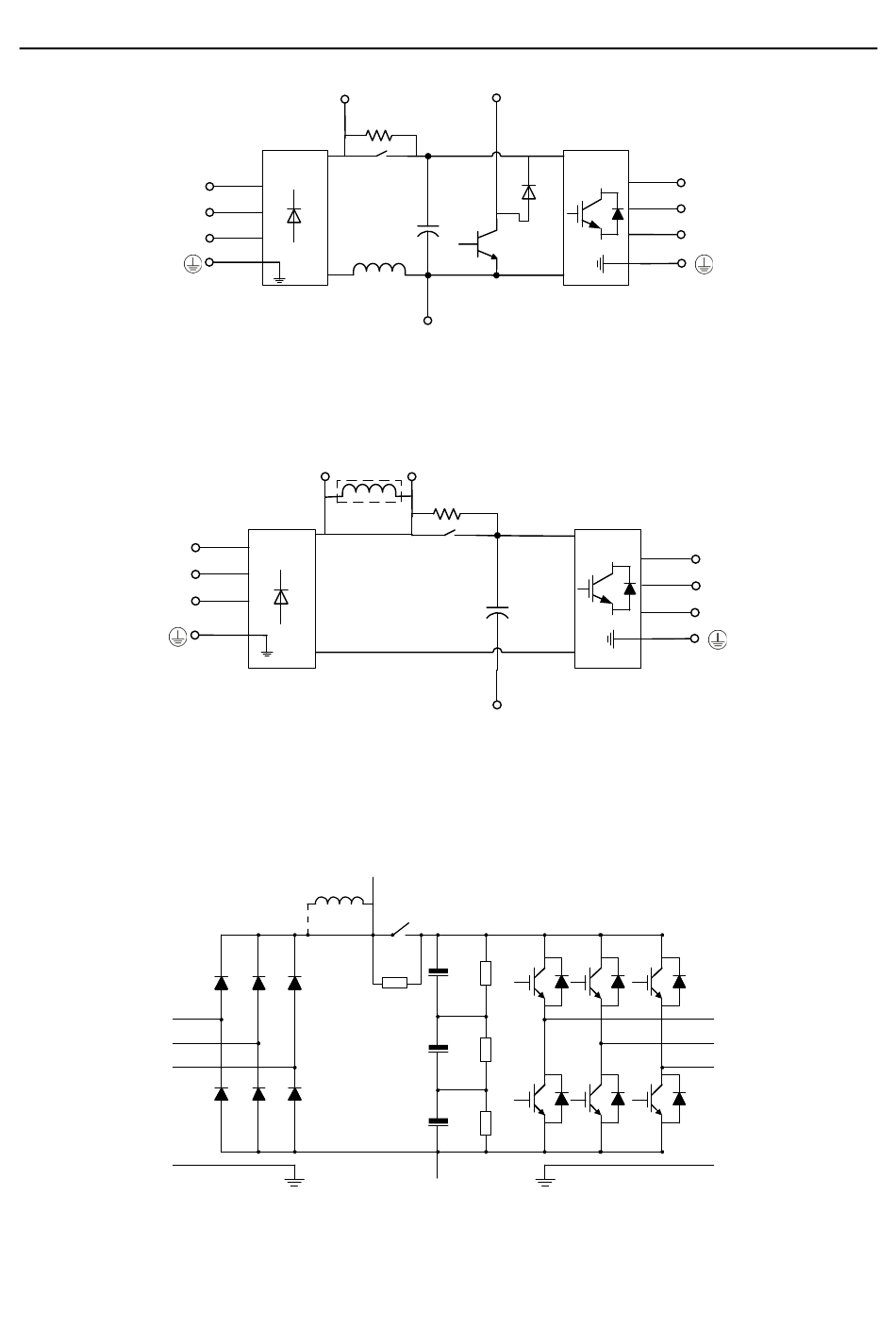

Figure 3-3 Main circuit wiring diagram for 18.5–110kW VFD models
Note: DC reactors have been built into 18.5–110kW VFD models as standard configuration.
R
S
T
Figure 3-4 Main circuit wiring diagram for 132–500kW VFD models
Note: DC reactors are optional parts for 132–500kW VFD models and can be externally connected.
For VFDs of AC 3PH 520V (-15%)–690V (+10%)
R
S
T
PE
Figure 3-5 Main circuit schematic diagram for 660V VFD models
The 660V series VFDs can be connected to external DC reactors. Before connection, remove the
(+)
(-)
P1
(+)
(+)
DC reactor
P1
(-)
