Goodrive300-01A series VFD for air compressor
Wiring instruction
copper bar between P1 and (+). DC reactors are optional parts.
3.1.2 Main circuit terminal diagram

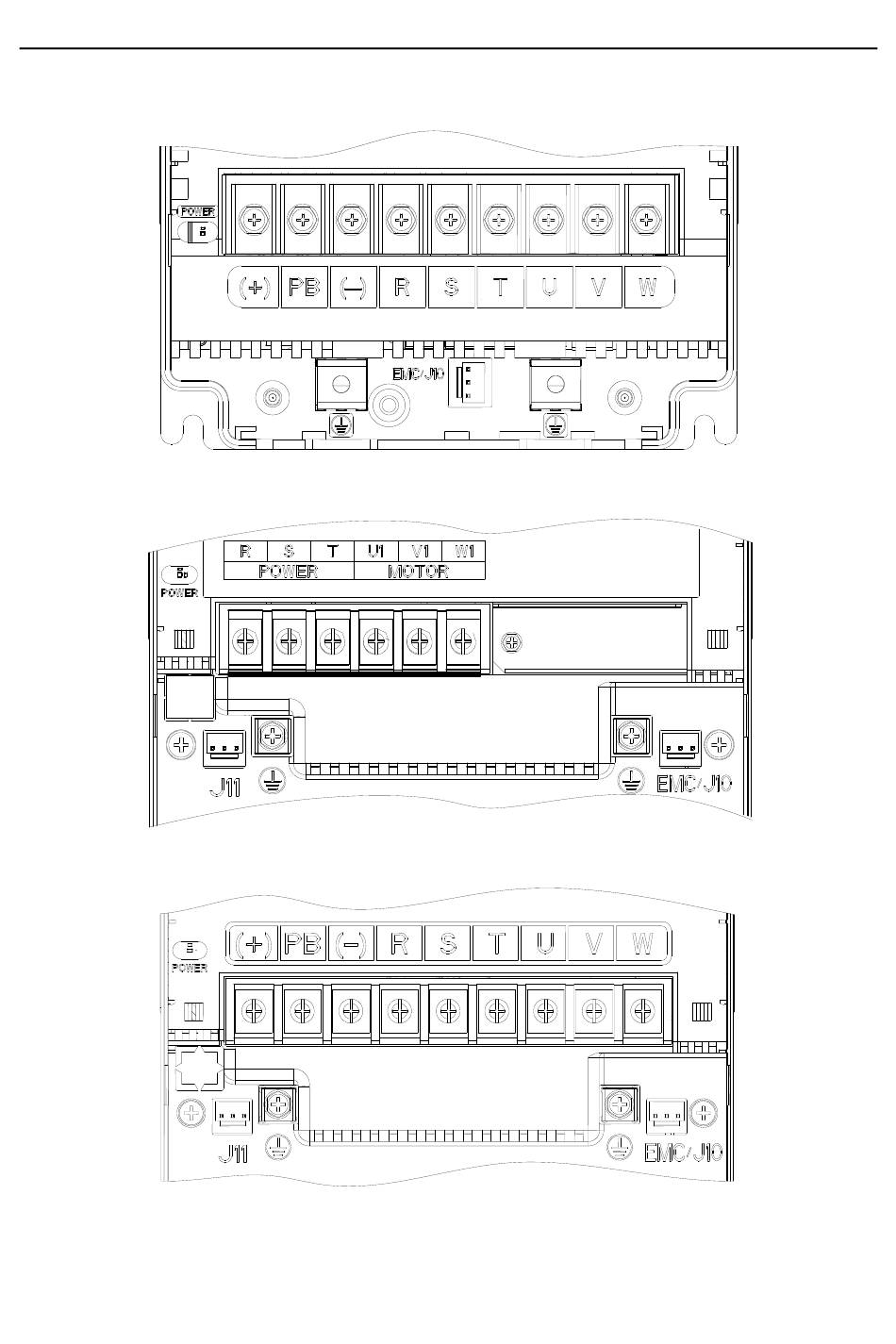

Figure 3-6 Main circuit terminal diagram for 380V 7.5kW VFD models
Figure 3-7 Main circuit terminal diagram for 380V 11–15kW VFD models
Figure 3-8 Main circuit terminal diagram for 380V 18.5–22kW VFD models
