Goodrive300-01A series VFD for air compressor

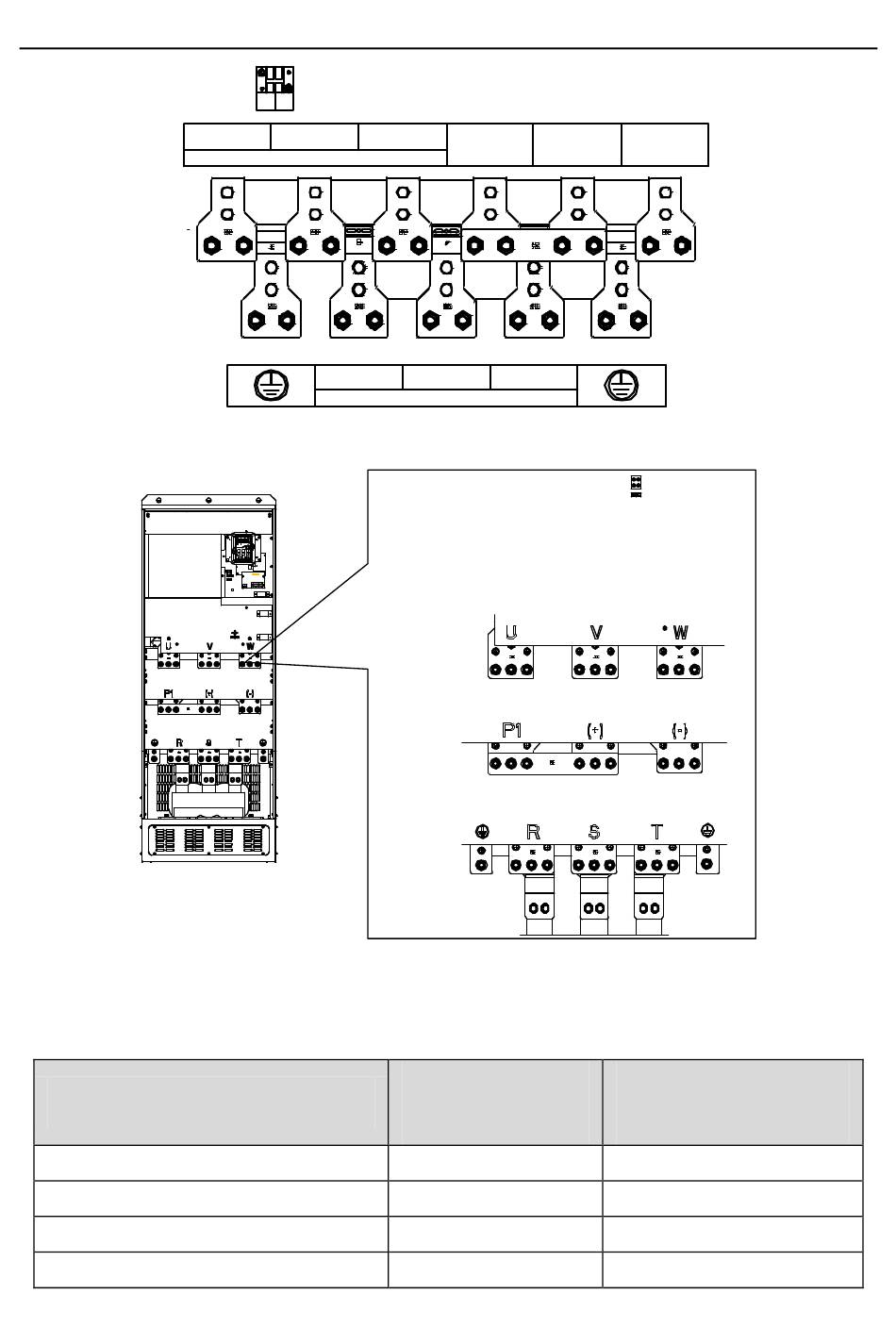

Figure 3-14 Main circuit terminal diagram for 380V 220–350kW VFD models
Figure 3-15 Main circuit terminal diagram for 380V 400–500kW VFD models
Table 3-1 Screw specification and torque of main circuit terminals
Power range (kW)
7.5–15
18.5–37
45–110
132–200
A1 A2
R S
POWER
U
T
(+)
P1
V W
MOTOR
Terminal screw
specification
M5
M6
M8
M12
-16-
Wiring instruction
(-)
Torque of torque driver
·
(N m)
2.5
3.5
10
35
