Goodrive300-01A series VFD for air compressor Wiring instruction

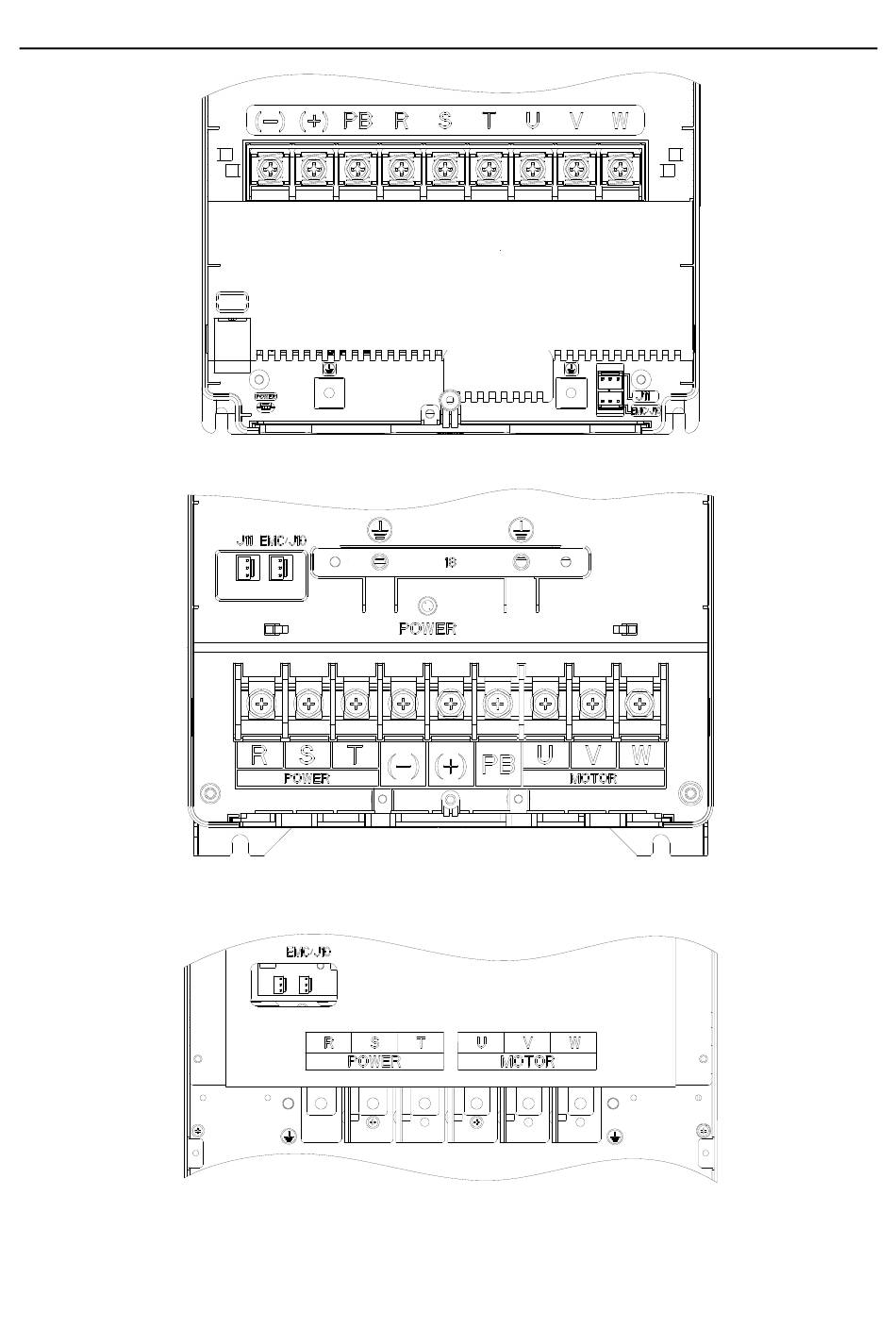

Figure 3-9 Main circuit terminal diagram for 380V 30–37kW VFD models
Figure 3-10 Main circuit terminal diagram for 380V 45–55kW VFD models
Figure 3-11 Main circuit terminal diagram for 380V 75kW VFD models
