INVT Goodrive300-01A Series Operation Manual page 33

Goodrive300-01A series VFD for air compressor Commissioning instruction
4. Click Menu on the top right corner of the user interface, and the interface is displayed, as shown in
Figure 4-4.

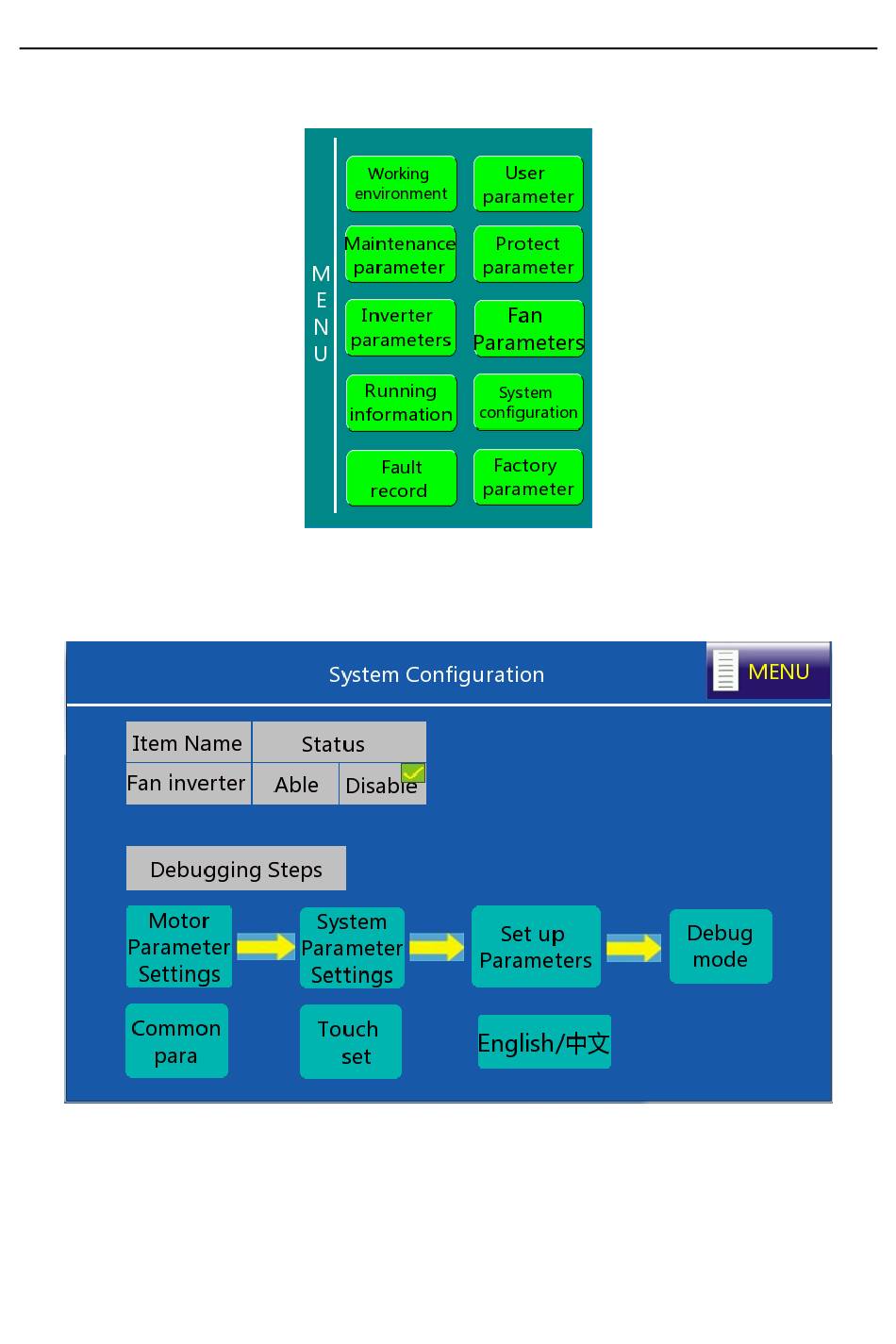

Figure 4-4 Menu interface
5. Click System config on the touch screen to enter the system configuration interface, as shown in
Figure 4-5.
Figure 4-5 System configuration interface
Click Able for the fan VFD, and perform commissioning according to the commissioning guide.
Step 1 In the system configuration interface, click Motor Parameter Settings to select the motor
type.

If you select SM (synchronous motor), you need to set the max frequency, rated frequency,
-27-
