Goodrive300-01A series VFD for air compressor

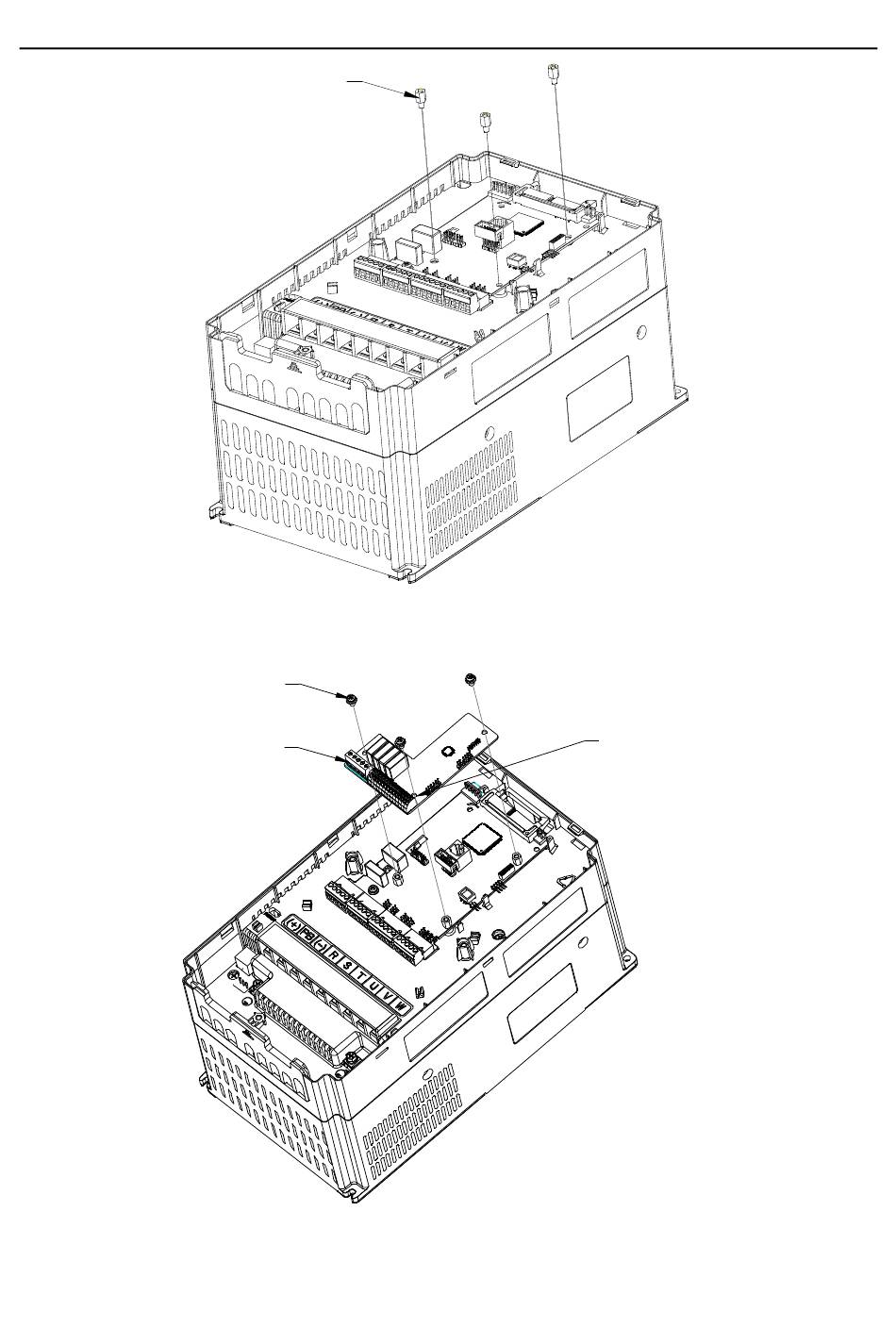

4. Install the multi-functional expansion card (and grounding wires), and use three M4*8 combination
screws with spring and flat washers. The installation torque is 10± 10%kgf.cm.
Multifunction
expansion card
Multifunction
expansion card
5. Install the cover and keypad after the installation and wiring of the multi-functional expansion card
are completed.
M4XL8.5
hexagonal studs
screws
-126-
External optional accessories
Grounding wires
