Goodrive300-01A series VFD for air compressor
rated power, rated voltage, rated current, pole pairs, and carrier frequency.
If you select AM (asynchronous motor), you need to set the max frequency, rated frequency,
rated power, rated voltage, rated current, rated rotational speed, and carrier frequency.
Set motor parameters according to the actual motor nameplate parameters, click Para autotune, and
then click Next. On the interface shown in Figure 4-7, set fan motor parameters (including the max
frequency, rated frequency, rated power, rated voltage, rated current, and rated rotational speed).

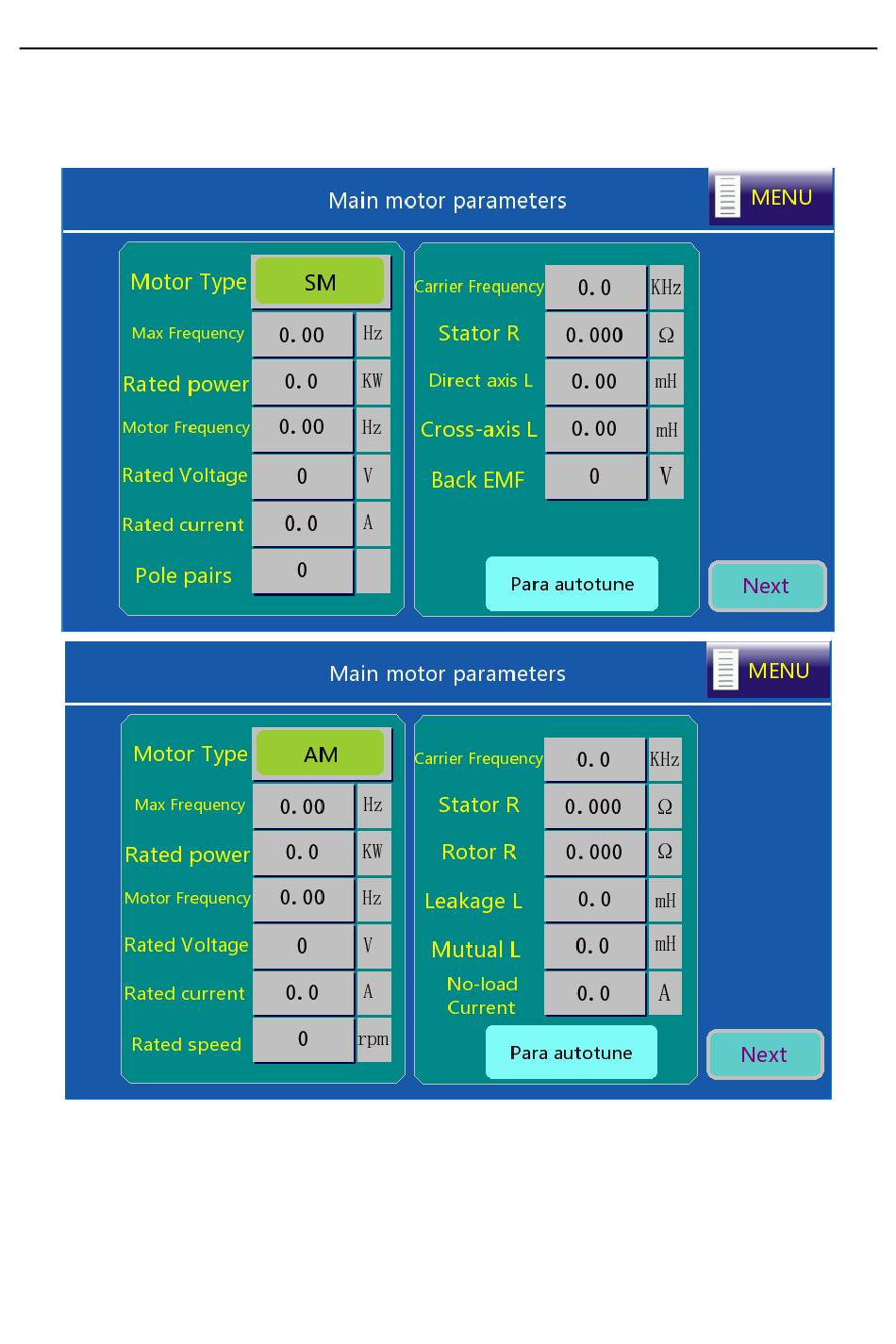

Figure 4-6 Main motor parameter setting interface
-28-
Commissioning instruction
