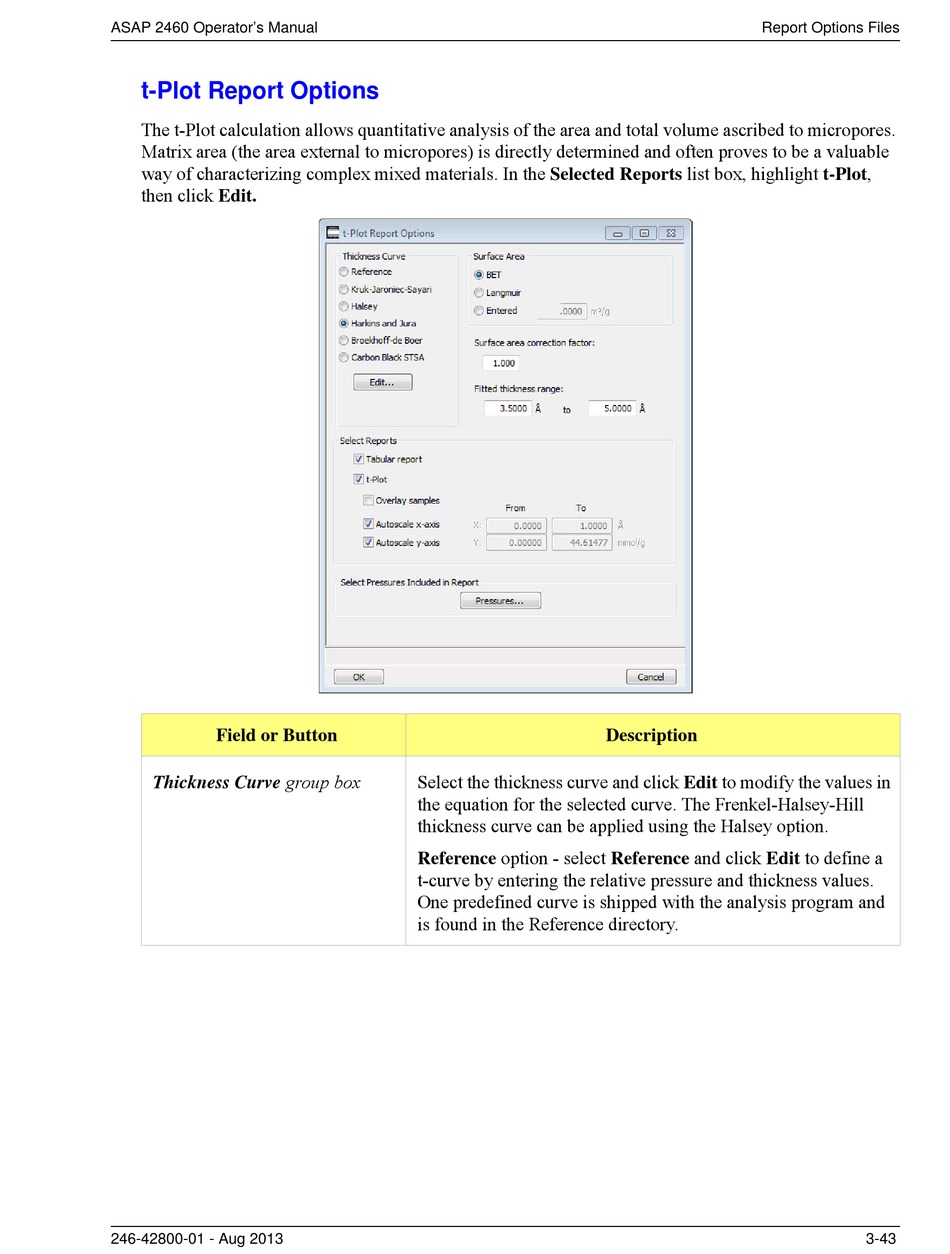

t-Plot Report Options

The t-Plot calculation allows quantitative analysis of the area and total volume ascribed to micropores.
Matrix area (the area external to micropores) is directly determined and often proves to be a valuable
way of characterizing complex mixed materials. In the Selected Reports list box, highlight t-Plot,
then click Edit.
Field or Button
Thickness Curve group box
246-42800-01 - Aug 2013
Select the thickness curve and click Edit to modify the values in
the equation for the selected curve. The Frenkel-Halsey-Hill
thickness curve can be applied using the Halsey option.
Reference option - select Reference and click Edit to define a 
t-curve by entering the relative pressure and thickness values.
One predefined curve is shipped with the analysis program and
is found in the Reference directory.
Report Options Files
Description
3-43
