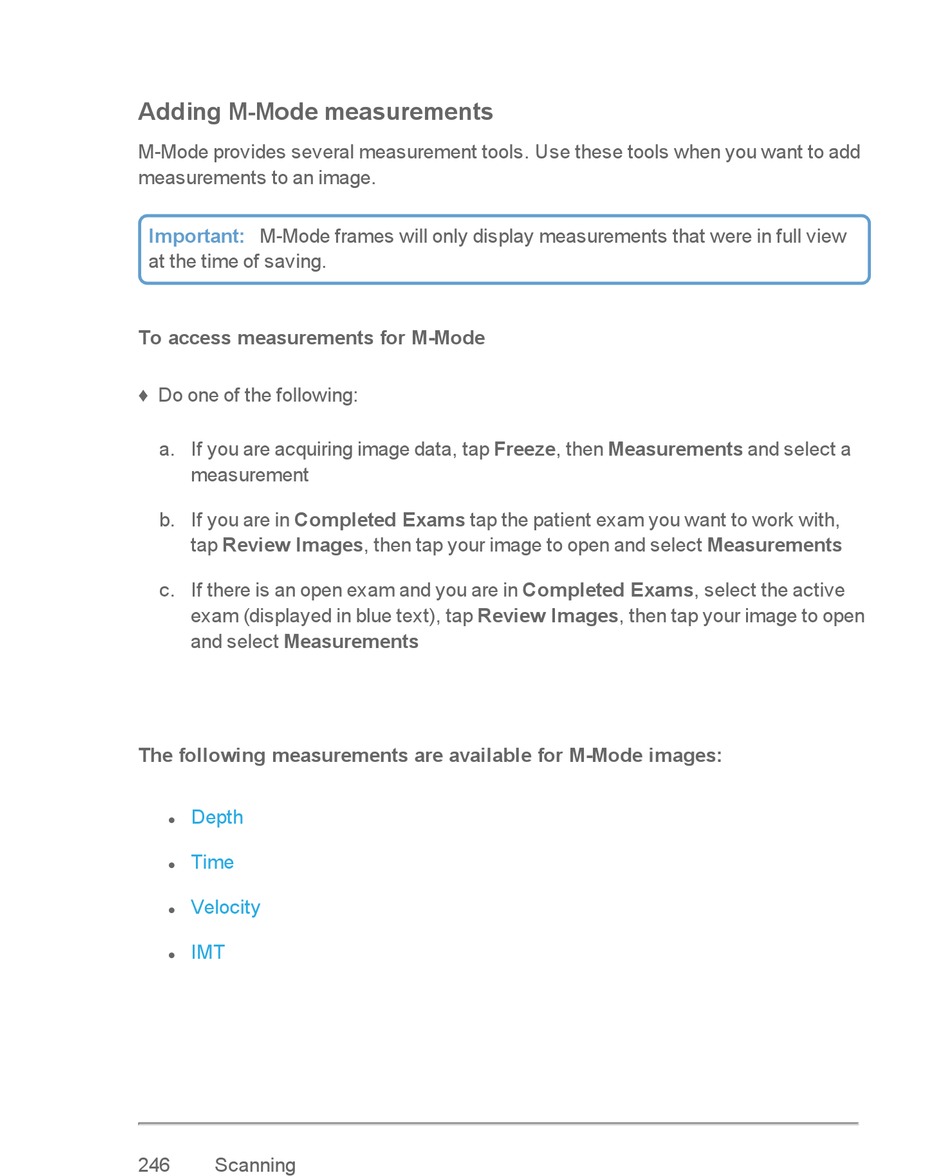

Adding M-Mode measurements

M-Mode provides several measurement tools. Use these tools when you want to add
measurements to an image.
Important: M-Mode frames will only display measurements that were in full view
at the time of saving.
To access measurements for M-Mode
♦ Do one of the following:
a. If you are acquiring image data, tap Freeze, then Measurements and select a
measurement
b. If you are in Completed Exams tap the patient exam you want to work with,
tap Review Images, then tap your image to open and select Measurements
c. If there is an open exam and you are in Completed Exams, select the active
exam (displayed in blue text), tap Review Images, then tap your image to open
and select Measurements
The following measurements are available for M-Mode images:
Depth
l
Time
l
Velocity
l
IMT
l
