Indicates the chosen display map for the image. The display map can be changed
using the display map control.
Image area
This is the area where the image data acquired by the transducer appears. This is the
area of the window that the system exports—along with header information—when
you export a stored image and configure your export to send only the image area.
The image area is not interactive, you control the content of the image area from the
control panel.
This area is also known as the workspace.
Transducer orientation indicator
The blue dot corresponds to the orientation ridge on the transducer nose and indicates
the orientation relative to the anatomy.

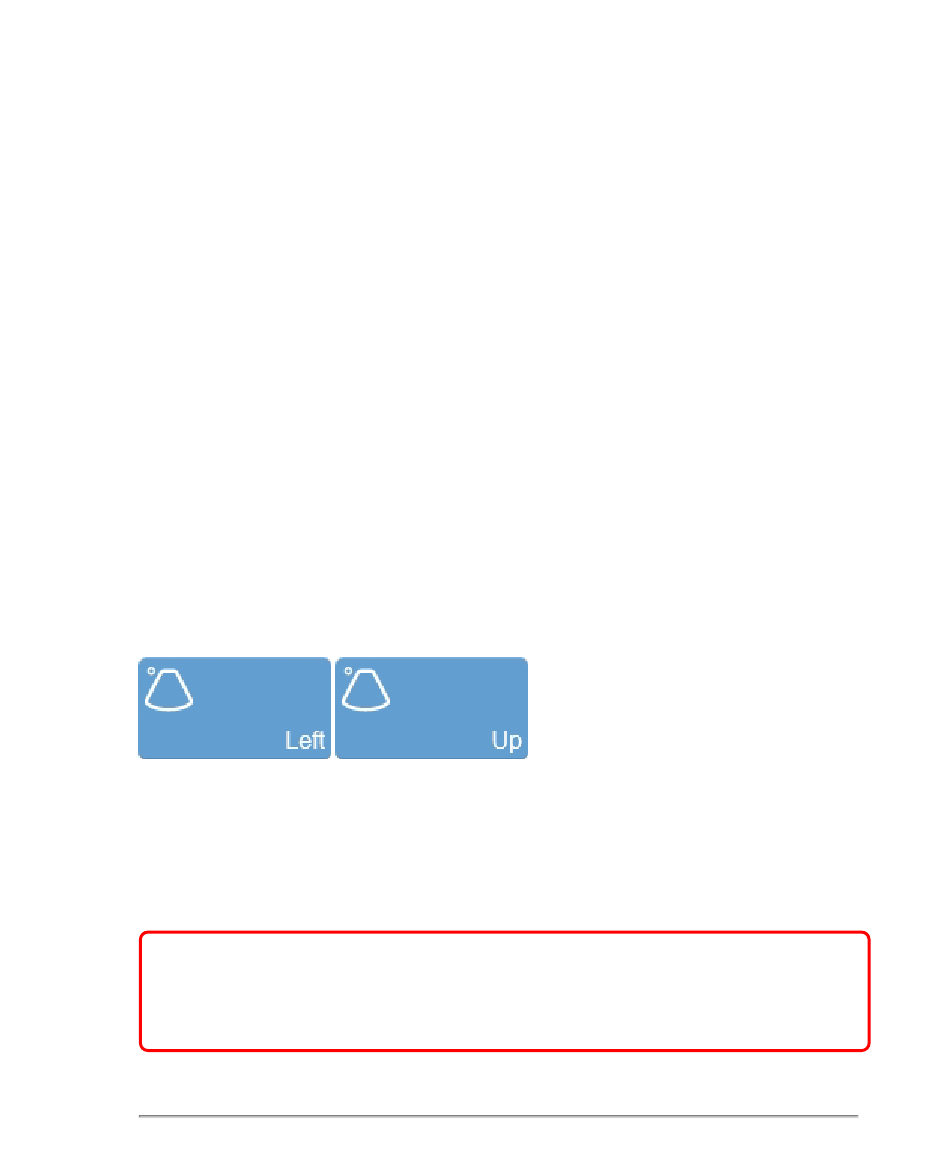

Tap either of the orientation buttons to flip the image between the following options:
Right, Left, Up and Down.
Image scale
Indicates, in mm, the distance from the face of the transducer to the tissue being
imaged.
WARNING: The Vevo MD Imaging System uses ultra high frequency (UHF)
series transducers. Each UHF transducer model has a different image scale
that does not start at 0.0 mm, but includes an offset. Please be aware of this
when placing measurements.
