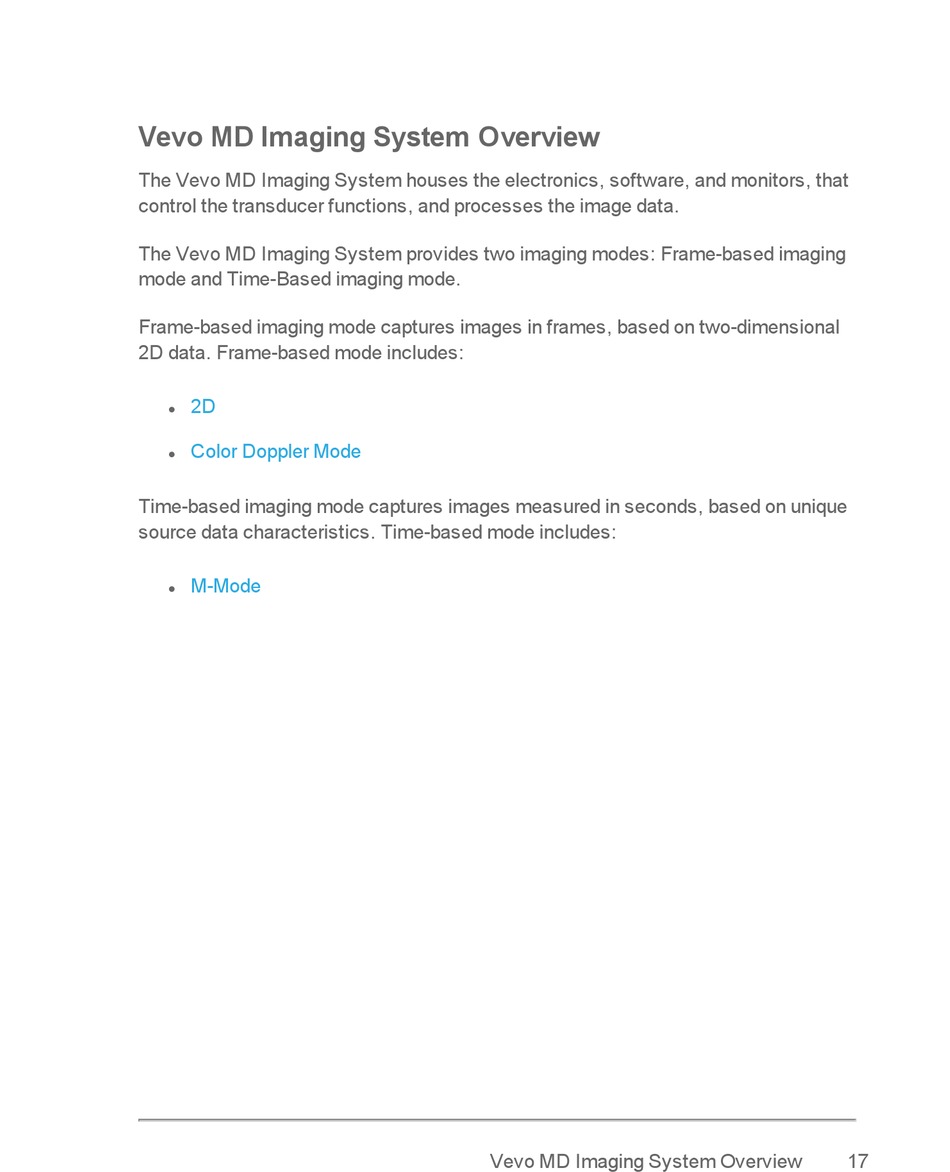

Vevo MD Imaging System Overview

The Vevo MD Imaging System houses the electronics, software, and monitors, that
control the transducer functions, and processes the image data.
The Vevo MD Imaging System provides two imaging modes: Frame-based imaging
mode and Time-Based imaging mode.
Frame-based imaging mode captures images in frames, based on two-dimensional
2D data. Frame-based mode includes:
2D
l
Color Doppler Mode
l
Time-based imaging mode captures images measured in seconds, based on unique
source data characteristics. Time-based mode includes:
M-Mode
l
Vevo MD Imaging System Overview 17
