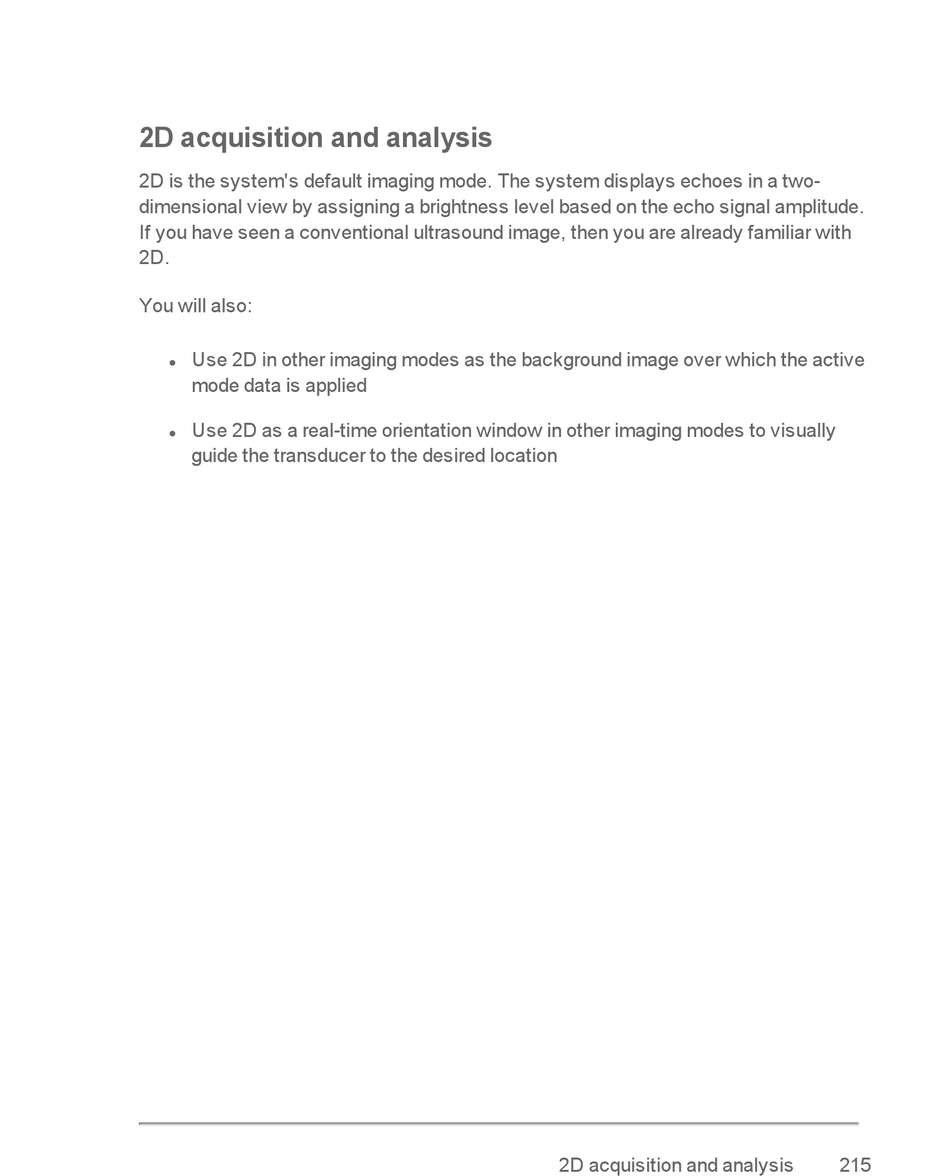

2D acquisition and analysis

2D is the system's default imaging mode. The system displays echoes in a two-
dimensional view by assigning a brightness level based on the echo signal amplitude.
If you have seen a conventional ultrasound image, then you are already familiar with
2D.
You will also:
Use 2D in other imaging modes as the background image over which the active
l
mode data is applied
Use 2D as a real-time orientation window in other imaging modes to visually
l
guide the transducer to the desired location
2D acquisition and analysis 215
