2D clinical display

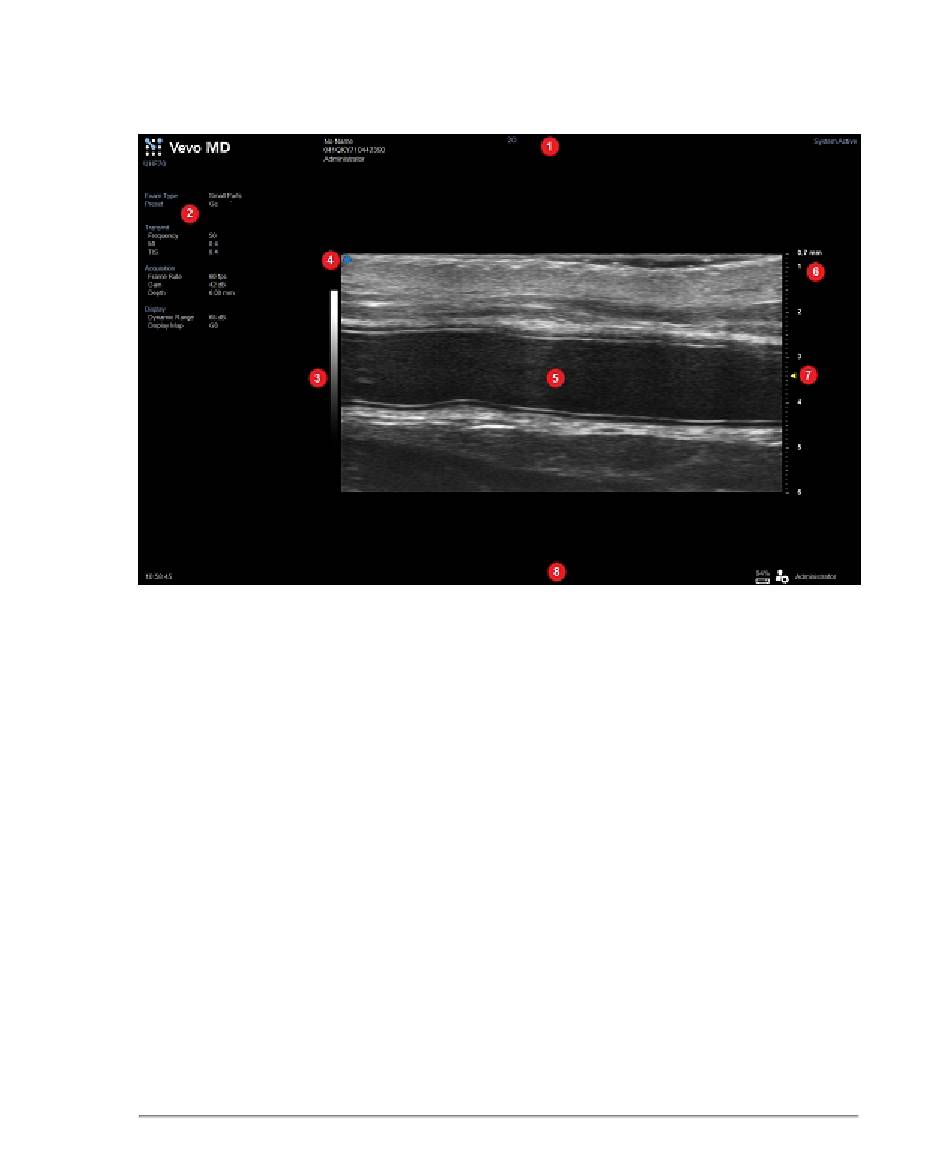

2D clinical display
1. Image status area
2. Mode settings panel
3. Display map
4. Transducer orientation indicator
5. Image area
6. Image scale
7. Focal zone indicator
8. Status bar
When working in 2D, the clinical display is exactly as shown in
page 197.
"Scanning"
on
2D clinical display
217
