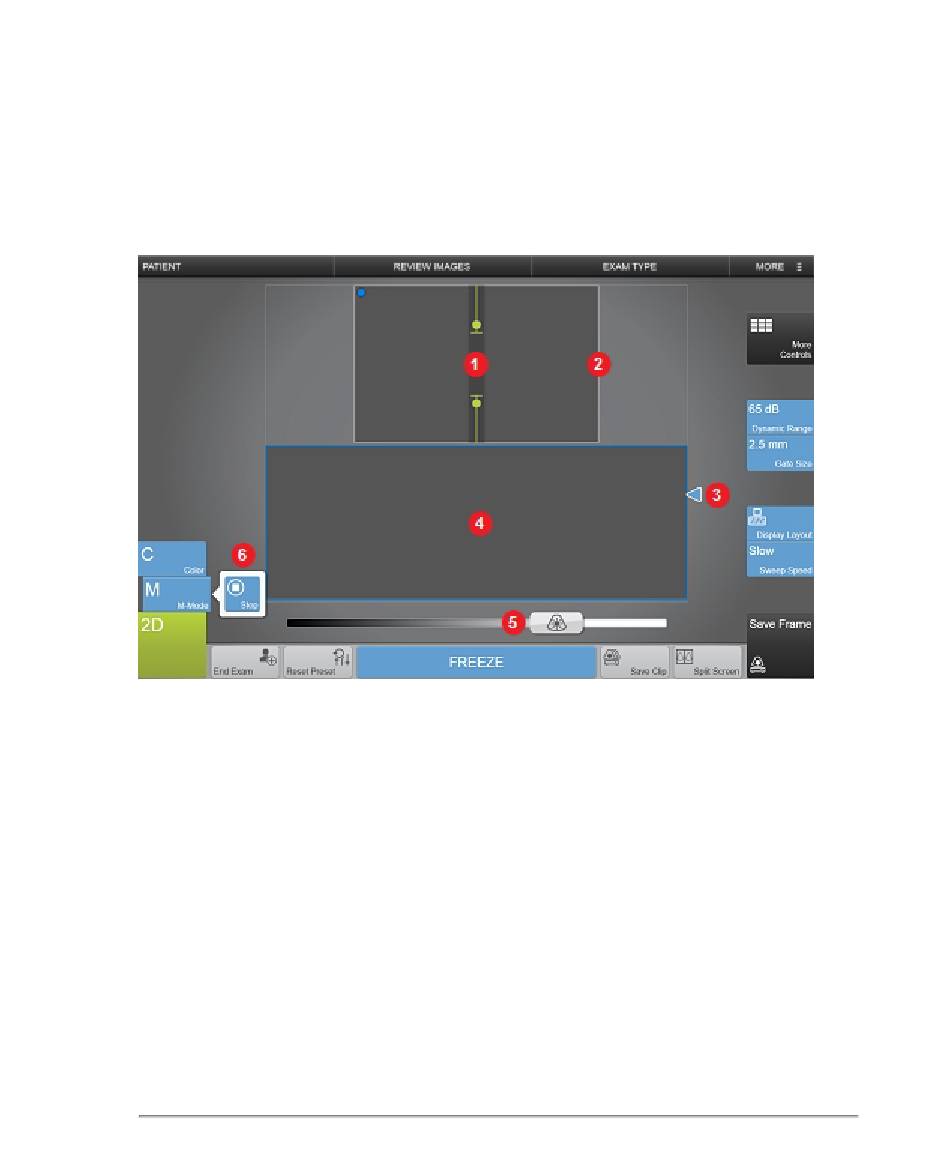

M-Mode control panel
When imaging in M-Mode there are a number of controls on the control panel that you
can manipulate to optimize your image.
These controls adjust the image in the M-Mode data window.
Image controls:
1. Sample gate
2. 2D scout window
3. Focal zone
4. M-Mode window
5. Gain
6. M-Mode Start/Stop flyout button
234
Scanning
