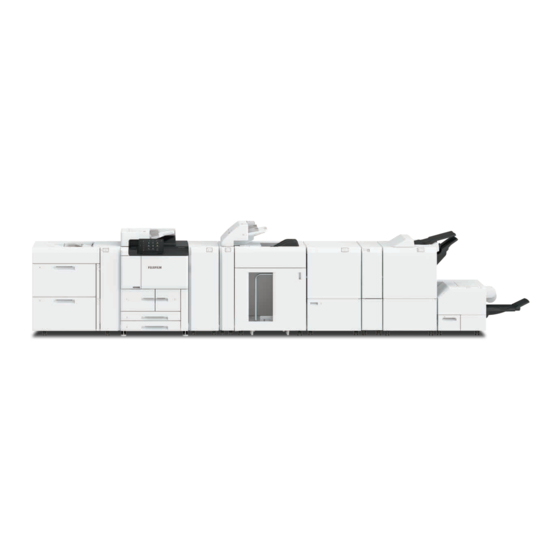

  • Page 1 Quick User Guide Quick User Guide Revoria Press E1136 / E1125 / E1110 / E1100...
  • Page 2 Features Content Thank you for selecting Revoria Press E1136 / E1125 / E1110 / E1100. This quick user guide provides the fundamental Copy / Scan / Print operating procedures for ease use of the machine. Quick User Guide Organization Features Content ………………………………………………...
  • Page 3 Overview Powering On / Off the machine Power ON/OFF machine Log In/Out button -Press to enter Energy / Power Saver button User ID & Passcode - Press to power on machine or to exit power saver mode. Home Button To access home screen Document feeder Control Panel...

  • Page 4: Table Of Contents

    COPY FEATURES Reduce/Enlarge Page 05 2-Sided Copying Page 06 To make a reduced or an enlarge output size. To make copies single or double sided output Book Copying Page 07 Mixed Sized Originals Page 08 To copy bound documents using platen glass on To scan different size documents simultaneously to 2 separate sheets and copies onto matching paper size.
  • Page 5 COPY FEATURES Repeat Image Page 13 Annotations Page 14 Image to be print repeatedly on one sheet of To insert stamp, date, and page number to paper printed copies. Urgent Page 1 Folding Page 15 Build Job + Sample Set Page 16 To make copies output as folded by half or in three.

  • Page 6: Reduce/Enlarge

    COPY FEATURE: REDUCE/ENLARGE Reduce or enlarge copies from the original document by selecting desired copy size ratio. Original A4 Output A3 1. From the home screen, Select [Copy] 2. Scroll down to [Reduce/Enlarge] feature 3. Tap on [Proportional %] for more options. Alternatively, select and adjust your preference for the % Press <Start>...
  • Page 7 COPY FEATURE: 2-SIDED COPYING You can make copies and output as single/ double-sided. 1. From the home screen, select [Copy] 2. Select [2-Sided Copying] 3. Select an option: 1  1 Sided copy 1-sided document onto 1 side of paper 1 ...

  • Page 8: Book Copying

    COPY FEATURE: BOOK COPYING Making a copy from a bound document (Book Copying) You can make copies from bound document into separate sheets of paper using platen glass. 1. From the home screen, select [Copy] 2. Scroll down and Select [Book Copying] 3.
  • Page 9 COPY FEATURE: MIXED SIZE ORIGINAL Making copy of different sized document (Mixed Size) You can make copies of different sized documents and copy them onto their respective paper size. 1. From the home screen, select [Copy] 2. Scroll down and select [Mixed Sized Originals] 3.

  • Page 10: Pages Per Side

    COPY FEATURE: PAGES PER SIDE You can make copies from multiple sheets of documents onto single sheet of paper 1. From the home screen page, select [copy] 2. Select [Pages per Side] 3. Choose between Off – feature not applied 2 Pages Up –...

  • Page 11: Finishing

    COPY FEATURE: STAPLE/PUNCH HOLE Making multiple copies from the original [sorting] To make output collated/uncollated, stapled / hole punched. [Collated] [Uncollated] [Finishing] 1,2,3…1,2.3… 1,1...2,2...3,3... Stapled / Hole Punch 1. From the home screen, select [copy] 2. Select [Stapler]/[Holes] 3. Select option: Staple position Hole Punch position *both function can be selected simultaneously.
  • Page 12 COPY FEATURE: STAPLE/PUNCH HOLE Making copies with edge erased / image shifted To make copies with edge erased / image shifted 1. From the home screen, Select [Copy] 2. Scroll down and select [Edge Erase] 3. Select an option: All Edge : to erase all edge. •...

  • Page 13: Booklet Creation

    COPY FEATURE: BOOKLET COPYING Making a copy into a booklet format (Booklet Creation) You can make copies from multiple sheets of documents onto both sides of the paper in page order to make a booklet Optional feature: Folding & Staple 1.
  • Page 14 COPY FEATURE: REPEAT IMAGE Making an image printed repeatedly (Repeat Image) Make copy of a document / image onto 1 sheet of paper with repeated images. 1. From home screen, select [copy] 2. Scroll down and select [Repeat Image] 3. Select an option: Off –...
  • Page 15 COPY FEATURE: ANNOTATION Making copies with added Annotations To make copy with insertions of Stamp, Date and/or Page Number. Urgent Page 1 1. From home screen, select [copy] 2. Select Annotation 3. Select an option: Comment Date Page Numbers Press [On] to enable any annotation.
  • Page 16 COPY FEATURE: FOLDING FINISHER Making copies output folded To make copy output folded by half (Bi-Fold) or in three (C-Fold/Z-fold) Original 1. From the home screen, Select [Copy] 2. Select Folding 3. Select an option: - Z Fold* - C Fold* - Single Fold (Print Image Inside / Outside Fold) Select [Save]...
  • Page 17 COPY FEATURE: JOINT JOB Making copies using Joint Job with Sample set To make copy with different settings individually for each document pages or stack as one job. ……………….. --------------------- Xdefewrewm,mwekr ++=============== ljw jtkelwjtkjrewlktrj ]]][][][]d\[]\[\][ ewlkjtrlkewjrlkewjrk 2@@@@@@@@@@ 1. From the main home screen, select [Copy] 2.
  • Page 18 COPY FEATURE: FORM OVERLAY To make copies overlaying the first page of the document and the rest of the documents. 1 From the home screen, Select [Copy] Select [Form Overlay]> Select ON. Follow instruction to arrange document overlay Press <Start> button...
  • Page 19 COPY FEATURE: COPY (ID CARD) Making copies of ID Card To make copy of ID card both sides on the same page 1. Load ID Card on the platen glass (within A5 scan area) Close document cover. 2. From the home screen, Select [Copy(ID Card)] 3.
  • Page 20 SCAN FEATURES Store to Folder Page 21 Scan to Email Page 22 To scan documents and send the scanned data as To scan documents and save the scanned data to a an e-mail attachment folder located at the machine Folder Scan to PC Page 24 Output Format *...
  • Page 21 SCAN FEATURES: STORE TO FOLDER To Scan document to Folder (Store to Folder) You can scan and save the scanned data to a pre-registered folder and import to the computer using Store File Manager application. 1. Select [Store to Folder] 2.
  • Page 22 SCAN FEATURES: SCAN TO EMAIL To Scan document and transfer via Email You can scan & send the scanned data to selected recipients as e-mail attachment(s). 1. Select [Email] 2. [Address Book] or select [New Recipient] to enter email address(s) 3.
  • Page 23 SCAN FEATURES: SCAN TO PC To Scan document and transfer to PC ( Scan to PC) You can scan and transfer the scanned documents to a computer on the network. 1. Select [Scan] 2. Select [Address Book] select recipient in the address book 3.
  • Page 24 SCAN FEATURES: BOOK SCANNING To scan a book (Book Scanning) Book Scanning allows you to scan a book onto separate sheets of paper in page order and transfer via any scanning method [Folder/Email/PC] 1. Place book on the Platen Glass face down and Select preferred scan method e.g.
  • Page 25 PRINTING FEATURES Printing Job Types Page 27 Secure Print Page 28 Normal Print – prints as normal print Temporarily stores print jobs on the machine and Secure Print – stores print jobs on the machine and prints when User ID & password entered. prints when User D &...
  • Page 26 PRINT FEATURE: PAPER TRAY & PAPER TYPE) Making a direct from computer From the print application, choose the specific tray or paper type to be printed on From application, Select Print, select [printer properties] 2. On the [Tray/Output] select [Advance Tray Setting..] 3.
  • Page 27 PRINT FEATURES: SECURE PRINT Making a Secure Printing from computer To set a password to a print job and temporarily stores print memory on the machine and print upon entering password. From application, Select Print, select [printer properties] 2. On the [Paper/Output] > select [Job Type] : Secure Print 3.
  • Page 28 PRINT FEATURES: 2 SIDED PRINT Making a 2-sided print (optional - Finishing) Files can be printed into 2 sided format with 2 sided flip on long edge or flip on short edge. From application, Select Print, select [printer properties] 2. On the [Paper/Output] > select [2-Sided Print] 2 Sided Print 2 Sided Flip on Short Edge...
  • Page 29 PRINT FEATURES: BOOKLET PRINTING Making a booklet print from computer Booklet printing enables multi-page files printed 2-sided booklet format arranged in ascending order, and fold to form a booklet. From application, Select Print, select [printer properties] 2. Under [basic] tab Select [Booklet /Poster/ Mixed Size Originals…] >...
  • Page 30 PRINT FEATURES: PAGES PER SIDE Prints multi pages in single sheet of paper You can print a multi-page files into a single print using Multiple-Up (from 2 Up to 32 Ups) From application, Select Print, select [printer properties] 2. Select [Pages Per Sheet (N-Up)] Select required output: 1 Page Up to 32 Pages Up...
  • Page 31 PRINT FEATURES: FOLDING Making a Z folded or C folded printout Fold your documents into 2-fold, or 3-fold From application, Select Print, select [printer properties] 2. Select [Tray/Output] tab > Select Folding/Booklet Printing Select required Fold Options [bi-fold single sheets] [bi fold multiple sheets] [C fold] [Z tri fold]...
  • Page 32 PRINT FEATURES: WATERMARK Making a printout with Watermarks Add watermark onto your printed document From application, Select Print, select [printer properties] 2. Select [Layout/Watermark] Select [Watermark] Select required option: Confidential / Circulate, Urgent, etc.. Or Select [New] to create new Watermark 3.
  • Page 33 MAINTENANCE: REPLACING CONSUMABLES Clearing Paper Jams Replacing Toner Container Note: The machine will prompt a message when it is time to replace a new toner cartridge Caution: Place a few sheets of paper on the floor before removing the cartridge. This will allow any excess Toner to fall on the paper.
  • Page 34 MAINTENANCE: REPLACING CONSUMABLES Clearing Paper Jams Replacing Finisher Stapler Cartridge 1: Ensure the machine is idle 3: Hold the lever and remove the 2: Hold [R1] and move the stapler before opening the Finisher cartridge unit to the front Door. 4: Pinch both sides of the empty 5.
  • Page 35 MAINTENANCE Clearing Paper Jams Paper Jams in the Document Feeder (DADF) 3) If the document is caught in the 1) Ensure the machine is not 2) Open the left cover until it stops and entry, remove the jammed operating. Pull up the front remove the document paper from the left cover handle of the top cover and...
  • Page 36 MAINTENANCE Clearing Paper Jams Paper Jams in Transfer Module (Front Cover Areas) WARNING! The machine parts are very hot to touch and remove. Never touch a labeled area indicating 'High Temperature' 'Caution' to avoid burns. 1. Ensure machine is idle. Gently open front cover. 2.
  • Page 37 MAINTENANCE Clearing Paper Jams Paper Jams in Booklet Maker WARNING! The machine parts are very hot to touch and remove. Never touch a labeled area indicating 'High Temperature' 'Caution' to avoid burns. 1. Ensure machine is idle. Gently open front cover. 2.
  • Page 38 To Check Billing Information / Supplies Status Important: BILLING INFORMATION Billing Information is different from On the Home interface select <Device > button. Usage Counters CWIS properties. Select [Billing Information] tab Total Impressions : Total number of Copy + Print User should submit Copy Service: Total number of copies made meter readings based...
  • Page 39 To Set Settings for Bypass Tray Important: Tray Setting Tray setting for On the Home interface select <Device> button. bypass and additional stacker/tray must be Select [Paper Tray Settings] set manually to avoid Select preferable tray eg: [Tray 5] from paper jam or the quality of your output.
  • Page 40 Consumables Part No. Customer Replaceable Units Part Number Yield Toner Cartridge Black CT203035 71,500 prints/ box Waste Toner Bottle CWAA1024 250,000 prints/ box Fuser Cleaning Cartridge CWAA1032 400,000 prints/ box Drum Cartridge Black CT351144 1000,000 cycle For Finisher D6 only: R1 Staple Cartridge CWAA0677 4 Cartridges/ box...
  • Page 41 To Check / Cancel Jobs To check current, pending and completed jobs or to cancel print jobs. From Home Service Screen, press on [Jobs] The [Jobs] screen displays the current or pending jobs . To view the job status from the listing. a: Completed = Successful b: Completed with Error = Unsuccessful...
  • Page 42 Support & Download (Drivers & Self-help) Check out FUJIFILM Business Innovation website @ fujifilm.com/fbmy...
  • Page 43 For Green Report, kindly Self-Register your account 30 days after activation date. Please follow the steps below to register. Open a web browser and key in the below address https://service-fb.fujifilm.com/direct_app/ An e-mail notification with the personalized URL will be sent via e-mail...
  • Page 44 Click on the URL and you will be redirected to the following link. Proceed with the application by accepting the Legal Agreements. Complete the Online Application form to Continue. Your application will be processed. Thank you.
  • Page 45 This Quick User Guide is printed on FUJIFILM Revoria Press E1136/E1125/E1110/E1100 Copyright Reserved © 2022 by Customer Training Department FUJIFILM Business Innovation Asia Pacific Pte. Ltd. Printed in Malaysia For Service & Supplies Enquiries (Nationwide) Toll Free : 1-300-88-1163 Online support: fujifilm.com/fbmy...
