Adjusts the scale of the data in the M-Mode window. A faster sweep speed will
increase the speed and decompress or "stretch out" the clip image.

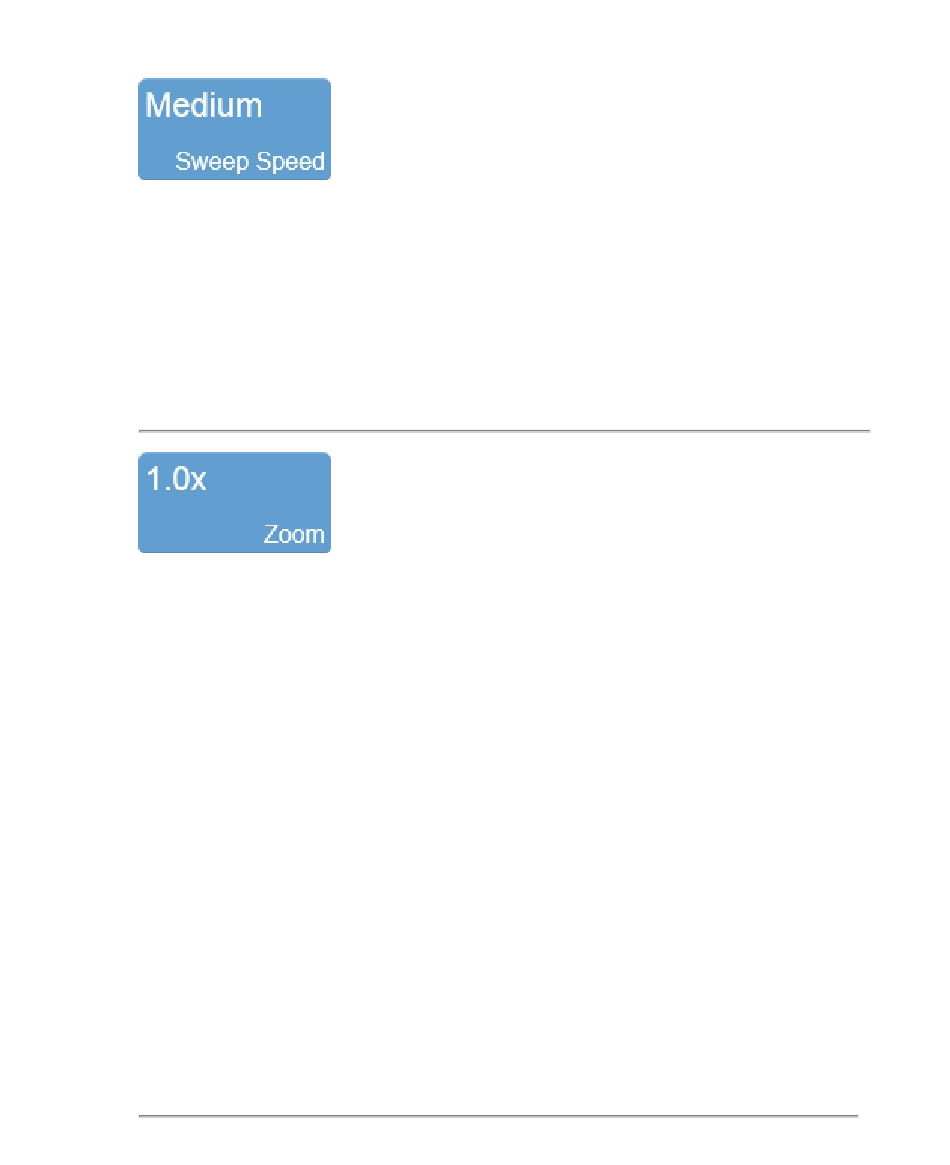

To set the sweep speed, tap the Sweep Speed button and select Fast, Medium, or
Slow.
You can also use a horizontal pinch motion within the M-Mode window to adjust the
sweep speed.
Use this control to zoom in on the M-Mode window in review.
Tap the Zoom button to activate the adjustable zoom control. Tap the In or Out button
or drag the slider. The zoom factor is displayed within a range from 1.0x to 8.0x.
You can also use a two finger spread gesture within the image area to zoom in; once
activated, four arrows will be displayed indicating zoom is on. To zoom out, use a two
finger pinch gesture.
To view other areas of the zoomed image, pan the image by dragging one finger in any
direction within the image area.
A magnifier icon and location guide is shown in the image on the clinical display. The
location guide displays the original image area with a white inner area that represents
the visible zoom area.
