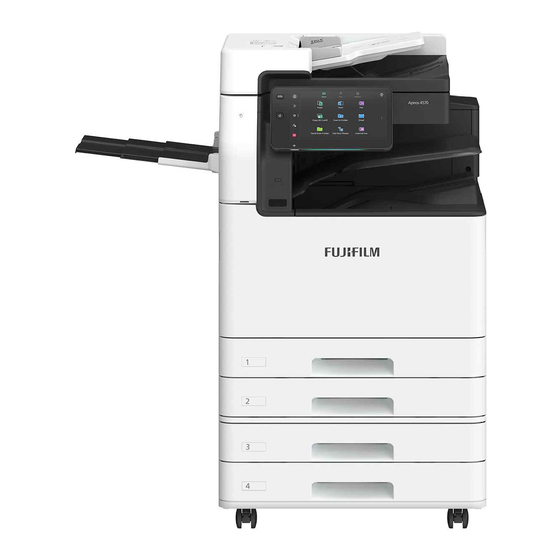

FujiFilm Apeos 4570 Reference Manual
  1. Manuals
  2. Brands
  3. FujiFilm Manuals
  4. All in One Printer
  5. Apeos 4570
  6. Reference manual

FujiFilm Apeos 4570 Reference Manual

Hide thumbs Also See for Apeos 4570:
Table of Contents

Advertisement

Quick Links

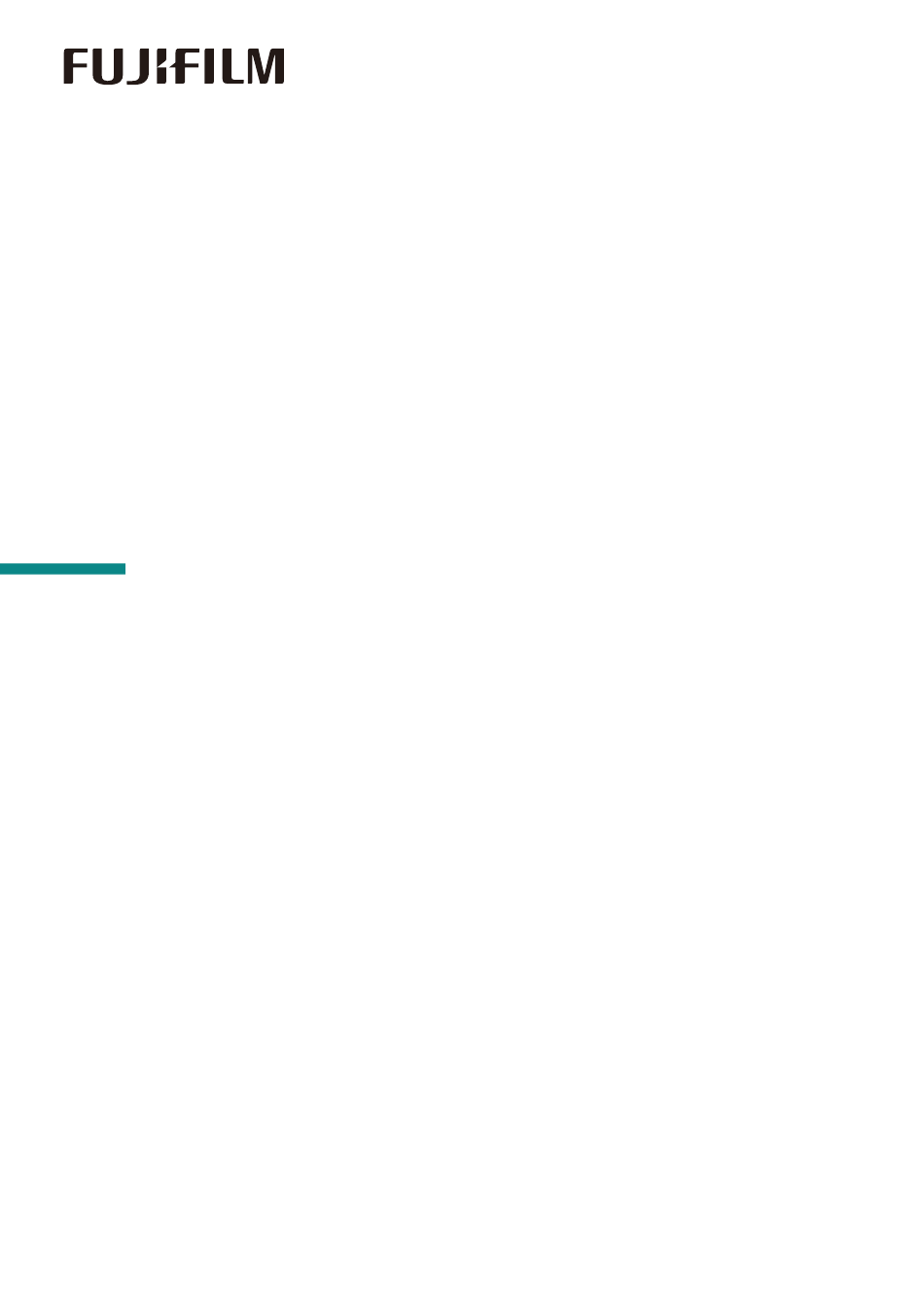

Apeos™ 4570
Apeos 3570
Reference Guide
Optional Units
October 2021 GM1360E1-1 Edition 1 FUJIFILM Business Innovation Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Apeos 4570 and is the answer not in the manual?

Questions and answers

Related Manuals for FujiFilm Apeos 4570

Summary of Contents for FujiFilm Apeos 4570

  • Page 1 Apeos™ 4570 Apeos 3570 Reference Guide Optional Units October 2021 GM1360E1-1 Edition 1 FUJIFILM Business Innovation Corp.
  • Page 2 Preface A guide describing the operations for optional units, such as the Finisher. Refer Descriptions for the following optional products are provided in different guides. Envelope Tray, Extra Center Tray, Left-Side tray, : “Reference Guide Main Unit”  Wireless kit, print / scan / FAX function-related products: “Reference Guide - Operations” ...

  • Page 3: Device Components

    High Capacity Feeder B1 Device Components Component Function Remaining Volume Display You can check the remaining paper volume. High Capacity Tray (Paper Load paper here. Tray 6) Top Cover Open this cover to clear paper jams. Main specifications Item Specification Paper size A4 , Letter , JIS B5 55 to 216...

  • Page 4: Paper And Other Media

    Paper and Other Media After loading paper, configure the Paper Tray settings on the Home screen. Refer For details, refer to “Setup” in “Reference Guide - Operations”. The top face of loaded paper is the surface printed on. Pull out the Paper Tray until it stops. When paper is already loaded in the tray, take out the paper.
  • Page 5 Remove the screw for the guide in front and remove the guide from the Paper Tray . Insert the protrusions under the guide into the Paper Size holes. Insert the Paper Tray protrusions into the Paper Size holes on top of the guide and tighten the screw. Pull the handle for the end guide up ( ), align with the Paper Size while moving the handle along the groove (...
  • Page 6 Close the end guide completely. Push in the Paper Tray . Setting special paper and other media Hole punched paper Paper orientation: Load paper with holes facing the right side when viewed from the front of the machine 2 High Capacity Feeder B1...

  • Page 7: Paper Jams

    Paper Jams If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on the screen to remove the jammed paper. Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from the machine, remove all the torn pieces making sure that none remain inside the machine.

  • Page 8: Paper Tray

    Pull the handle ( ) and open the cover ( Remove the jammed paper. Close the cover. Move the unit to the right and connect it with the main unit. Paper Tray Pull out the Paper Tray until it stops. Remove the jammed paper.
  • Page 9 High Capacity Feeder B2 Device Components Component Function High Capacity Tray (Paper Load paper here. Tray 6) Top Cover Open this cover to clear paper jams. Remaining Volume Display You can check the remaining paper volume. Main specifications Item Specification Paper size A4 , Letter , JIS B5 55 to 216...
  • Page 10 Paper and Other Media After loading paper, configure the Paper Tray settings on the Home screen. Refer For details, refer to “Setup” in “Reference Guide - Operations”. The top face of loaded paper is the surface printed on. Pull out the Paper Tray until it stops. When paper is already loaded in the tray, take out the paper.
  • Page 11 Remove the screw for the guide in front and remove the guide from the Paper Tray. Insert the protrusions under the guide into the Paper Size holes. Insert the Paper Tray protrusions into the Paper Size holes on top of the guide and tighten the screw. Pull the handle for the end guide up ( ), align with the Paper Size while moving the handle along the groove (...
  • Page 12 Close the end guide completely. Push in the Paper Tray. Setting special paper and other media Hole punched paper Paper orientation: Load paper with holes facing the right side when viewed from the front of the machine 3 High Capacity Feeder B2...
  • Page 13 Paper Jams If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on the screen to remove the jammed paper. Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from the machine, remove all the torn pieces making sure that none remain inside the machine.
  • Page 14 Pull the handle ( ) and open the cover ( Remove the jammed paper. Close the cover. Move the unit to the right and connect it with the main body. Paper Tray Pull out the Paper Tray until it stops. Remove the jammed paper.
  • Page 15 Finisher A2 Device Components Component Function Center Tray Outputs are delivered here. Extension Tray, Guide Wire This prevents the ejected paper from falling out. Top Cover Open this cover to clear paper jams. Front Cover Open this cover to replace staples or remove jammed staples. Staple Cartridge This unit is used to replace staples.
  • Page 16 Main specifications Item Specification Type Sort (Offset available) / Stack (Offset available) Paper size Standard size A3, 11 x 17" Postcard (by Japan Post) Paper weight 52 to 256 (g/m Tray capacity No staple (sheets) With staples 30 copies or 500 sheets JIS B4 (sheets) A3 or greater (sheets)

  • Page 17: Outputting Paper

    Number of sheets that can be stapled (Approximation: For A4) Uncoated Coated Paper weight (g/m 52 to 90 91 to 105 106 to 128 129 to 150 151 to 176 177 to 220 221 to 256 -: Ejection is not available. Outputting Paper Extension Tray To eject SEF paper, pull out the Extension Tray and guide wire.

  • Page 18: Staple Cartridge

    Staple Cartridge For the replacement method, refer to the box of the consumable. Staple Jams If paper is not being stapled or if staples are bent, follow the procedures mentioned in the following pages. If the issue isn’t resolved even after the procedure, contact your local representative. Paper is not stapled Staple is bent If the staple looks like any of the following images, contact your local representative.
  • Page 19 Remove the cartridge. Check to make sure that there is no staple inside of the Finisher. Push the metal part of the cartridge up. Remove the jammed staple ( ) and return the pushed up metal part back to the original position ( Insert the cartridge into the original position.

  • Page 20: Top Cover

    Top Cover Open the Upper Cover ( ) and remove the jammed paper Close the cover. Finisher Connection Open the Front Cover. Turn knob in the right direction ( ) and send the jammed paper to the Center Tray side ( Open the Upper Cover ( ) and remove paper ( Close the Upper Cover.
  • Page 21 Finisher B Device Components Component Function Top Cover Open this cover to clear paper jams. Side Cover Open this cover when replacing staples for saddle stitch. Finisher Tray Finished paper is ejected. Staple cartridges for saddle This unit is used to replace staples for saddle stitch. There are stitch two.
  • Page 22 Main specifications Item Specification Type Sort (Offset available) / Stack (Offset available) Paper size Standard size A3, 11 x 17” Paper weight 52 to 300 (g/m Tray capacity No staple (sheets) 2,000 JIS B4 or 1,000 greater Mixed Size Stacking With staples 100 copies or 1,000 sheets JIS B4 or...
  • Page 23 Item Specification Staple-Free Staple Maximum number 10 (Same weight, same size) of sheets of paper (sheets) Note This value applies if paper of 80 g/m or less is used. Paper size Standard size A3, 11 x 17" Paper weight 60 to 105 (Uncoated) (g/m Stapled location 1 location, 2 locations...
  • Page 24 Number of sheets that can be stapled (approximation) Staple Staple-Free Staple Paper weight (g/m Uncoated Coated Uncoated Coated 52 to 59 60 to 80 81 to 90 91 to 105 106 to 128 129 to 150 151 to 176 177 to 220 221 to 256 -: Ejection is not available.
  • Page 25 Staple Cartridge Replacing Cartridge Consumables recommended by our company are manufactured under the standards suitable for this machine. Using consumables not recommended by our company may affect print quality or performance provided by the product. Use consumables that our company recommends for this machine.
  • Page 26 Staple cartridge for side stitch Note In case of jammed staples when using the Staple cartridges for saddle stitch, contact your local representative. When you are removing the jammed staples from the staple cartridge when [Staple-Free] is set in > [Device] > [Maintenance] > [Adjust Finisher] > [Stapling Preference], on the message screen or by navigating from [Device Status] >...
  • Page 27 Push the metal part of the cartridge up. Remove the jammed staple ( ) and return the pushed up metal part back to the original position ( Insert the cartridge into the original position. Hold the handle and lightly press it up until you hear a click. Close the cover.
  • Page 28 Center Tray Cover Open the Center Tray Cover ( ) and remove the jammed paper ( Close the Center Tray Cover. 5 Finisher B...

  • Page 29: Folder Unit

    Folder Unit Device Components Component Function Tri-Fold Output Tray Button Press the button to remove paper from the Tri-Fold Output Tray. The Tri-Fold Output Tray is opened when the lamp stops blinking and comes on and the lock is released. Cover Open this cover to clear paper jams.
  • Page 30 Main specifications Item Specification Z-Fold Half Sheet Paper size A3, 11 x 17”, JIS B4 60 to 90 (Uncoated) Paper weight (g/m Tri-fold Paper size A4, Letter 60 to 90 (Uncoated) Paper weight (g/m Tray capacity 40 sheets Note This value applies if our C paper is used.
  • Page 31 Paper Jams If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on the screen to remove the jammed paper. Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from the machine, remove all the torn pieces making sure that none remain inside the machine.
  • Page 32 Right side Open the handle [2g] to the right ( ), turn the knob [2c] to the left ( ), and remove the jammed paper ( Return the handle [2g]. Tri-Fold Output Tray Pull out the Tri-Fold Output Tray [2d]. Open the handle [2e] to the right ( ), turn the knob [2c] to the left (...
  • Page 33 If it is difficult to remove the paper, open the handle [2f] to the right ( ), turn the knob [2c] to the left ( ), and remove the jammed paper ( Return the handle [2f]. Return the Tri-Fold Output Tray [2d] to the original position.
  • Page 34 Finisher C In this guide, “Finisher C4”, “Finisher C4 with Booklet Maker”, “Finisher C5” and “Finisher C5 with Booklet Maker” are generally referred to as “Finisher C”. Device Components Component Function Hole Punch Waste Container Punched pieces go in here. Top Output Tray Outputs are delivered here.
  • Page 35 Main specifications Item Specification Type Top Output Tray Sort (Offset available) / Stack (Offset available) Finisher Tray Sort (Offset available) / Stack (Offset available) Booklet Tray Sort / Stack Paper size Top Output Tray Standard size 12 x 19" Postcard (by Japan Post) Finisher Tray Standard size 12 x 19"...
  • Page 36 Item Specification Staple Maximum number of sheets of paper (sheets) Note This value applies if paper of 90 g/m or less is  used.  Up to 65 sheets are possible if 65 sheet cartridge is installed. Paper size Standard size A3, 11 x 17"...
  • Page 37 Item Specification Dimensions Finisher Width 650 x Depth 692 x Height 1,054 (mm) Finisher with Booklet Maker Width 650 x Depth 692 x Height 1,054 Weight (kg) Finisher C4 Finisher C4 with Booklet Maker Finisher C5 Finisher C5 with Booklet Maker Number of sheets that can be stapled (approximation) Side Stitch Saddle stitch...
  • Page 38 Staple Cartridge Replacing Cartridge Consumables recommended by our company are manufactured under the standards suitable for this machine. Using consumables not recommended by our company may affect print quality or performance provided by the product. Use consumables that our company recommends for this machine.
  • Page 39 Staple cartridge for side stitch On the message screen or by navigating from > [Device Status] > [Supplies] > [Staple Cartridge (R1)], first press [Confirm/Supply], and then remove the jammed staples according to the instructions on the screen. Confirm that the machine is not operating, and open the Cover.
  • Page 40 Remove the jammed staple ( ) and return the pushed up metal part back to the original position ( Insert the cartridge into the original position. Hold the handle and lightly press it up until you hear a click. Close the cover. Staple cartridges for saddle stitch Confirm that the machine is not operating, and open the Cover.
  • Page 41 Insert the cartridge into the original position. Hold the handle and lightly press it up until you hear a click. Note Align the “” marks. Slowly insert Booklet Maker [4] all the way. Close the cover. 7.2 Staple Cartridge...

  • Page 42: Center Tray

    Paper Jams If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on the screen to remove the jammed paper. Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from the machine, remove all the torn pieces making sure that none remain inside the machine.
  • Page 43 Exit Finisher Tray Remove the paper that is jammed in the Exit. Booklet Tray Open the Cover. Turn the knob [4a] to the right ( ) and remove the paper that is jammed in the Exit of the Booklet Tray ( Close the cover.
  • Page 44 Handle [3a] Open handle [3a] upward ( ) and remove the jammed paper ( Return the handle [3a]. Handle [3d] Open the handle [3d] to the right ( ) and remove the jammed paper ( Return the handle [3d]. Booklet Maker Hold the handle and pull out Booklet Maker [4].
