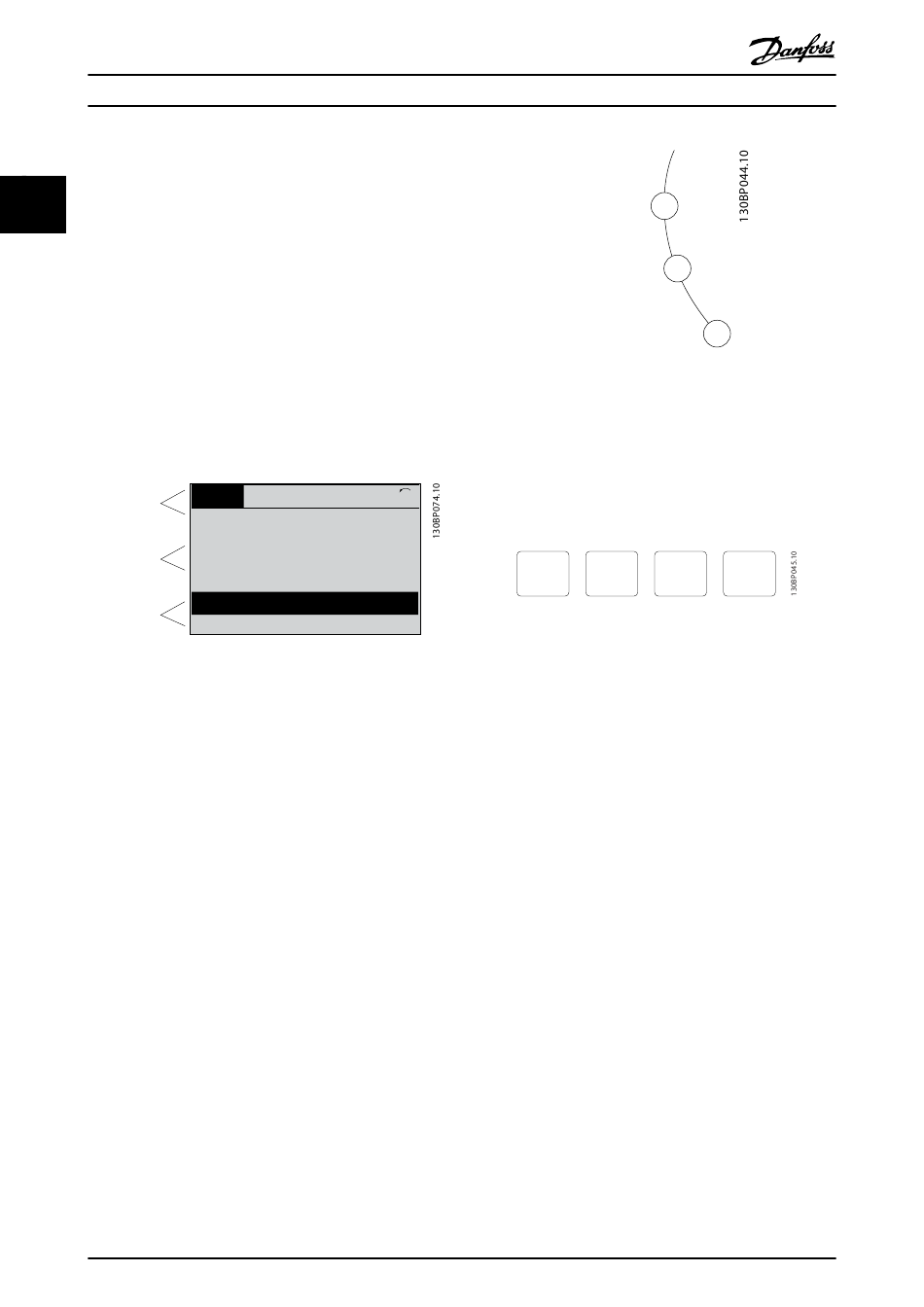

2.1.1 The LCD-Display
2
2
The LCD-display has back light and a total of 6 alpha-
numeric lines. The display lines show the direction of
rotation (arrow), the chosen Set-up as well as the
programming Set-up. The display is divided into 3 sections.
Top section shows up to 2 measurements in normal
operating status.
The top line in the Middle section shows up to 5
measurements with related unit, regardless of status
(except in the case of alarm/warning).
Bottom section always shows the state of the frequency
converter in Status mode.
Top section
Middle section
Bottom section
Illustration 2.2
The Active Set-up (selected as the Active Set-up in
0-10 Active Set-up) is shown. When programming another
Set-up than the Active Set-up, the number of the
programmed Set-up appears to the right.
Display contrast adjustment
Press [Status] and [
Press [Status] and [
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via 0-60 Main
Menu Password or via 0-65 Quick Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24 V
external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
12
VLT
Status
43 RPM
5.44 A
25.3kW
1.4 Hz
2.9%
! Pwr.card temp (W29)
Auto Remote Running
▲
] for darker display
▼
] for brighter display
MG33ME02 - VLT
®
AutomationDrive Programmming Guide
Illustration 2.3
LCP Keys
The control keys are divided into functions. The keys
below the display and indicator lamps are used for
parameter Set-up, including choice of display indication
!
1(1)
during normal operation.
Status
Illustration 2.4
[Status] indicates the status of the frequency converter
and/or the motor. Choose between 3 different readouts by
pressing the [Status] key: 5 line readouts, 4 line readouts
or Smart Logic Control.
Use [Status] for selecting the mode of display or for
changing back to Display mode from either the Quick
Menu mode, the Main Menu mode or Alarm mode. Also
use the [Status] key to toggle single or double read-out
mode.
[Quick Menu] allows quick access to different Quick Menus
such as
•
My Personal Menu
•
Quick Set-up
•
Changes Made
•
Loggings
Use [Quick Menu] for programming the parameters
belonging to the Quick Menu. It is possible to switch
directly between Quick Menu mode and Main Menu mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing down
the [Main Menu] key for 3 seconds. The parameter shortcut
allows direct access to any parameter.
®
is a registered Danfoss trademark
On
Warn.
Alarm
Quick
Main
Alarm
Menu
Menu
Log
