How to Programme

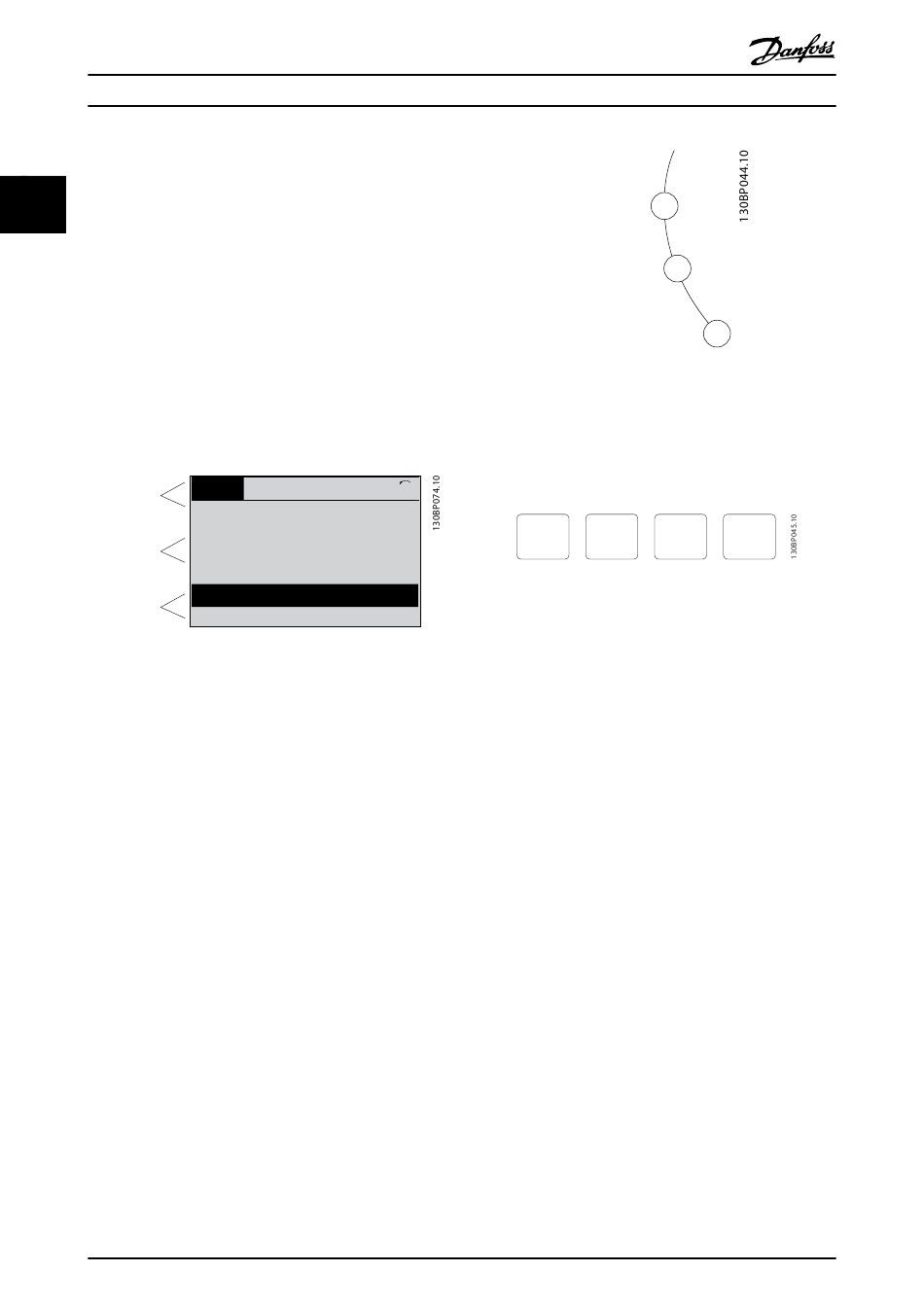

2.1.1 The LCD-Display

2 2
The LCD-display has backlight and a total of 6 alpha-
numeric lines. The display lines show the direction of
rotation (arrow), the selected set-up as well as the
programming set-up. The display is divided into 3 sections.
Top section
shows up to 2 measurements in normal operating status.
Middle section
The top line shows up to 5 measurements with related
unit, regardless of status (except in the case of alarm/
warning).
Bottom section
always shows the state of the frequency converter in
Status mode.
Top section
Middle section
Bottom section
Illustration 2.2 Bottom Section
The active set-up (selected as the active set-up in
0-10 Active Set-up) is shown. When programming another
set-up than the active set-up, the number of the
programmed set-up appears to the right.
Display contrast adjustment
Press [Status] and [
Press [Status] and [
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via 0-60 Main
Menu Password or via 0-65 Quick Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24 V
external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
12
VLT
Status
43 RPM 5.44 A 25.3kW
1.4 Hz
2.9%
! Pwr.card temp (W29)
Auto Remote Running
▲
] for darker display
▼
] for brighter display
®
AutomationDrive FC 301/302 Programming Guide
Illustration 2.3 Indicator lights (LEDs)
LCP Keys
The control keys are divided into functions. The keys
below the display and indicator lamps are used for
parameter Set-up, including choice of display indication
! 1(1)
during normal operation.
Status
Illustration 2.4
[Status]
indicates the status of the frequency converter and/or the
motor. Select between 3 different readouts by pressing
[Status]: 5 line readouts, 4 line readouts or Smart Logic
Control.
Press [Status] for selecting the mode of display or for
changing back to Display mode from either the Quick
Menu mode, the Main Menu mode or Alarm mode. Also
use [Status] to toggle single or double read-out mode.
[Quick Menu]
allows quick access to different Quick Menus such as
•
My Personal Menu
•
Quick Set-up
•
Changes Made
•
Loggings
Press [Quick Menu] to program the parameters belonging
to the Quick Menu. It is possible to switch directly
between Quick Menu mode and Main Menu mode.
[Main Menu]
is used for programming all parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing down
[Main Menu] for 3 seconds. The parameter shortcut allows
direct access to any parameter.
[Alarm Log]
displays an Alarm list of the 5 latest alarms (numbered A1-
A5). To obtain additional details about an alarm, use the
arrow keys to manoeuvre to the alarm number and press
MG33MH02 - Rev. 2013-09-30
On
Warn.
Alarm
Quick Main Alarm
Menu Menu Log
