System Features

4-3-5-1

Control Panel

1.) TGC
2.) New Patient
3.) App selection/Preset Key
4.) Report & End Exam
5.) Imaging/Coments/Clear/Measurement Keys
6.) Mode/Gain/Auto Keys/Zoom/Ellipse
7.) Depth
8.) Left/Right/ATO/THI
9.) Freeze
10.)Reverse
11.)Print Keys
12.)User Defined Keys
13.)A/N Keyboard
14.)Sub Menu Keys
15.)NTUPI/Top Menu Keys
PROPRIETARY TO GE
8
EVISION

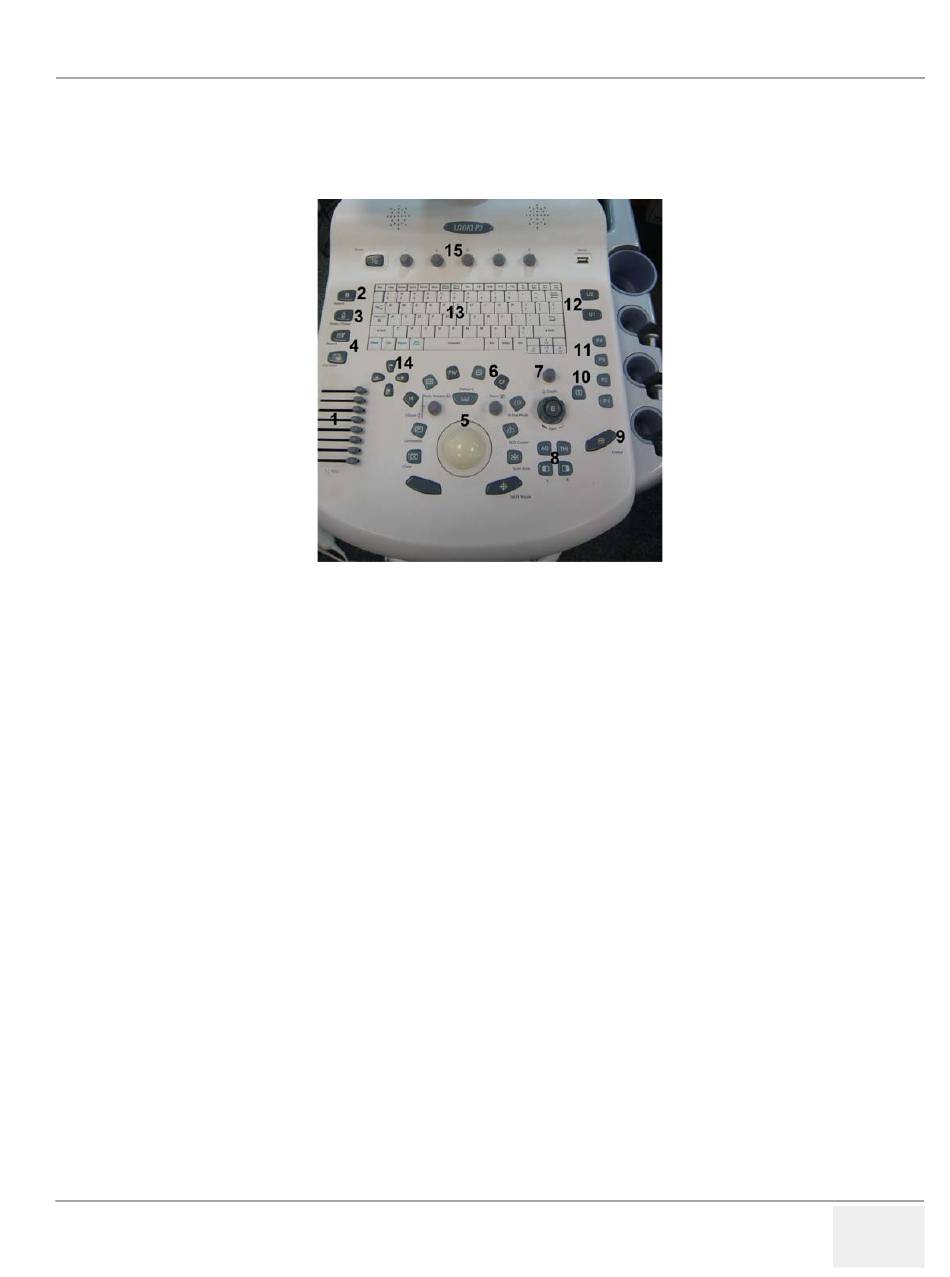

Figure 4-5 Control Panel Tour
