LCD Arm Cover (FRU P/N: 5310093)

This is a description on how to remove and replace the LCD Arm cover set.

Tools

8-2-5-1
• Common Phillips screwdrivers
8-2-5-2

Needed Manpower

• 1 person, 15 minutes
8-2-5-3

Preparations

• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-2-5-4

Removal procedure

1) Remove LCD Power Cable cover & LCD Signal Cable.
2) Remove LCD Arm cover Assembly .as shown below
8-2-5-5

Mounting procedure

1.) Install the new parts in the reverse order of removal.
8-2-5-6

Functional Checkout Procedure

Functional Test
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
8-8
PROPRIETARY TO GE
8
EVISION
a b

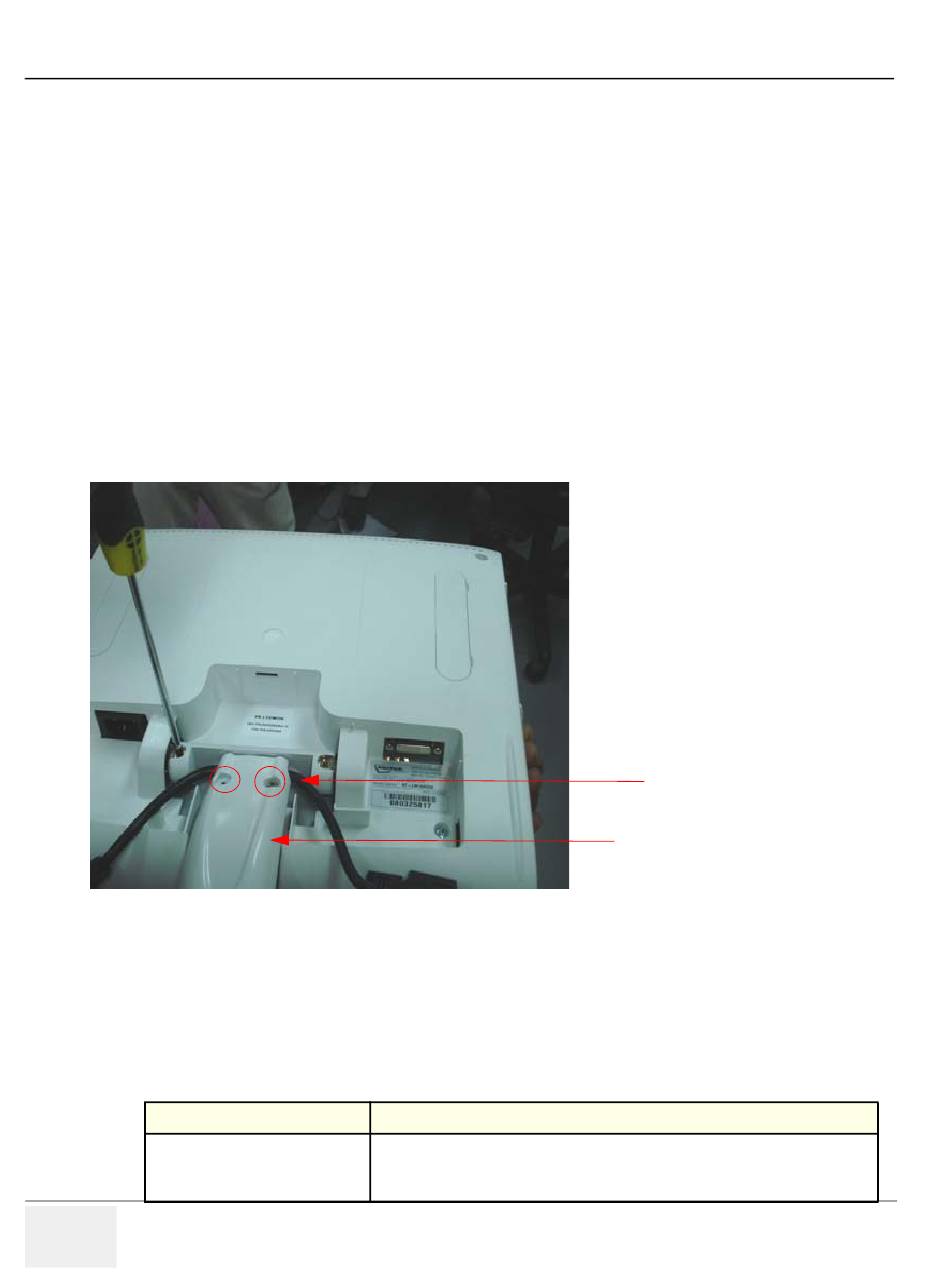

Figure 8-8 LCD Arm cover & monitor neck cover
Service Manual Direction 5308917-100, Section 8-2-4. Equipment passes all required
Section 8-2 - Disassembly/Re-assembly of LOGIQ P3
LOGIQ P3 S
Figure 8-8 on page 8-8
Remove two screws of
Arm Cover
Arm Cover
Debrief Script
tests and is ready for use.
