Full Backup - GE LOGIQ P3 PRO Service Manual

GE
D 5308917-100, R
IRECTION
4-3-14-4 Archiving Images (cont'd)
11.)Press Finish after Backup/Move complete.
All databases, presets and images should now be saved to removable media.
4-3-14-5

Full Backup

1.) Connect the USB HDD to system.
2.) Select Backup/Restore, then Emergency Repair Disk.
3.) Select "Reminder Dialog Interval Days".
Reminder Dialog
Interval Days
4-32
PROPRIETARY TO GE
8
EVISION

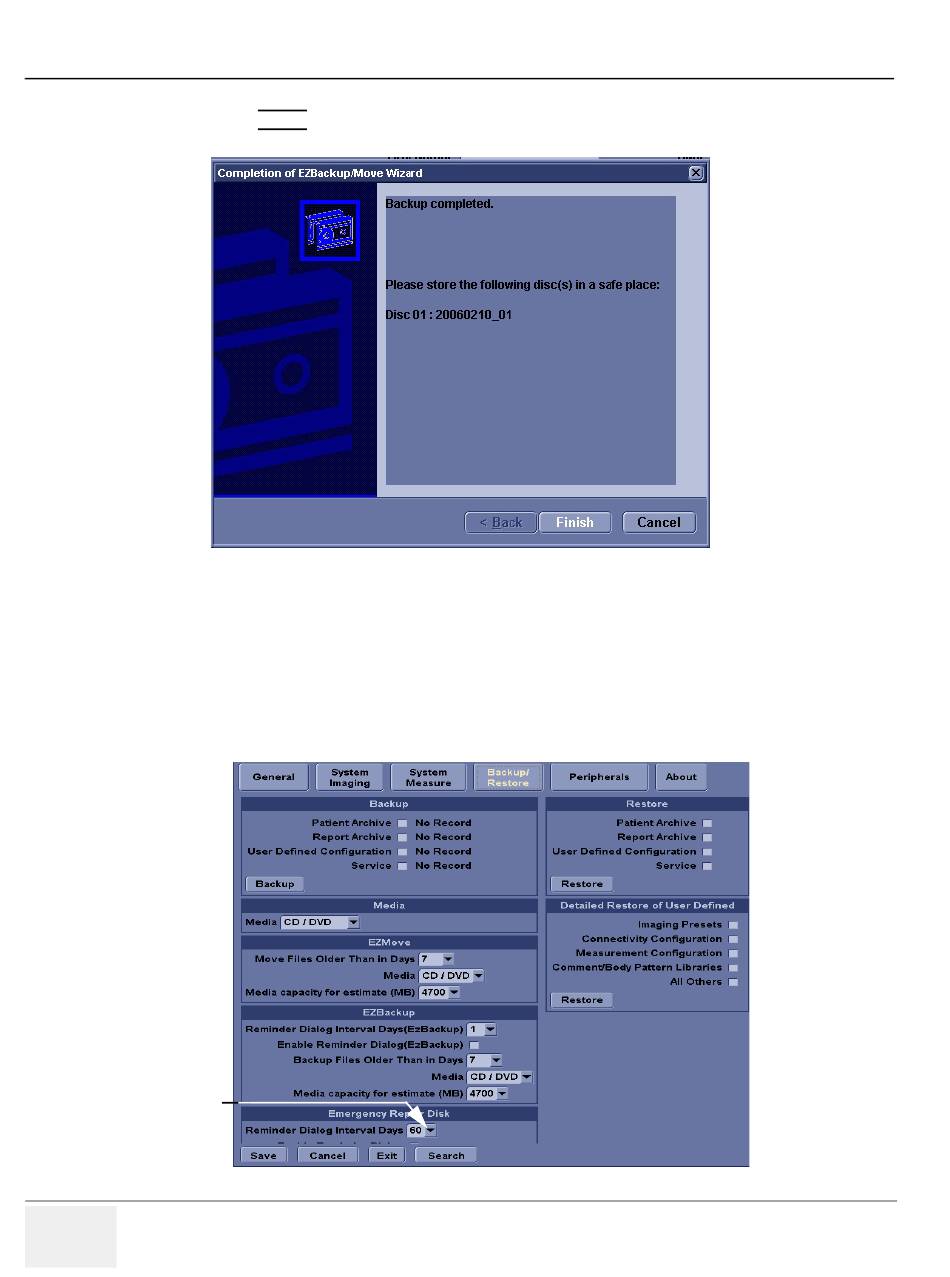

Figure 4-24 EZBackup/Move complete
Figure 4-25 Emergency Repair Disk
Section 4-3 - General Procedure
LOGIQ P3 S M
ERVICE ANUAL
