LCD Assy (FRU P/N: 5315112-1 - LP3, 5396925-1 - LP3 BT10)

Purpose: This is a description on how to remove and replace the LCD Assy.
8-2-4-1

Tools

• Common Phillips screwdrivers
• Allen/Unbraco wrench
8-2-4-2

Needed Manpower

• 1 person, 11 minutes + travel
8-2-4-3

Preparations

• Shut Down the System Switch of the circuit breaker at the bottom rear side of the system.
8-2-4-4

Removal procedure

1) Shut down the Logiq P3 system.
2) LCD monitor rearcover of Logiq P3 system.as shown below
LCD power
cable cover
3) Bend down the LCD monitor by 90 degree.
4) Bend the LCD monitor as shown below
8-4
PROPRIETARY TO GE
8
EVISION

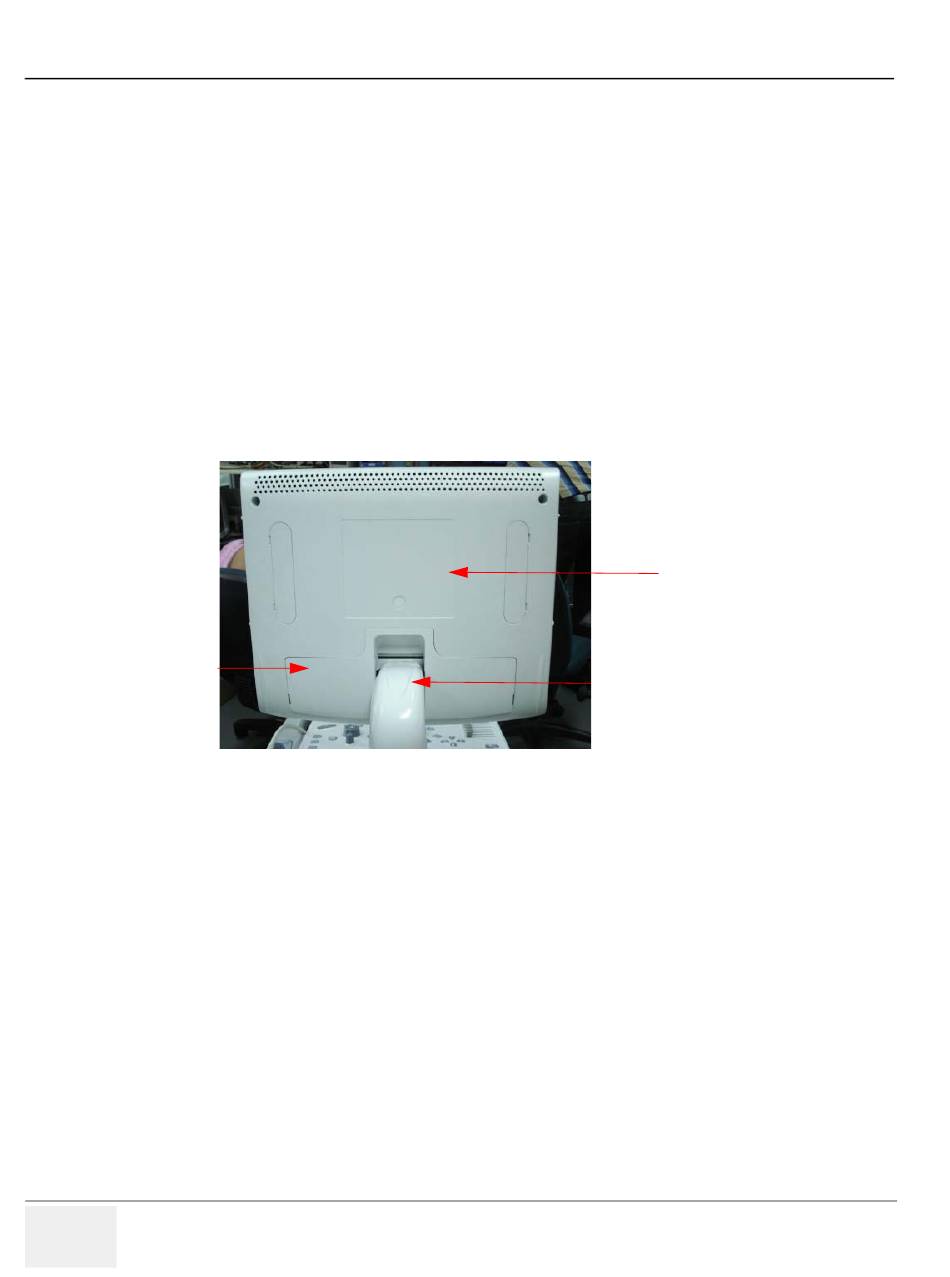

Figure 8-1 LCD rear cover
Section 8-2 - Disassembly/Re-assembly of LOGIQ P3
Figure 8-1 on page 8-4
LCD Arm cover
Figure 8-2 on page 8-5
LOGIQ P3 S M
ERVICE
LCD Rear cover
ANUAL
