3) Remove USB cable from MST board Refer
LOGIQ P3
4) For LOGIQ P3 - Remove the FRC cable from MST board Refer
5) For LOGIQ P3BT10 - Remove the Video signal (VGA) cable from MST board as shown below.
PROPRIETARY TO GE
8
EVISION
USB cable

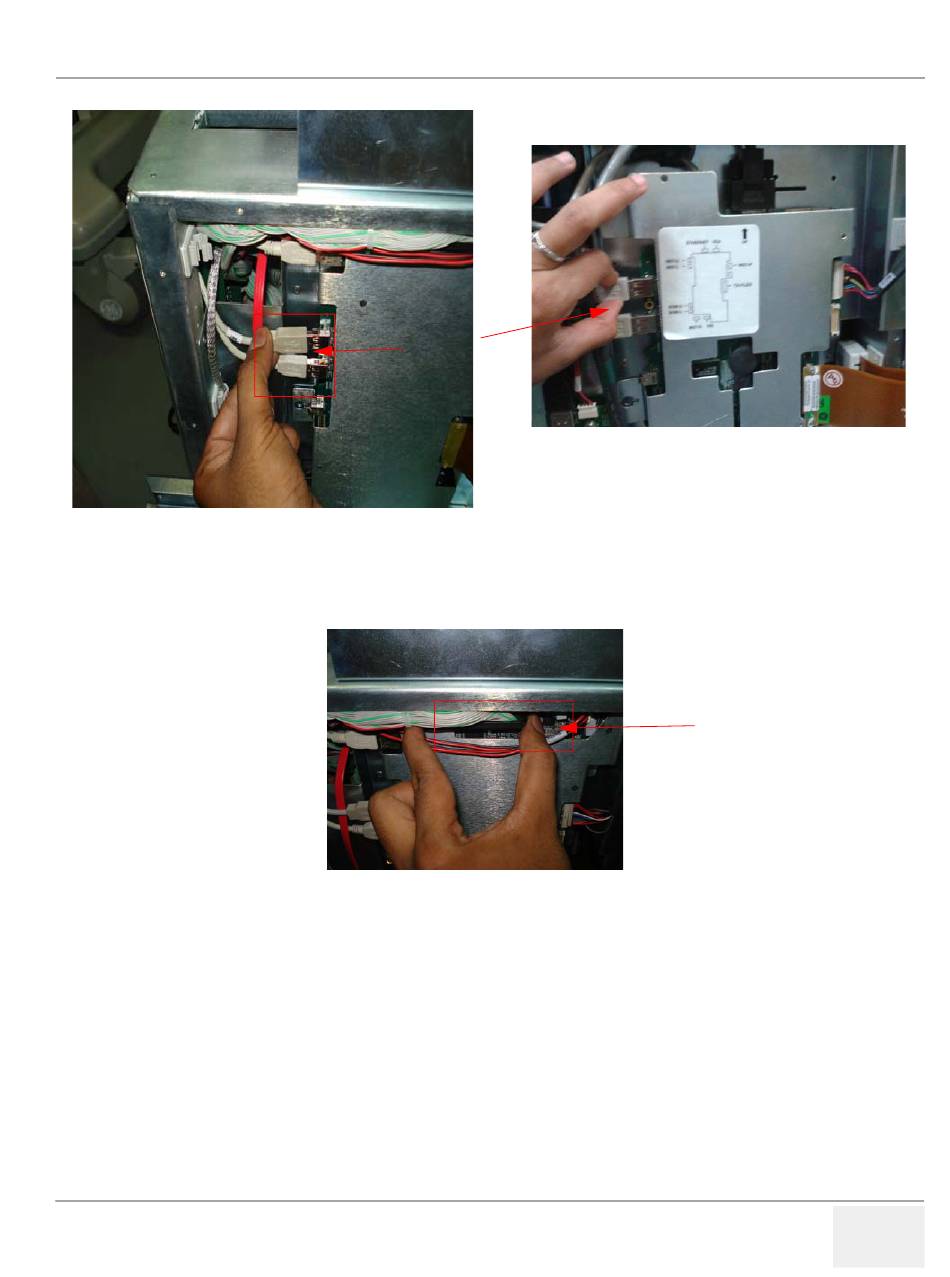

Figure 8-55 Removing USB cable of MST board
Figure 8-56 Removing FRC cable of MST board (LP3)
Chapter 8 Replacement Procedures
Figure 8-55 on page 8-49
LOGIQ P3 BT
Figure 8-56 on page 8-49
LOGIQ P3 S M
ERVICE ANUAL
FRC cable
