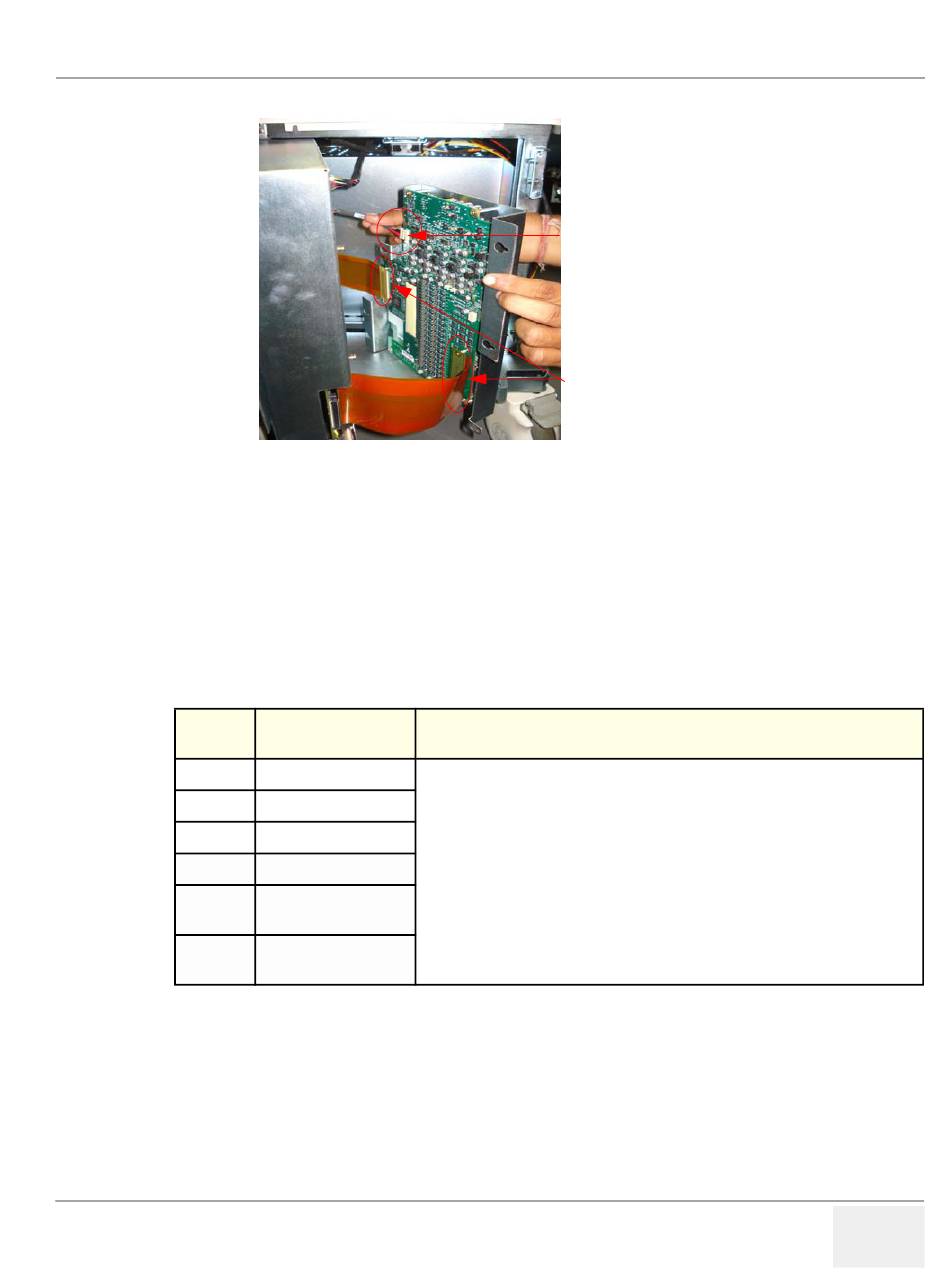

5) Remove the two flexi cable from TX board as shown below
6) To Remove the Flex cable remove one side fron connector board & other side on TX PWA.
7) To remove the TX, remove the 7 fasteners holding TX to RX as shown in
8-5-6-5

Mounting procedure

1.) Install the new parts in the reverse order of removal.
8-5-6-6

Functional Checkout Procedure

See
Section
4-3-1
4-3-2
4-3-6
4-3-7
4-3-8
4-3-9
PROPRIETARY TO GE
8
EVISION
Functional Test
Power On/Boot Up
Power Off/ Shutdown
B Mode Checks
Service Manual Direction 5308917-100, Section 8-6-3. Equipment passes all required
M Mode Controls
Color Flow Mode
Checks
Doppler Mode
Checks
Chapter 8 Replacement Procedures
LOGIQ P3 S
Tx conn board cable
Flex cable
Figure 8-79 on page 8-71
Debrief Script
tests and is ready for use.
