Rx64 - GE LOGIQ P3 PRO Service Manual

GE
D 5308917-100, R
IRECTION
5-2-2

RX64

• RX64: LOGIQ P3 Front End Processor board
• ADC: Analog/Digital converter
• OQX2: Beamform ASIC
• CHACOM: B/M/CFM/Dop signal processor ASIC
• FPIC FPGA: Front Process interface control
5-2-2-1 Description
This diagram describes the RX64 (Front Process) board. It resides below TX board (located at the
bottom layer).
The main function:
• Convertor 64 channels echo which is from preamp to digital signal.
• Focus the received RF signals by digital beamforming technology.
• Control CHACOM to acquire optimum image data.
5-14
PROPRIETARY TO GE
8
EVISION

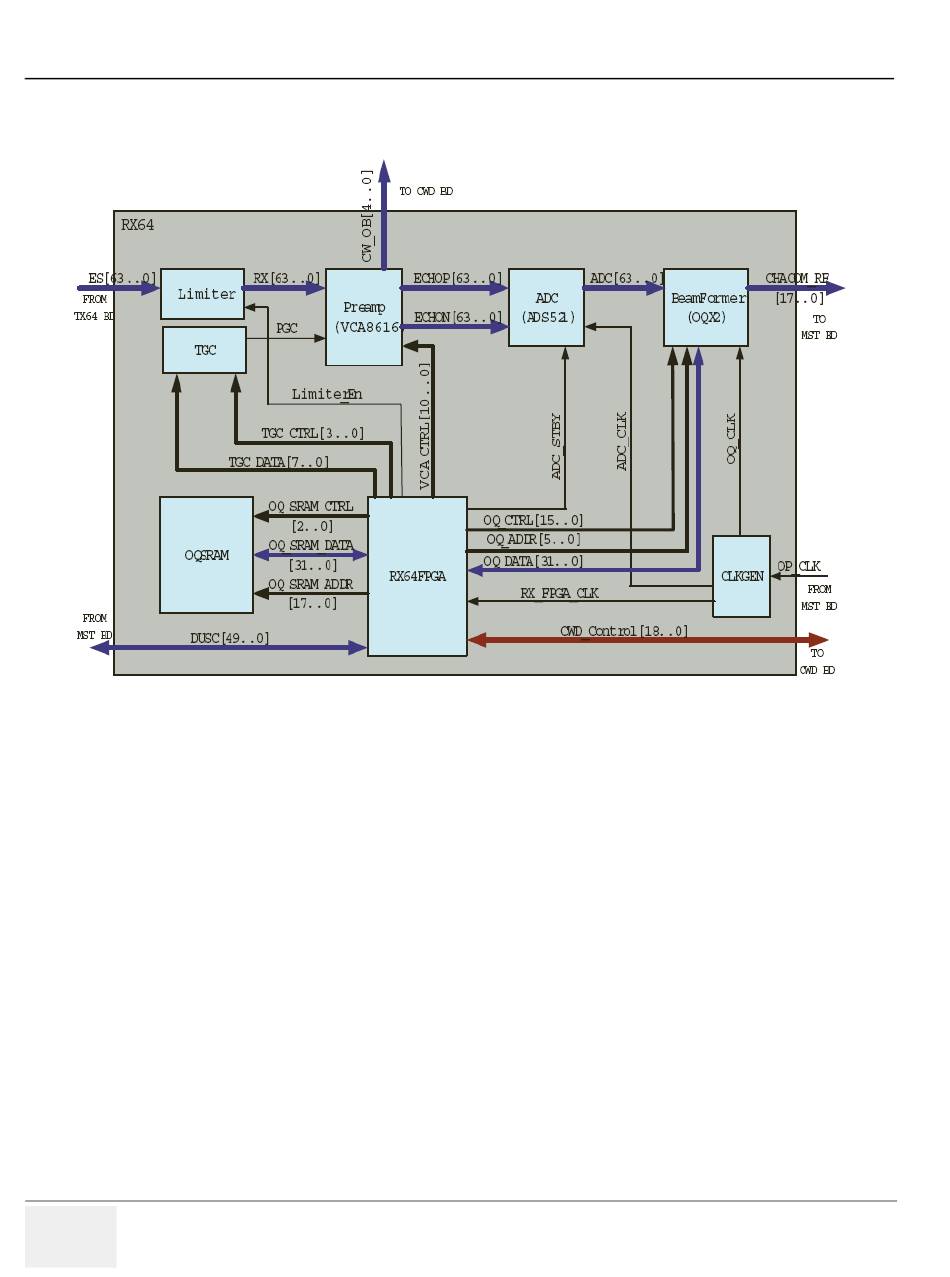

Figure 5-10 RX64 Block Diagram
Section 5-2 - PWA Assy Diagrams
LOGIQ P3 S M
ERVICE ANUAL
