Back-End Processor Power Down - Logiq P3 Bt10 - GE LOGIQ P3 PRO Service Manual

GE
D 5308917-100, R
IRECTION
3-5-2-2

Back-end Processor Power Down - LOGIQ P3 BT10

To power down the system:
1.) Press the Power On/Off switch at the front of the system.
2.) Thew System-Exit window is displayed.
3.) Using the Trackball or Select key, select Shutdown.
4.) The shutdown process takes a few seconds and is complete when the power status LED is turned
Amber color.
5.) Disconnect the probes. Clean or disinfect all probes as necessary. Store them in their shipping
cases to avoid damage.
3-12
PROPRIETARY TO GE
8
EVISION

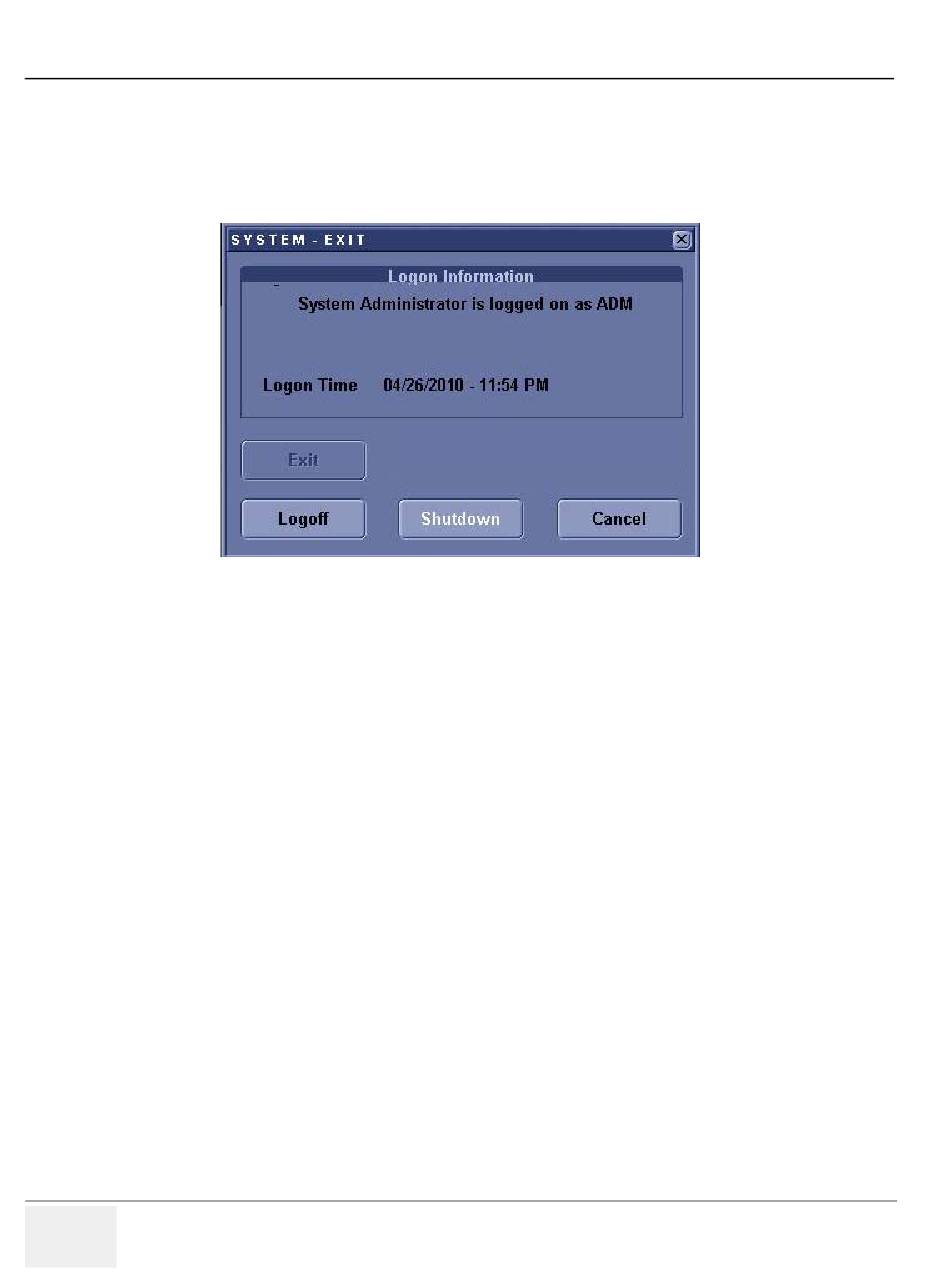

Figure 3-10 System Exit Window
Section 3-5 - Completing the Installation
LOGIQ P3 S M
ERVICE ANUAL
