Section 6-2

Monitor Adjustments

6-2-1

Adjustments Procedures

To adjust the brightness:
1. Contrast Indicator
2. Brightness Indicator
3. Dim Brightness Indicator
4. Light Button
5. Adjustment (-) Button
6. Toggle Button
7. Adjustment (+) Button
NOTE: Default Factory setting for Contrast & Bightness is 80 and Dim brightness 50 as shown in Fig A.
Dim brightness is the LCD lamp brightness control.
6-2-2

Monitor Calibration procedure.

1.Select Utility in A/N Keboard>Test patterns>Select the Brightness calibration and perform the monitor
calibration procedure as displayed in the monitor as shown in Fig B.
6-2
PROPRIETARY TO GE
8
EVISION
Fig. A

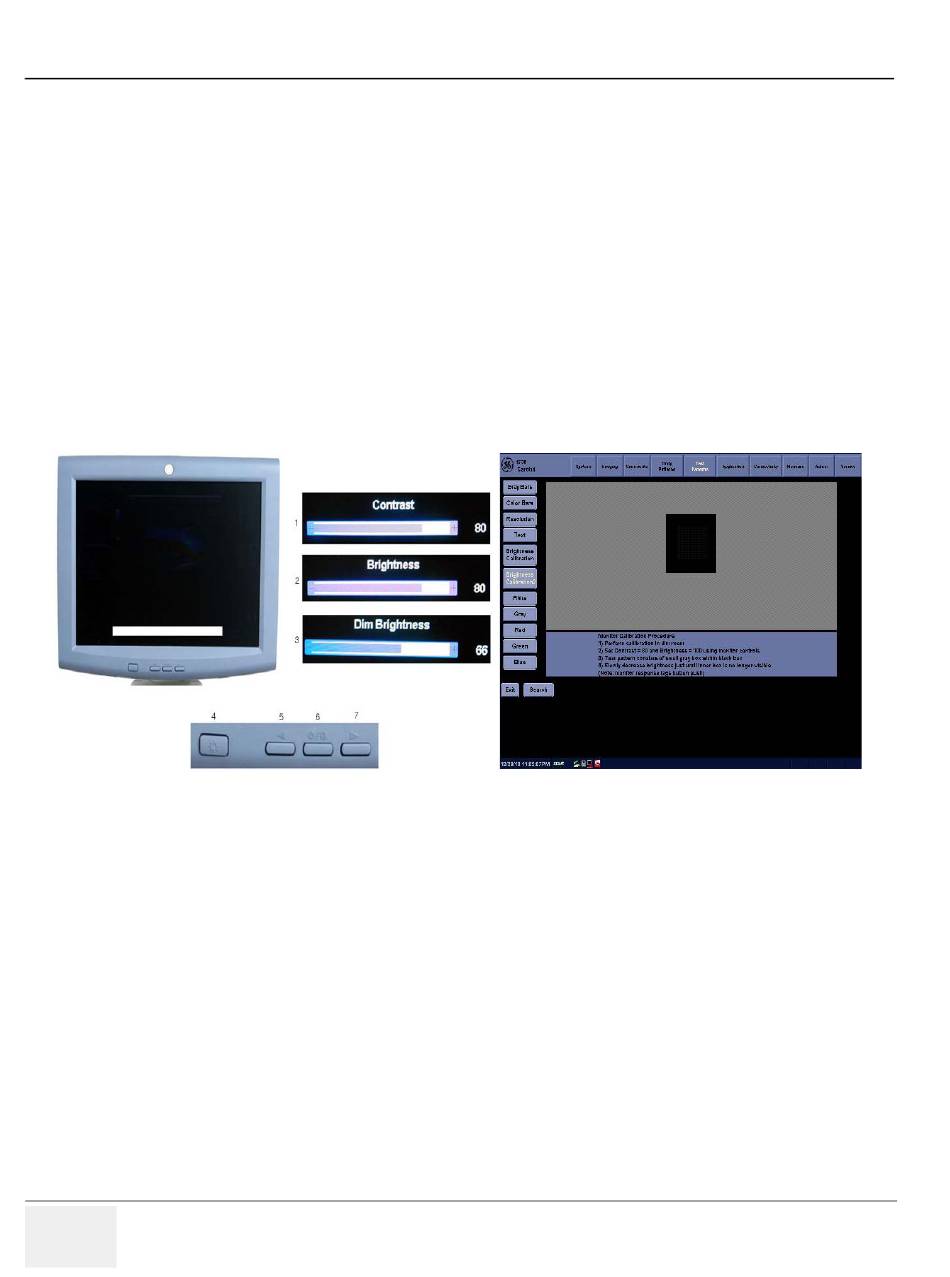

Figure 6-1 LCD Monitor
Section 6-2 - Monitor Adjustments
LOGIQ P3 S
ERVICE
Fig. B
