Section 7-3

USB Quick Save

7-3-1

Overview

There may be times when the customer or field engineer will want to directly save images into USB
memory. This is accomplished by saving individual Cine clips (moving images- avi format) or still images
(jpg format) directly to a USB memory disk by pressing a Print Key.
The P3 key is the factory default print key to accomplish the USB Quick Save. However, the default is
for the Image Area only or the customer may have customized the P3 Key function.
7-3-2

Check and Record the P3 Key Function

Check the function of the Print 3 Key in the event that the customer may have made some customized
settings.
1.) Click Utility on the keyboard.
2.) Select Connectivity from the Utilities Menu.
3.) Select the Buttons tab on the Connectivity screen.
4.) In the Physical Print Buttons field, select Print3.
The Connectivity/Buttons Screen will be displayed like the one shown in
P3 is the factory default USB Quick Save key. If it is not set to Image Area, proceed to step 5 to record
the customer's customized settings.
7-4
PROPRIETARY TO GE
8
EVISION

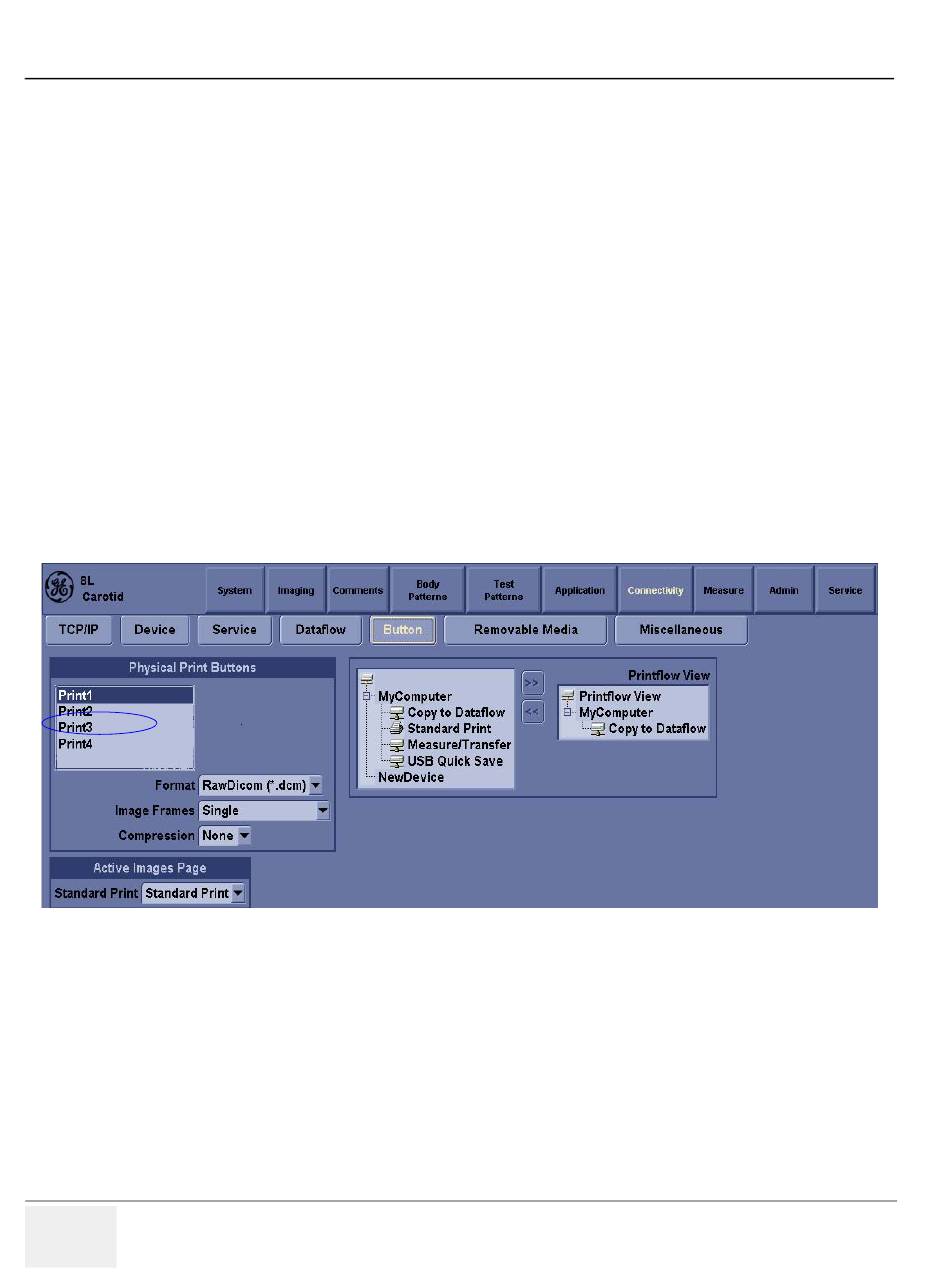

Figure 7-2 Buttons Set Up Screen
Section 7-3 - USB Quick Save
LOGIQ P3 S M
ERVICE ANUAL
Figure 7-2 on page 7-4 .
