10.)Connecting the Color printer HP Laser jet P2015/ HP Officejet Pro K550/K5400/4360/6940 to
the system: The USB Cable & power cable can be properly connected to the USB Ports & Power
Port in the Rear panel. Configure the printer from Config>Connectivity>Service>Standard print,
select the respective printer.
Power Cable
PROPRIETARY TO GE
8
EVISION
S-Video Cable in

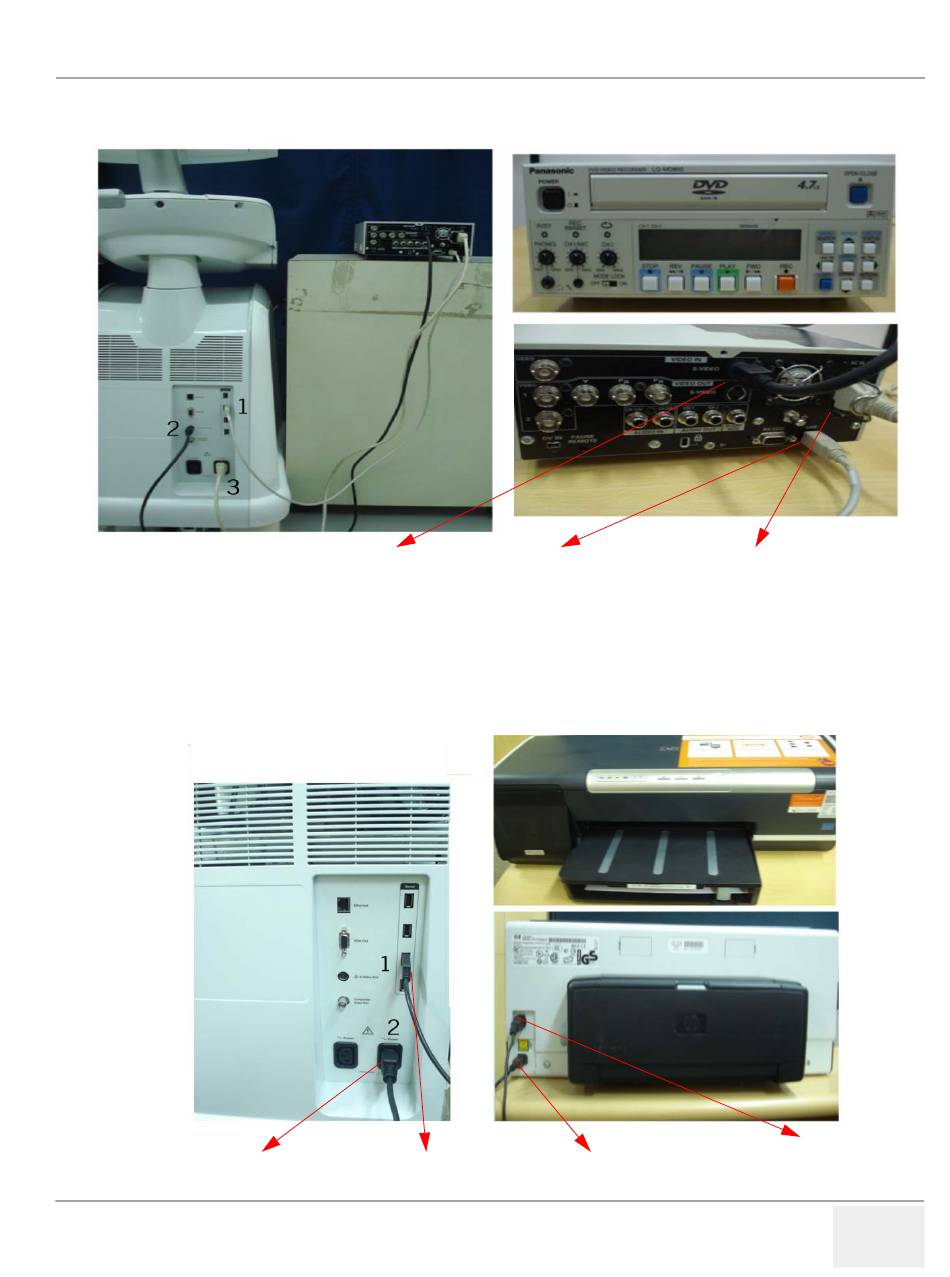

Figure 3-21 DVR Connection on the rear panel
USB Cable
Figure 3-22 Color Printer Connection on the rear panel
Chapter 3 Installation
USB Cable Power Cable
USB Cable
LOGIQ P3 S M
ERVICE ANUAL
Power cable
