DVD Drive
8-9-1 DVD Drive ( FRU P/N: 5312274 or 5371456 or 5399652 or 5460475/5504633) / DVD
Cover Lakshya (FRU P/N: 5310097)
This is a description on how to remove and replace the CD Tray Assembly.

Tools

8-9-1-1
• Common phillips screwdrivers
8-9-1-2

Needed Manpower

• 1person, 15 minutes
8-9-1-3

Preparations

Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-9-1-4

Removal Procedure

1) Loosen two screws and Remove the DVD tray assembly. Refer
2) Disconnect the cables connected to the DVD drive.
3) Remove the DVD drive from the DVD tary by removing the four screws holding it. Refer
on page 8-83
8-9-1-5

Mounting procedure

1.) Install the new parts in the reverse order of removal.
8-9-1-6

Functional Checkout Procedure

See
Section
4-3-1
4-3-2
PROPRIETARY TO GE
8

EVISION

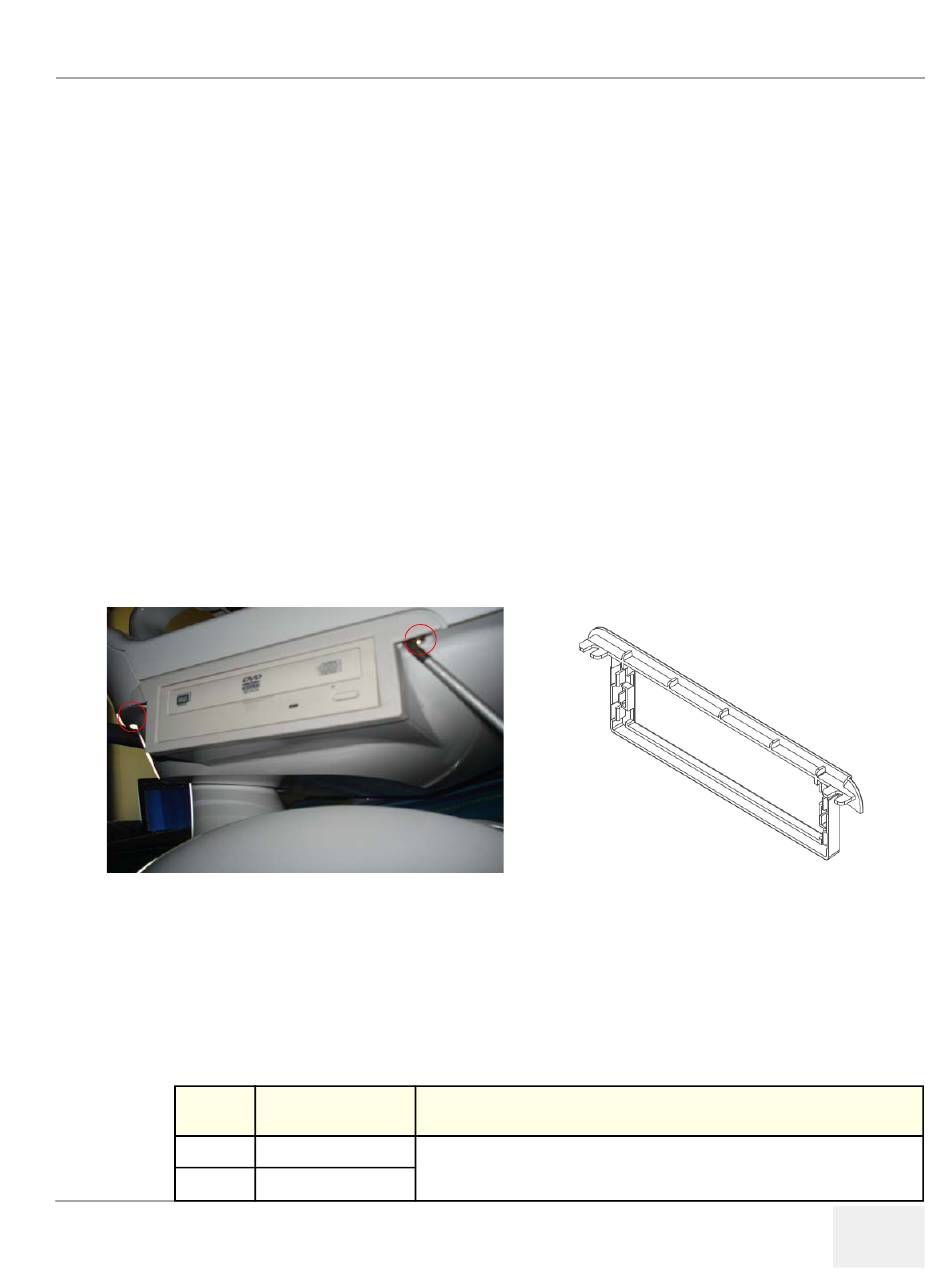

Figure 8-89 Removal CD drive Assembly
Functional Test
Power On/Boot Up
Power Off/ Shutdown
Chapter 8 Replacement Procedures
Debrief Script
Service Manual Direction 5308917-100, Section 8-10-1. Equipment passes all
required tests and is ready for use.
LOGIQ P3 S
ERVICE
Figure 8-89 on page 8-83
