4-3-8

Color Flow Mode Checks

4-3-8-1

Preparations

1.) Connect one of the probes listed in
to the System probe connector.
2.) Turn ON the scanner (if it isn't turned on already).
Primary Menu
Frequency
Spatial Filter
Angle Steer
Packet Size
PRF
Map
Threshold
Invert
Wall Filter
CF Mode
4-16
PROPRIETARY TO GE
8
EVISION

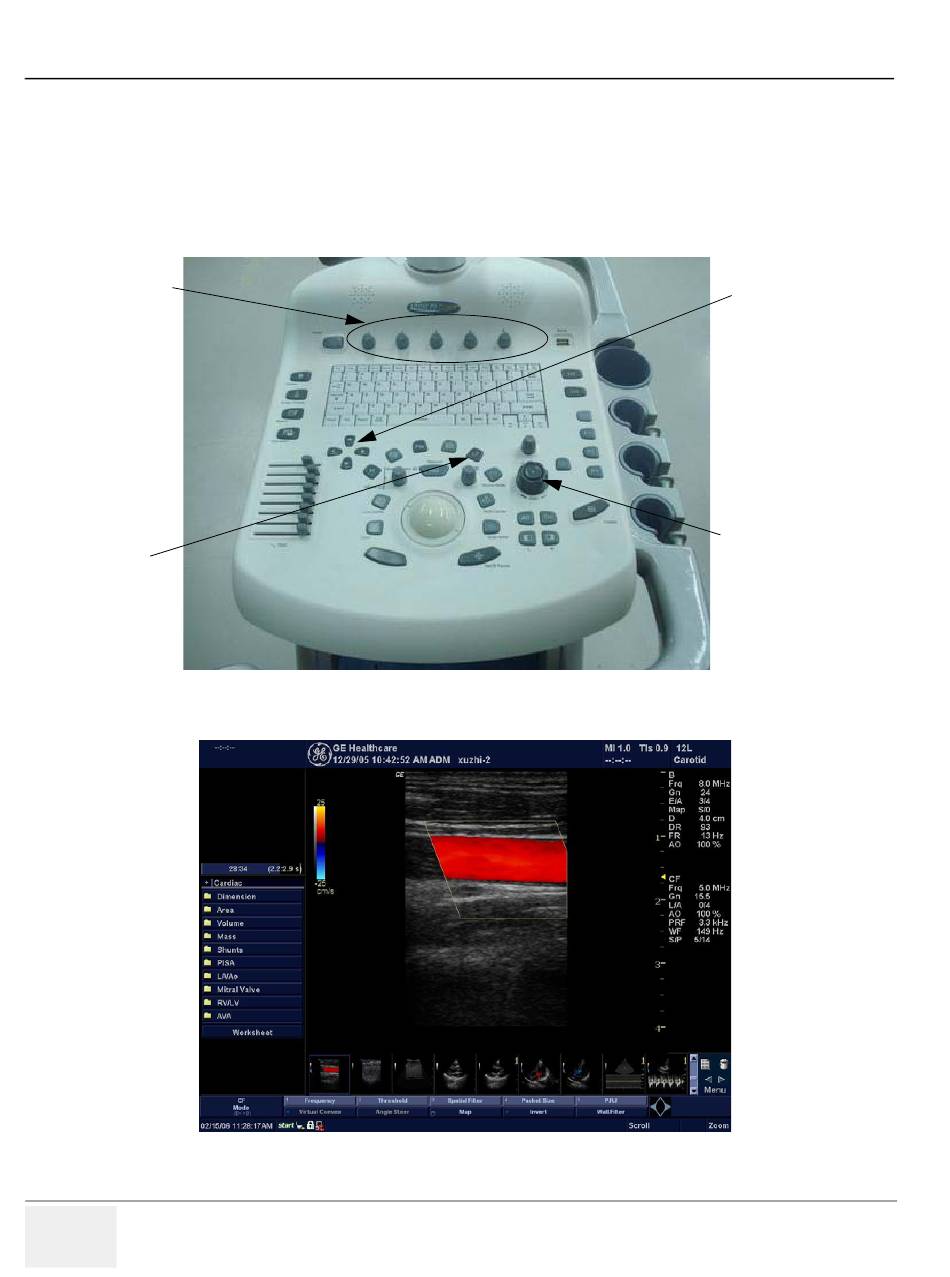

Figure 4-12 Controls available in Color Flow Mode
Figure 4-13 CFM Mode Screen Picture Example
Section 4-3 - General Procedure
3-6-6 "Available Probes" on page
LOGIQ P3 S M
ERVICE ANUAL
3-26, in Chapter 3 Installation
Secondary Menu
Baseline
Line Density
Flash Suppression
Transparency Map
Focus Position
Frame Average
Power Output
Gain
