Description; Tx64 - GE LOGIQ P3 PRO Service Manual

GE
D 5308917-100, R
IRECTION
5-2-3

TX64

• TX64: LOGIQ P3 Transmit board
• TPG2: Transmit Pulse Generator
• TMST: LOGIQ P3 Master board
• TXMX FPGA: Transmit and MUX controlling FPGA
5-2-3-1

Description

This diagram describes LOGIQ P3 TX64 board.
The main function:
• Generate the transmit pulse.
• Drive the Tx pulse with high voltage.
PROPRIETARY TO GE
8
EVISION

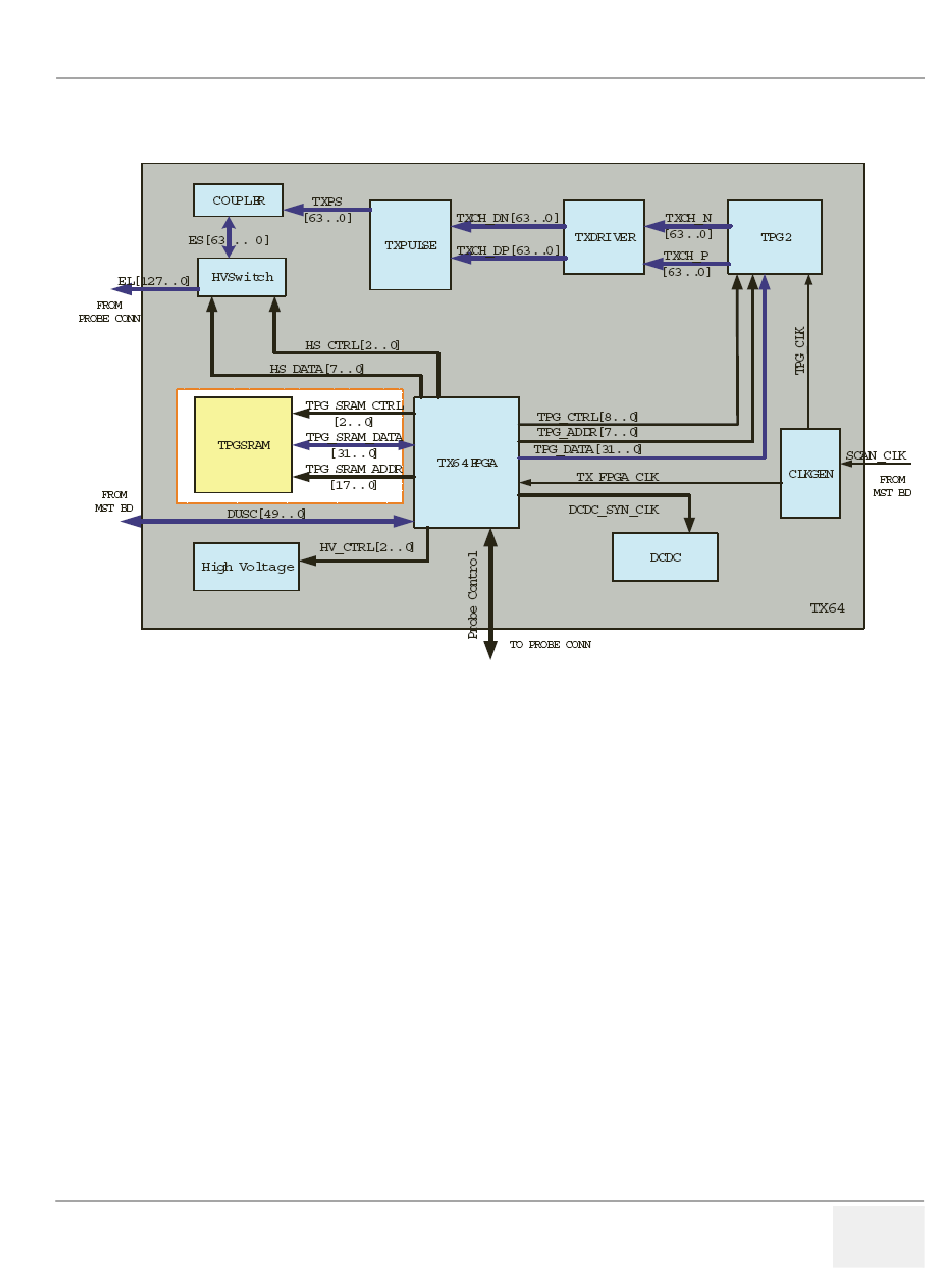

Figure 5-11 TX64 Block Diagram
