7-6-1-3

B Mode Low Image Quality

B Mode image quality is low!
Is irregular pattern found
by rod scan?
NO
Are low sensitivity and lack
of sensitivity found by rod
scan?
NO
Is the scanner set to the
proper configuration?
YES
Adjust the brightness of LCD display.
End
PROPRIETARY TO GE
8
EVISION
YES

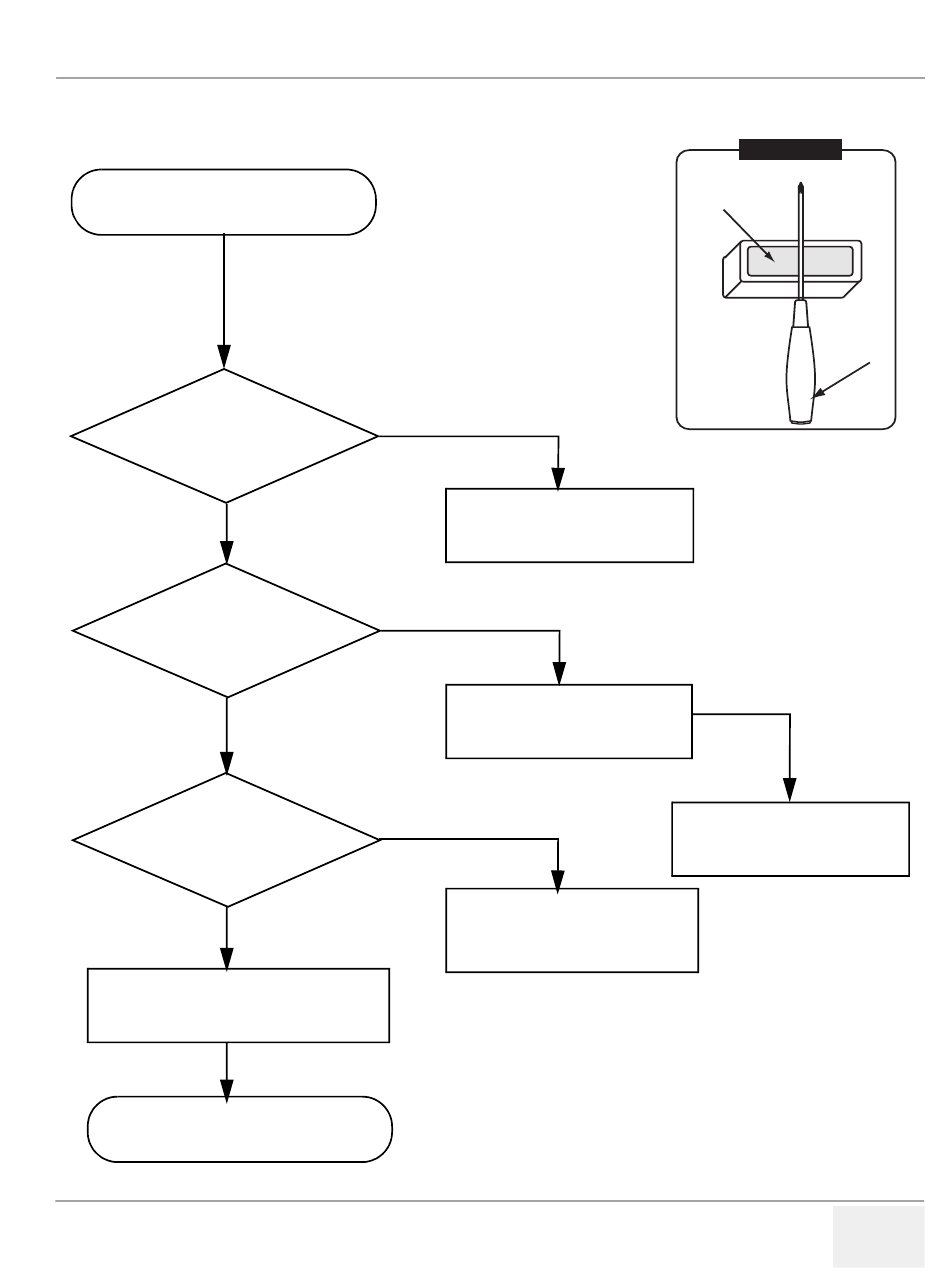

Figure 7-10 B Mode Low Image Quality
Chapter 7 Diagnostics/Troubleshooting
Reconnect the probe &
check.
YES
Check Conn Board,TX64,
TMST, RX64, refer to error
code list.
NO
Reset the system configuration as
default i.e reload the factory
defaults.
LOGIQ P3 S M
ERVICE
ROD SCAN
Transducer
Scan Area
Screw-
driver
YES
Replace failed board.
