11.)Connecting the external monitor to the system: The monitor must be properly connected using
the VGA port in the Rear panel.
Press Ctrl+Alt+V on the keyboard, a dialog box appears.
Select Intel(R) Dual Display Clone; check the Same display configuration driver on both display box
and select OK.
12.)Connecting USB Bluetooth Printers (LOGIQ P3 BT10): Connect one USB bluetooth dongle to
the LOGIQ P3 BT10 system and another USB bluetooth dongle to the HP printer and configure the
printer in the Utility screen.
NOTE: Please refer to the User manual of each peripheral for information needed by the user to
operate the system safely.
NOTE: For the printer, bluetooth supports approximately within 10 mts. line of sight.
NOTE: If the software is reloaded, you must pair between the bluetooth dongles (printer bluetooth
dongle and th system dongle).
3-24
PROPRIETARY TO GE
8
EVISION

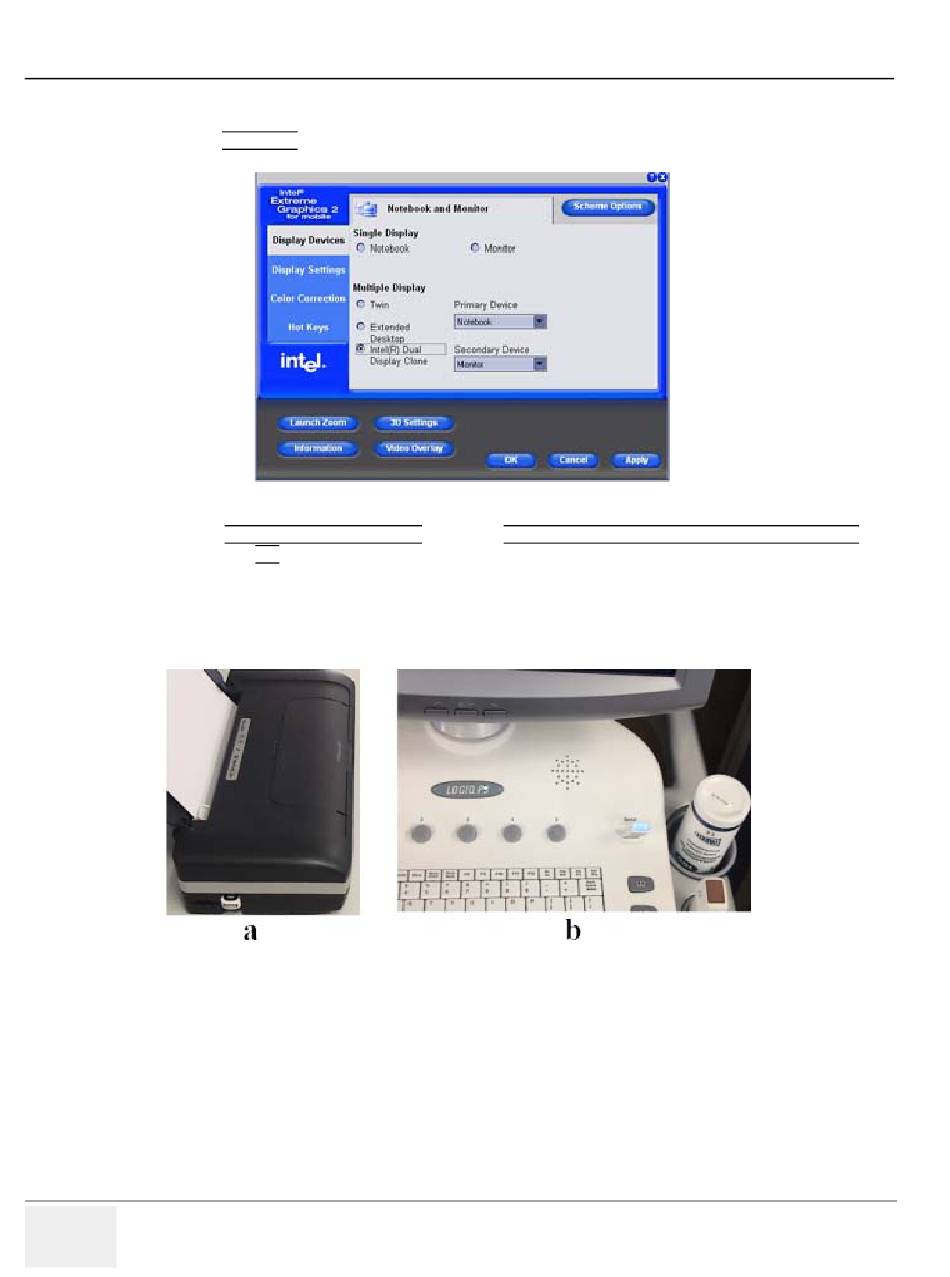

Figure 3-23 Graphics Controller Properties
Figure 3-24 LOGIQ P3 BT10 Printer Connection
Section 3-6 - System Configuration
